WEPT
SIGNRL
GENERRTOR
AHPLIFIER
Htl-URVE SOURCE

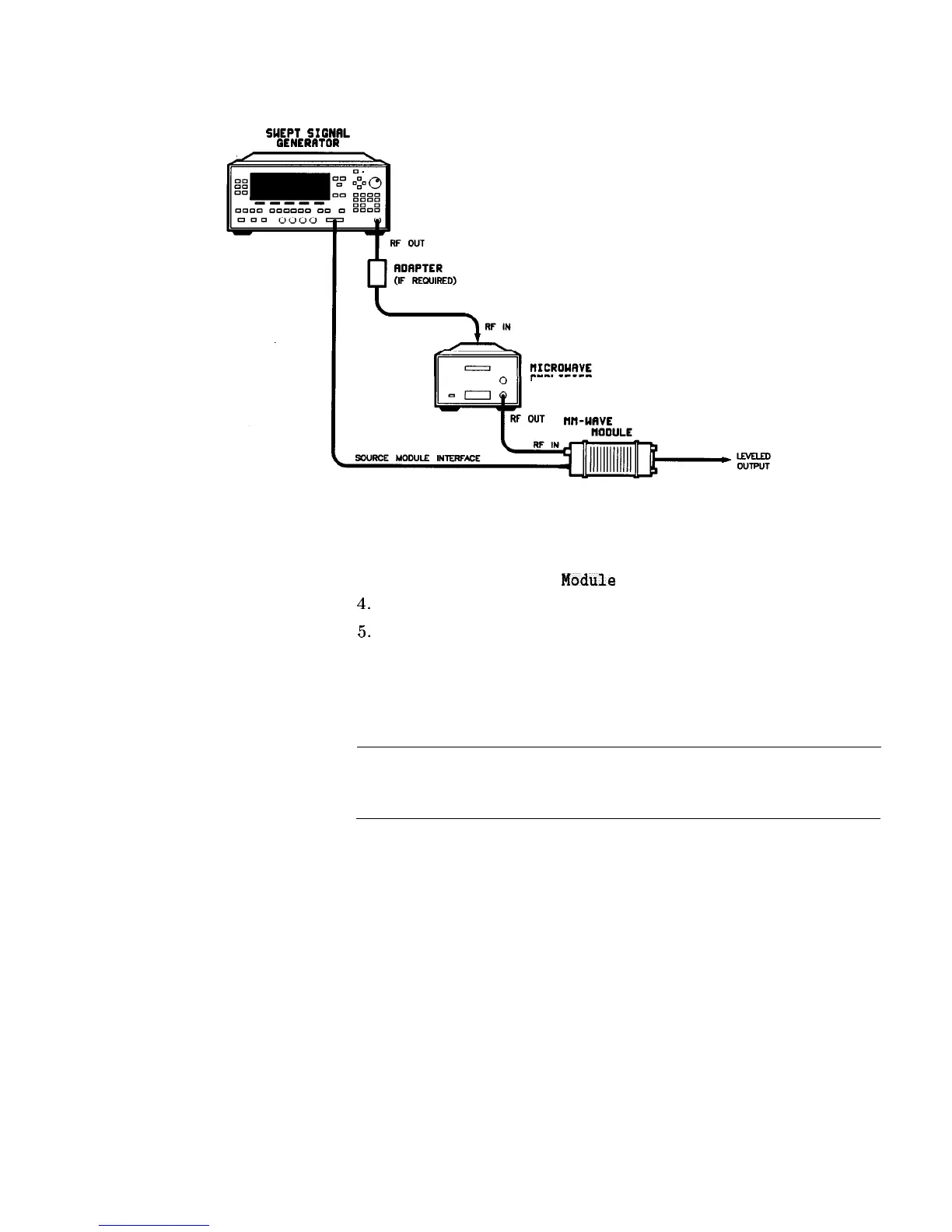

Figure l-15. MM-wave Source Module Leveling Using a Microwave Amplifier
1. Set up the equipment as shown.
2. Refer to menu map 1.
3. Select Leveling Point
Hodule
.
4.
Select Module Menu.
5.
Select Module Select Auto or Front or Rear, depending on
where the interface connection is made.
All of the ALC data necessary to communicate properly with the
swept signal generator is exchanged via the SOURCE MODULE
INTERFACE.
Hint
To obtain flatness corrected power, refer to “Creating and Applying
the User Flatness Correction Array” in the “Optimizing Swept Signal
Generator Performance” section.
Getting Started Advanced l-29
