Installing interconnect modulesInstalling interconnect modules
There are six single-wide interconnect bays in the frame. Installation in the interconnect bays depends on the type of mezzanine card
installed in the compute module and in which mezzanine slot the mezzanine card was installed.
IMPORTANT: IMPORTANT: If the mezzanine card is not installed properly or the interconnect module installation does not coincide
with the mezzanine card installation, the ports on the interconnect module will not function.
NOTE: NOTE: For more information on how and where to install mezzanine cards, see the compute module user guide or the
system configuration guide.
ProcedureProcedure
1. Review the interconnect mapping before selecting the ICM bay to install the interconnect module.

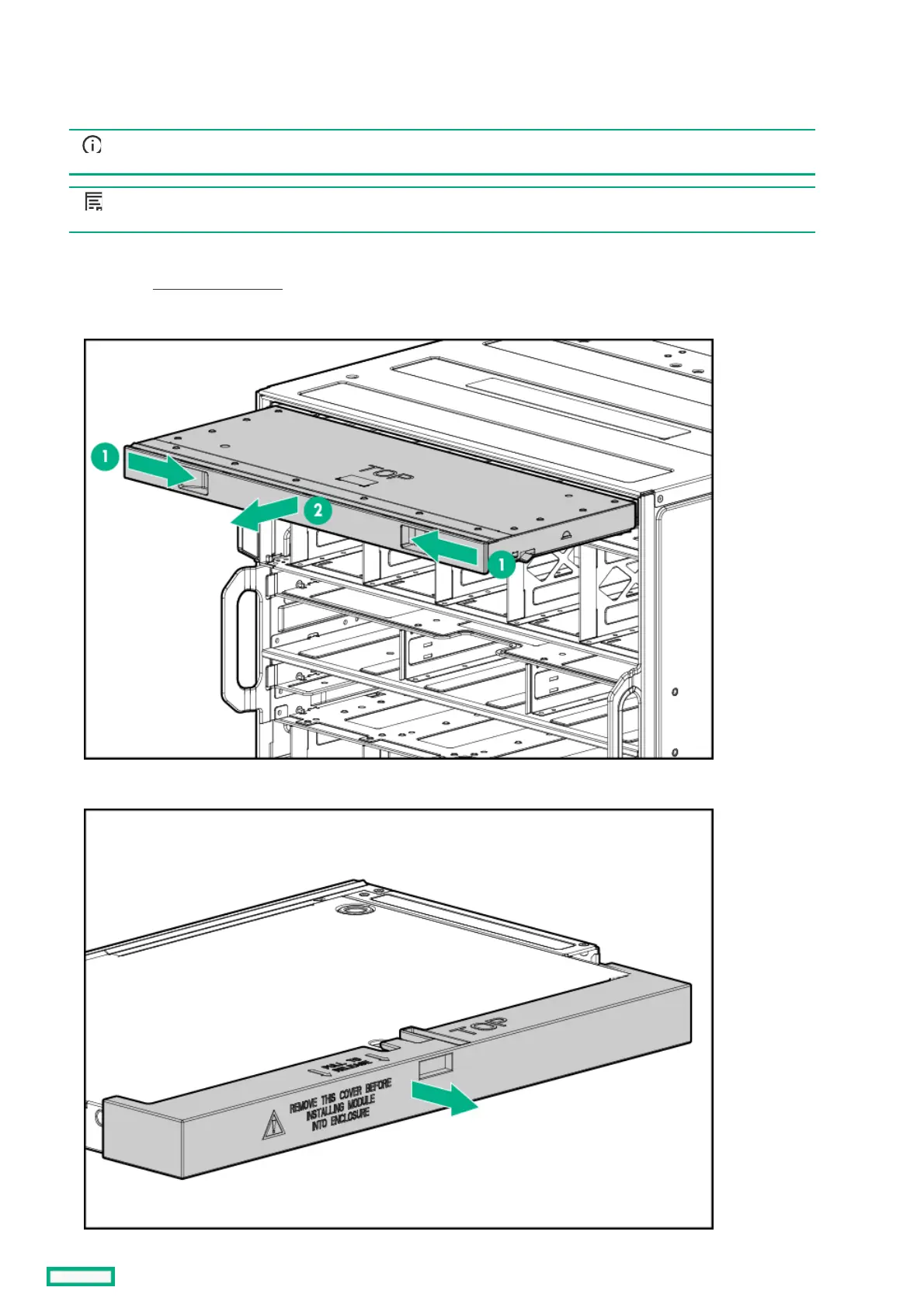

2. If installed, remove the interconnect blank.
3. Remove the interconnect module end cap.
4. Install the interconnect module, and close the release lever.
Installing interconnect modules 100

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
