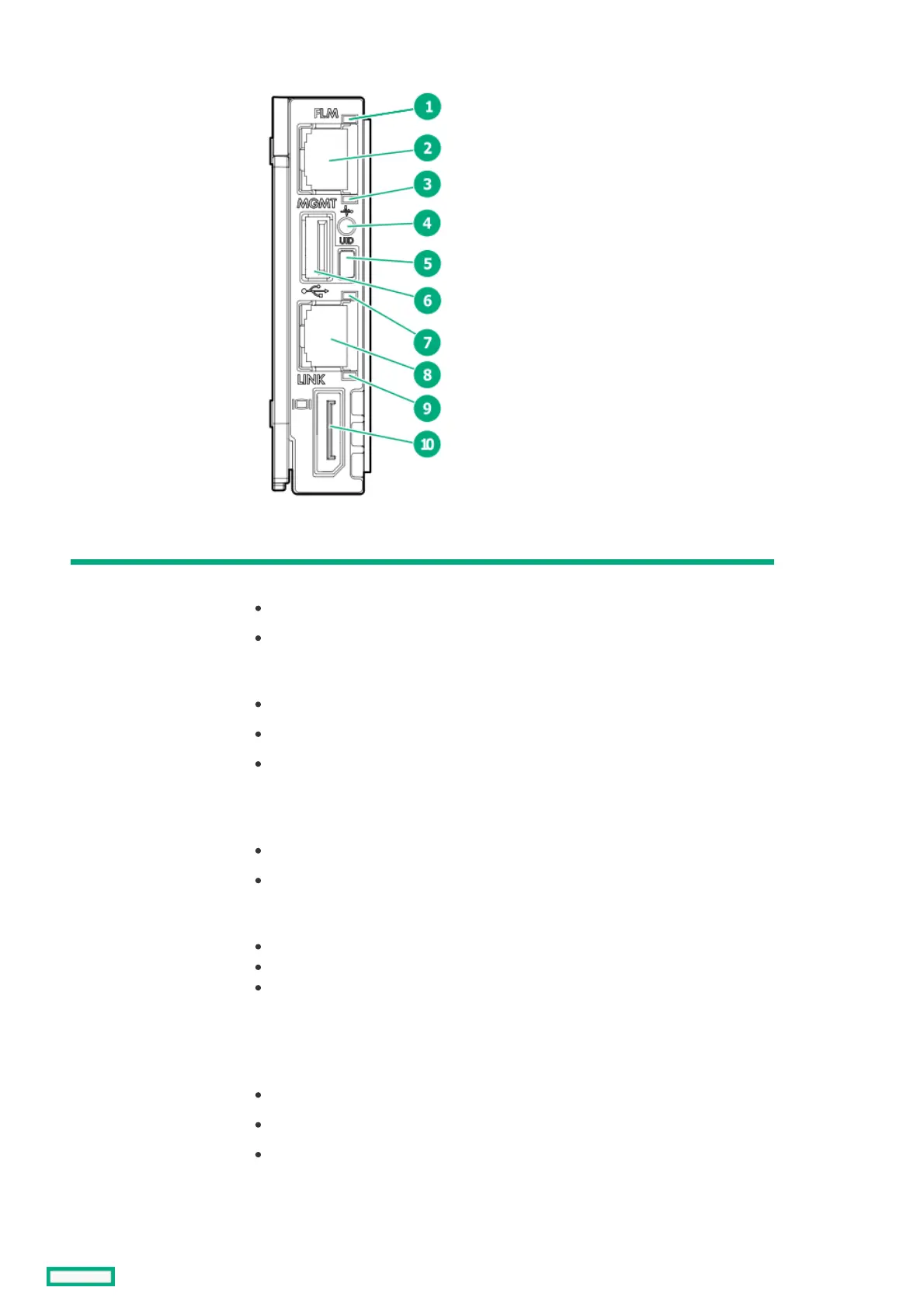

HPE Synergy Frame Link Module components and LEDsHPE Synergy Frame Link Module components and LEDs
ItemItem DescriptionDescription FunctionFunction
1 MGMT port activity
LED
Reports MGMT port activity:
Flashing green = Activity on the MGMT port
Off = No activity on the MGMT port
2 MGMT port A 10GBASE-T RJ45 connector that provides the following functions:
Provides a management uplink to the management network.
Automatically negotiates speed to 10GbE or 1GbE based on the connection.
Provides a data connection to the data network when an Image Streamer
management appliance is installed in the frame.
3 MGMT port
connectivity LED
Reports MGMT port connectivity:
Solid green = MGMT port is connected.
Off = MGMT port is not connected.
4 Health LED Provides the health status of the frame link module.
Solid green = Normal operation
Flashing amber = Warning
Flashing red = Critical error
If the Health LED indicates a warning or a critical error, connect to HPE OneView or
to the HPE Synergy Console for more information and troubleshooting assistance.
5 UID button / LED Toggles the UID LED on or off.
Solid blue = Activated
Off = Deactivated
Flashing blue = Firmware upgrade is in progress on the frame link module.
When turned on, the frame UID LED on the front panel also turns on. This allows
identification of the frame from the front or rear.
Do not remove either frame link module while the UID LED is flashing.
