Measuring with the rack templateMeasuring with the rack template

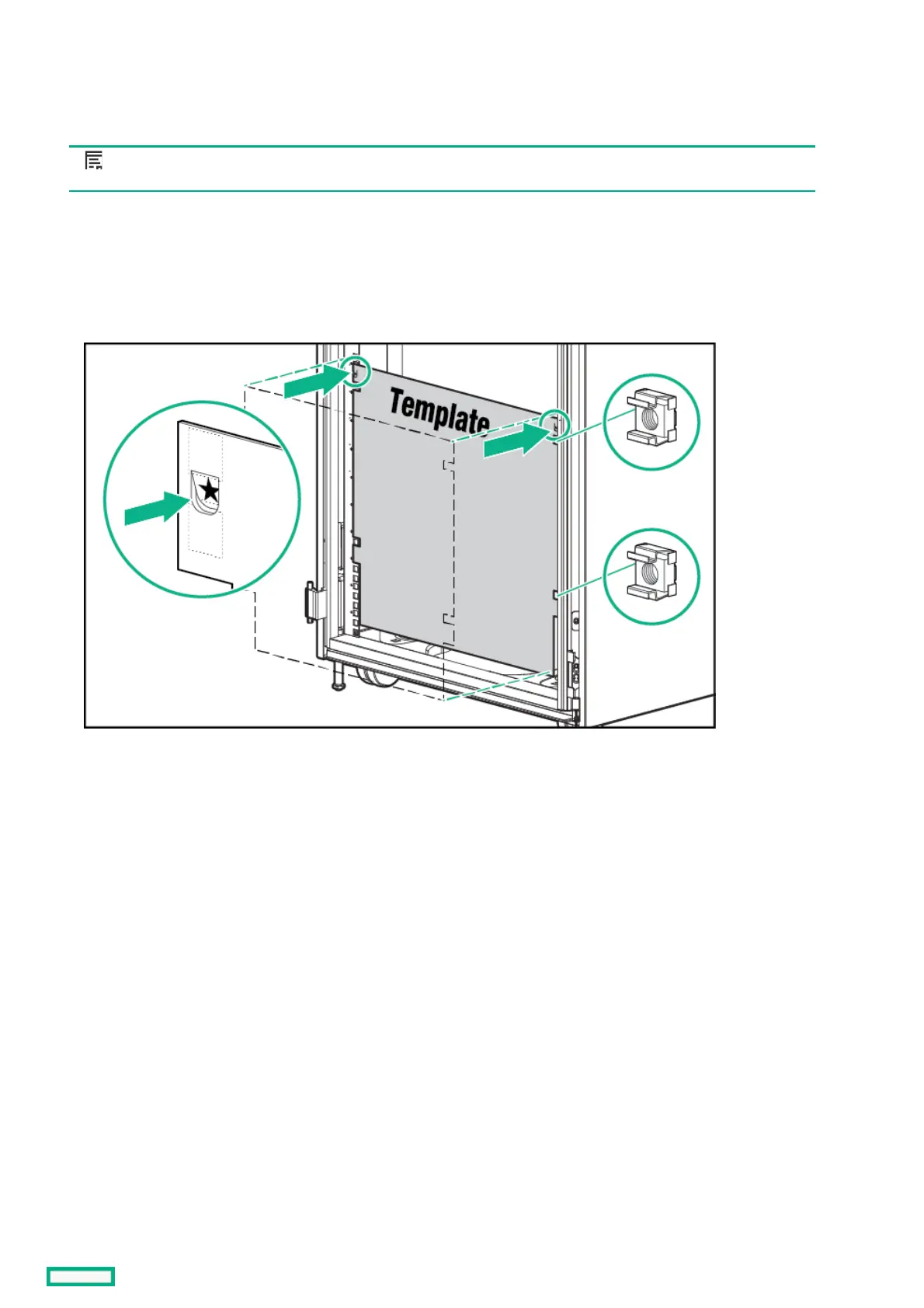

The HPE Synergy 12000 Frame Rack Template ships with the frame. The rack template provides detailed instructions on where to
position the frame and rack rails, and where to install the cage or clip nuts. Each frame kit includes the rack rails recommended for that
frame.
NOTE: NOTE: Four cage nuts and four clip nuts are included with the frame. Always use cage nuts in racks with square holes.
Always use clip nuts in racks with round holes.
When installing multiple frames, install the rack rails and cage nuts for one frame, and then install the frame. Repeat for each additional
frame.
ProcedureProcedure
1. Install lower cage nuts (left and right) in the front of the rack at the bottom of the fourth U (10 holes up on the template).
2. Install the upper cage nuts (left and right) in the front of the rack at the bottom of the tenth U (28 holes up on the template).
3. Install the rack rails.
Measuring with the rack template 72

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
