HP HPE Synergy 12000 Frame User Manual

Installing a device bay shelfInstalling a device bay shelf

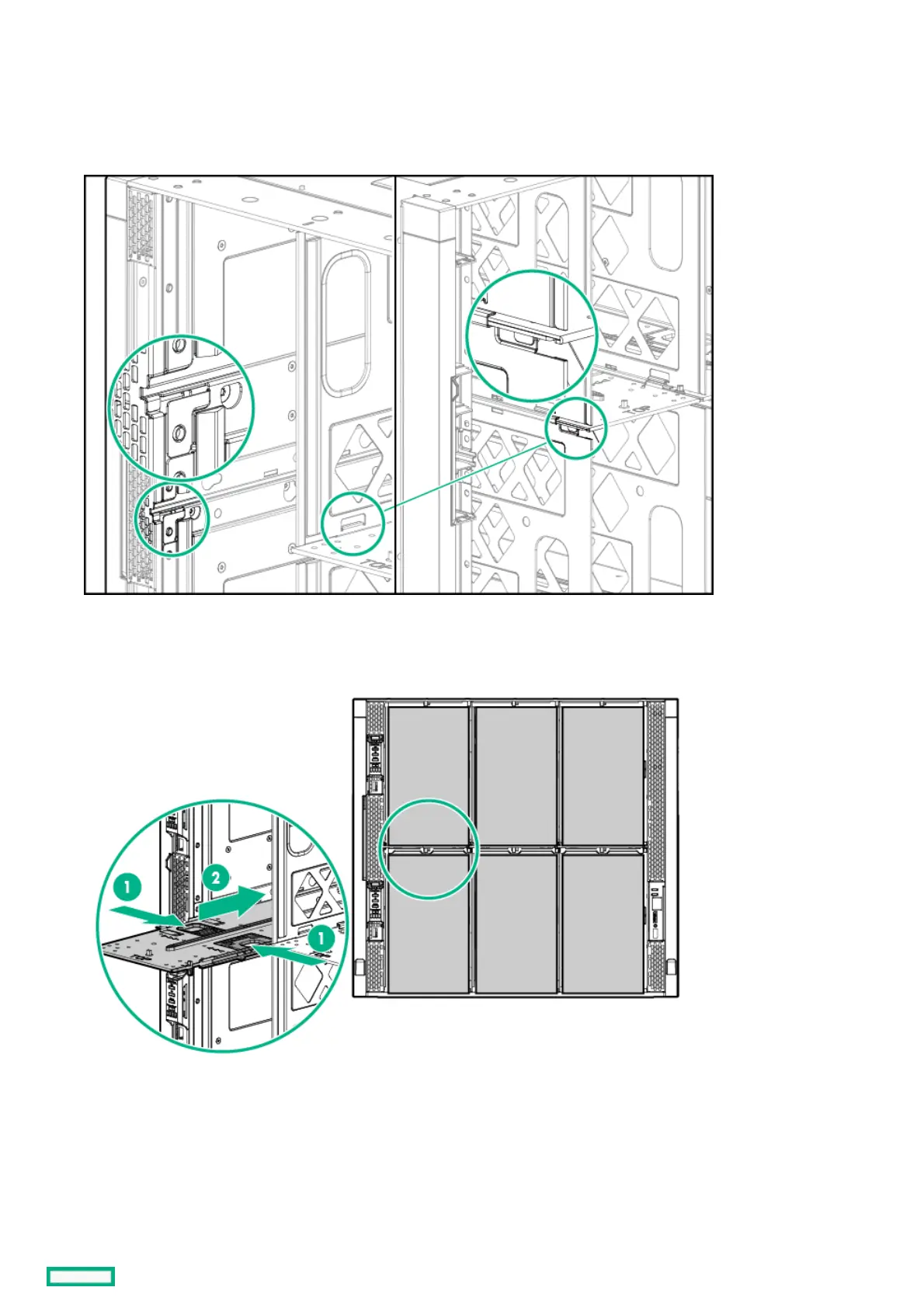

The frame has a slot and notch on the device bay walls that is used to guide the shelf when inserted.
ProcedureProcedure
1. Locate the slot and notch shelf guides.
2. Press and hold the latches of the removable shelf and insert into the device bay using the shelf guides.
3. When the shelf is fully inserted, release the latches to lock the shelf in place.
Installing a device bay shelf 84

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
