Installing the DC power grounding kit (no bracket)Installing the DC power grounding kit (no bracket)
For clarity, the rack is not shown in the images of this procedure.
PrerequisitesPrerequisites
The following tools are required to complete this procedure:
T-30 Torx screwdriver
8 mm socket wrench
ProcedureProcedure

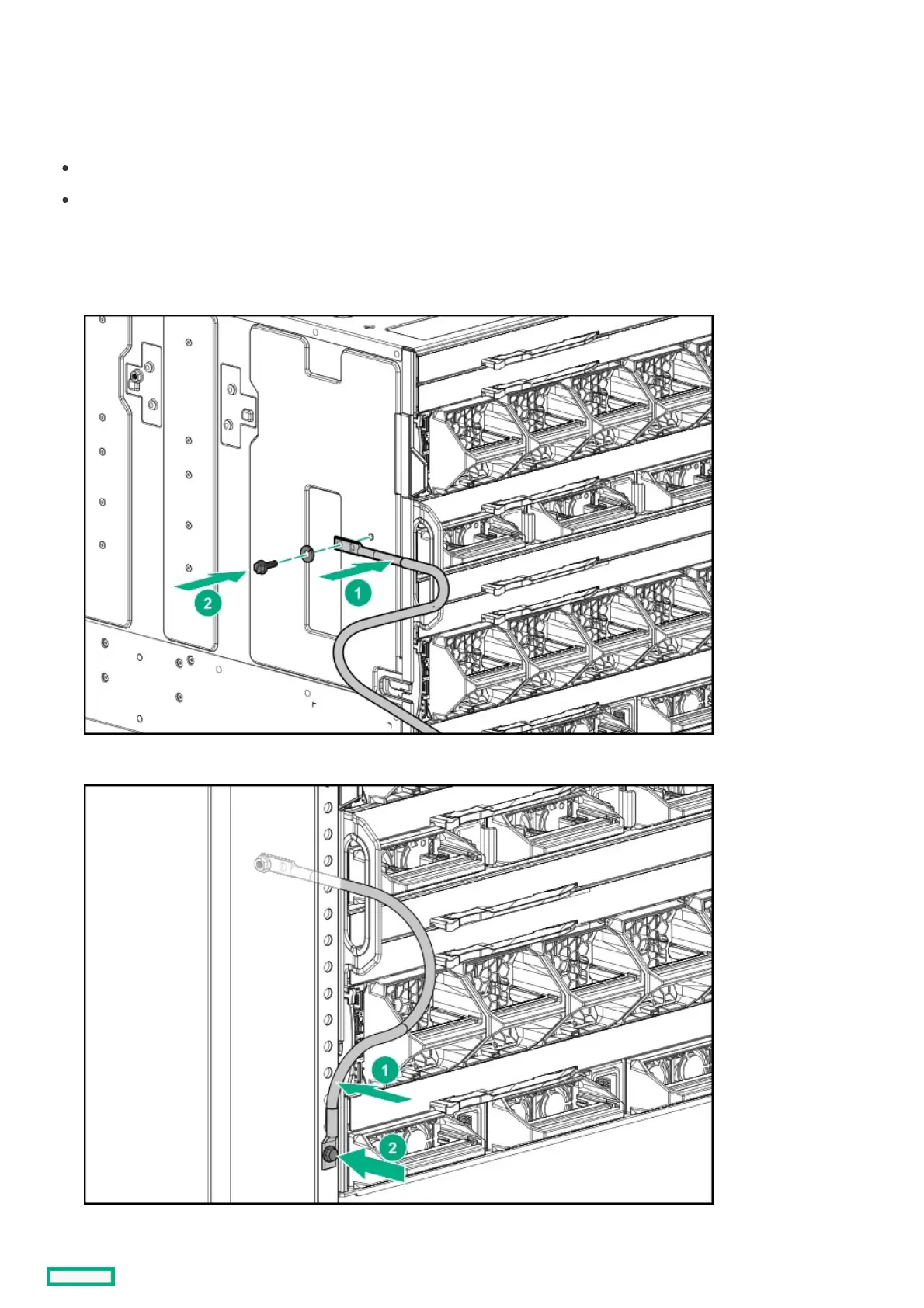

1. Using one hex thread-forming screw and lock washer, connect the grounding cable to the frame.
Tighten the screw to 15lb-in of torque.
2. Using the screw supplied with the rack, connect the grounding cable to the grounding rail.
Installing the DC power grounding kit (no bracket) 117

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
