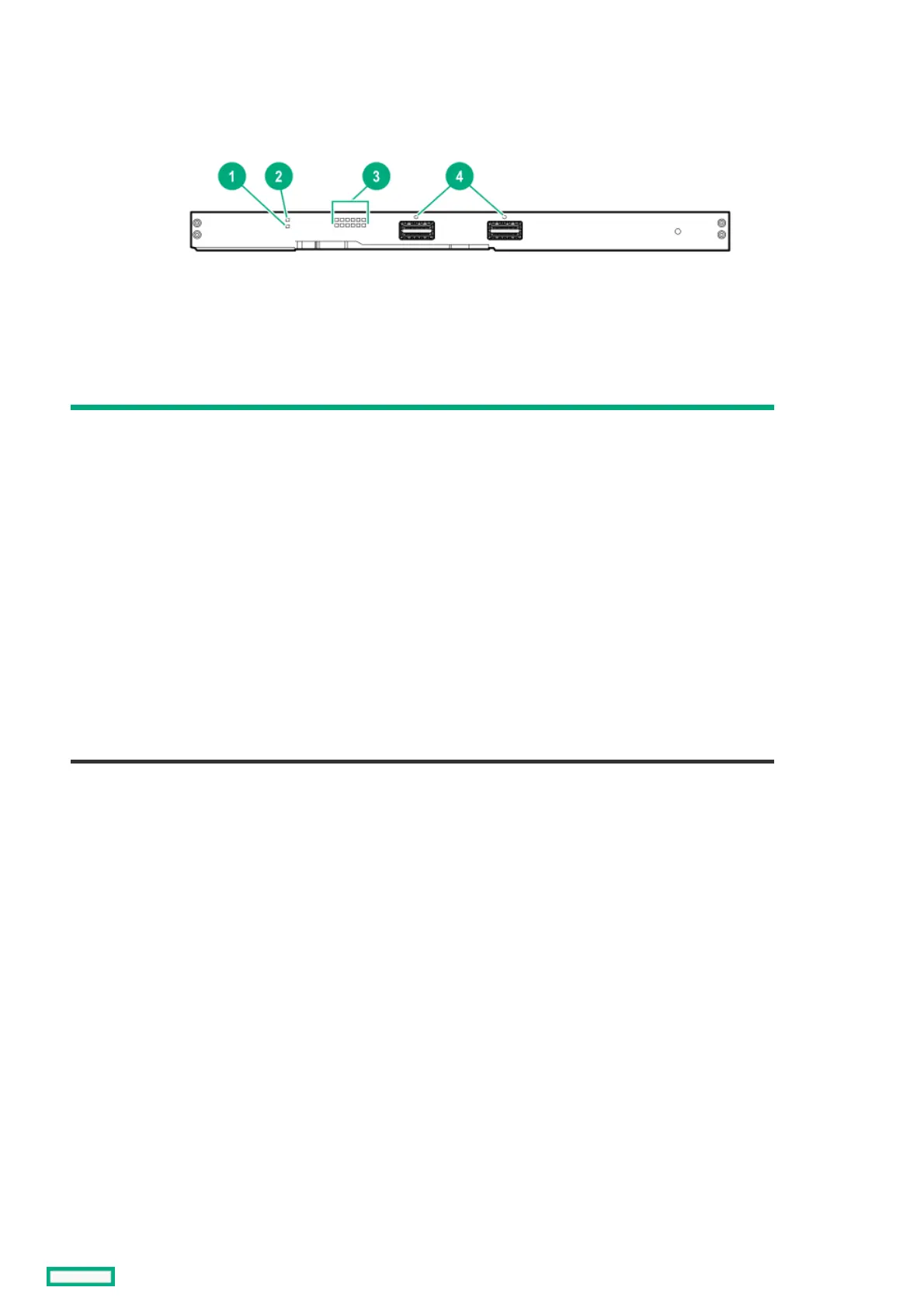

HPE Synergy 50Gb Interconnect Link Module LEDs and buttonsHPE Synergy 50Gb Interconnect Link Module LEDs and buttons
ItemItem DescriptionDescription StatusStatus
1 Health LED Solid green = Normal
Off = No power present
Flashing amber = A fault condition exists
2 UID LED Solid blue = Maintenance is required
3 Server link LEDs Solid amber = 25Gb link
Solid orange = 50Gb link
Off = No link
4 Interconnect link port LEDs Solid green = Port connected from the HPE Synergy 50Gb Interconnect
Link Module to HPE Virtual Connect SE 100Gb F32 Module.
Solid red = An error condition exists
Off = Port not connected from the HPE Synergy 50Gb Interconnect Link
Module to HPE Virtual Connect SE 100Gb F32 Module
HPE Synergy 50Gb Interconnect Link Module LEDs and buttons 53

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
