HP HPE Synergy 12000 Frame User Manual

Interconnect port mappingInterconnect port mapping

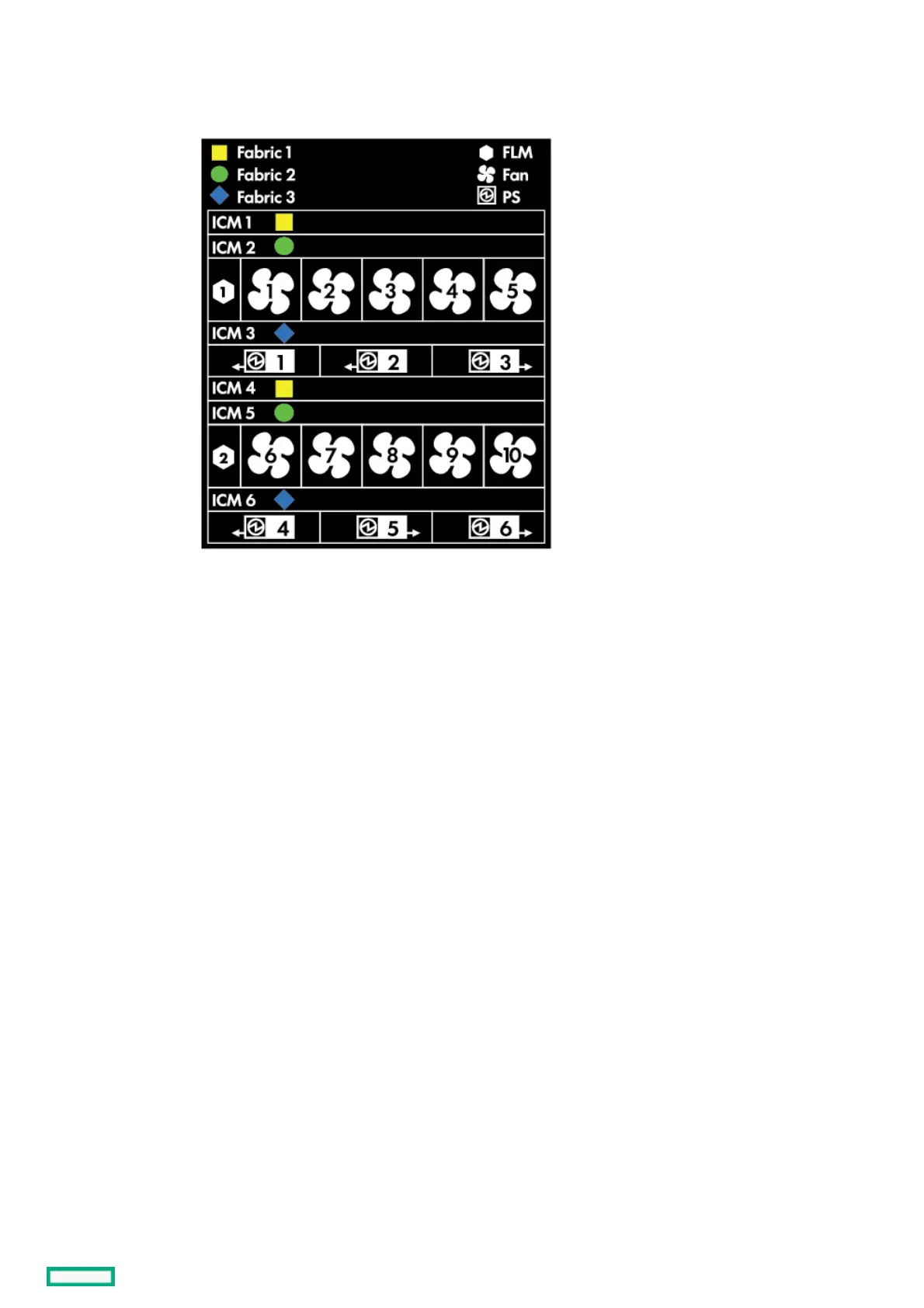

The following compute module device bays map to the interconnect module fabrics. This information is located on the frame pull tabs.
The location of a mezzanine option in the compute module dictates the location of the corresponding interconnect module in the rear of
the frame.
Interconnect port mapping 107

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
