Installing a full-height Installing a full-height compute modulecompute module
The HPE Synergy 12000 Frame ships with three device bay shelves installed to support a 12 half-height compute module configuration.
To install a full-height compute module, remove the device bay shelves and corresponding blanks.
ProcedureProcedure

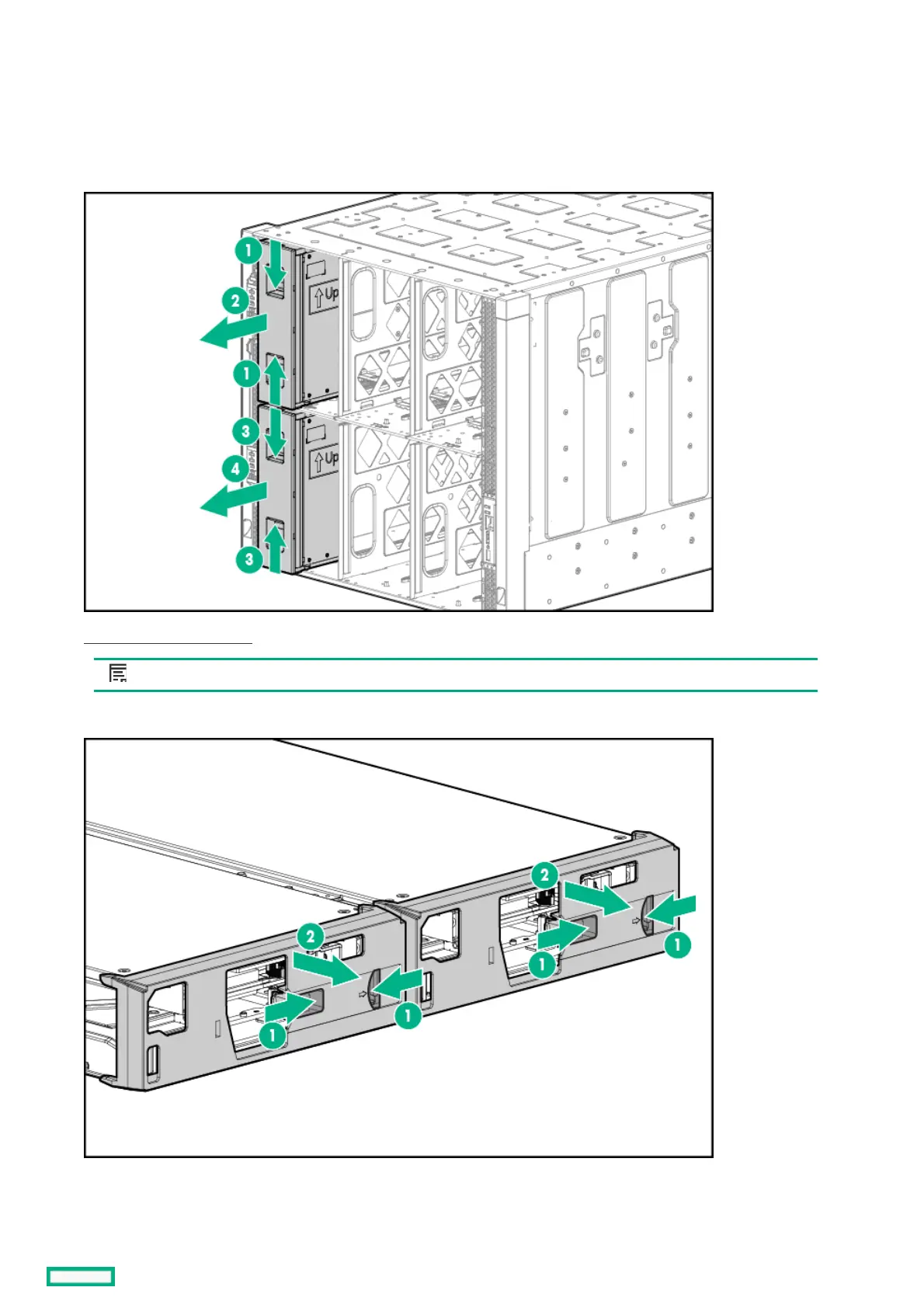

1. Remove the blanks.
2. Remove the device bay shelf.
NOTE: NOTE: Keep the compute module end caps, blanks, and device bay shelves for future use.
3. Remove the compute module end cap.
4. Prepare the compute module for installation by opening the compute module handle.
Installing a full-height compute module 90

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
