Installing the rack rails for a round-hole rackInstalling the rack rails for a round-hole rack

ProcedureProcedure

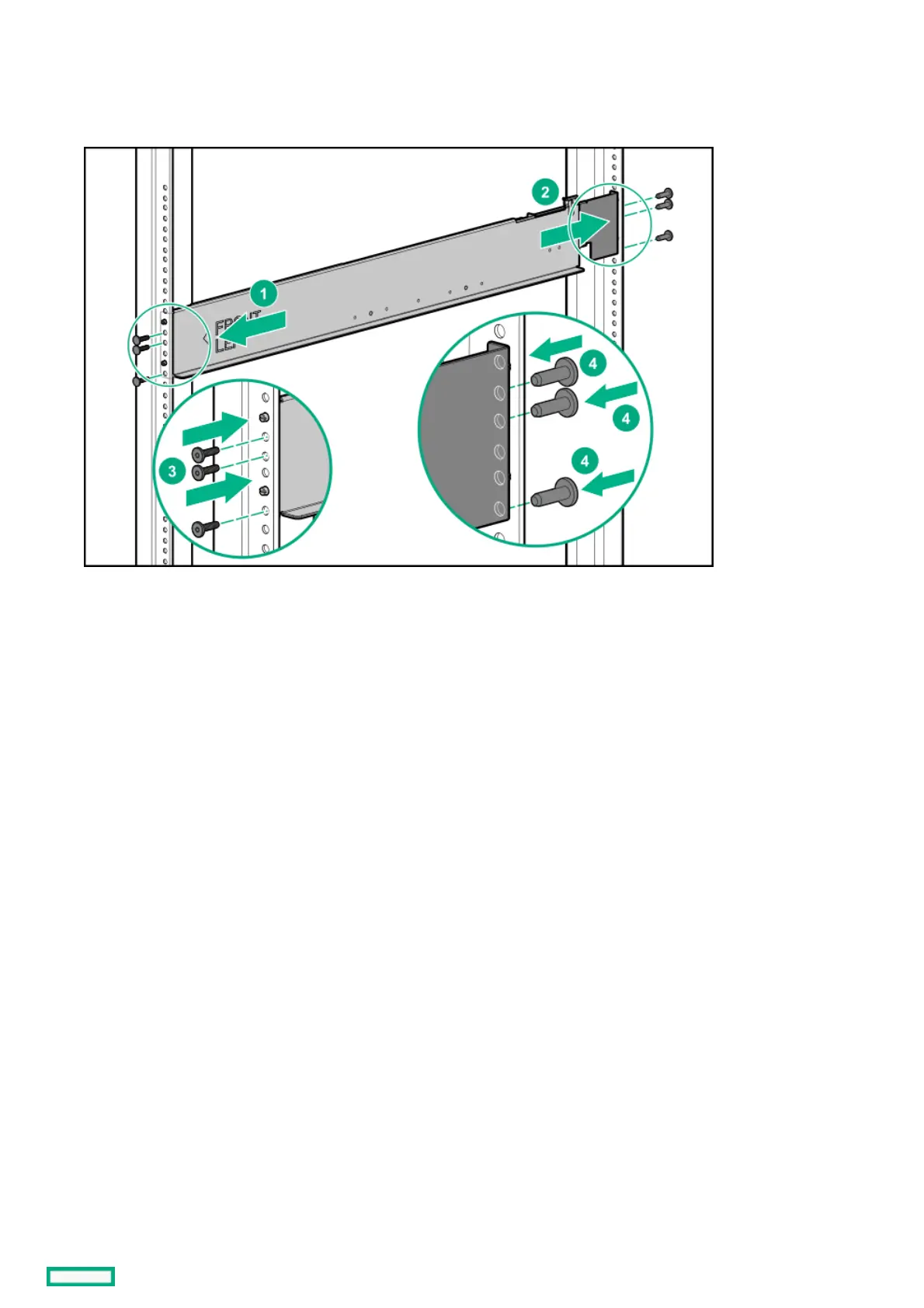

1. Align and install the rails in the rack.

2. Repeat the procedure for the other rail.

To remove the rails, reverse the installation procedure.

Installing the rack rails for a round-hole rack 75
