Device bay partitionsDevice bay partitions
Vertical Vertical frameframe partitions partitions
There are two vertical partitions between device bays in the frame. These nonremovable partitions provide structural integrity to the
frame as well as mechanical attach points for the horizontal shelf that divide a full-height bay into two half-height bays.
Up to six full-height device modules can be installed in a frame.

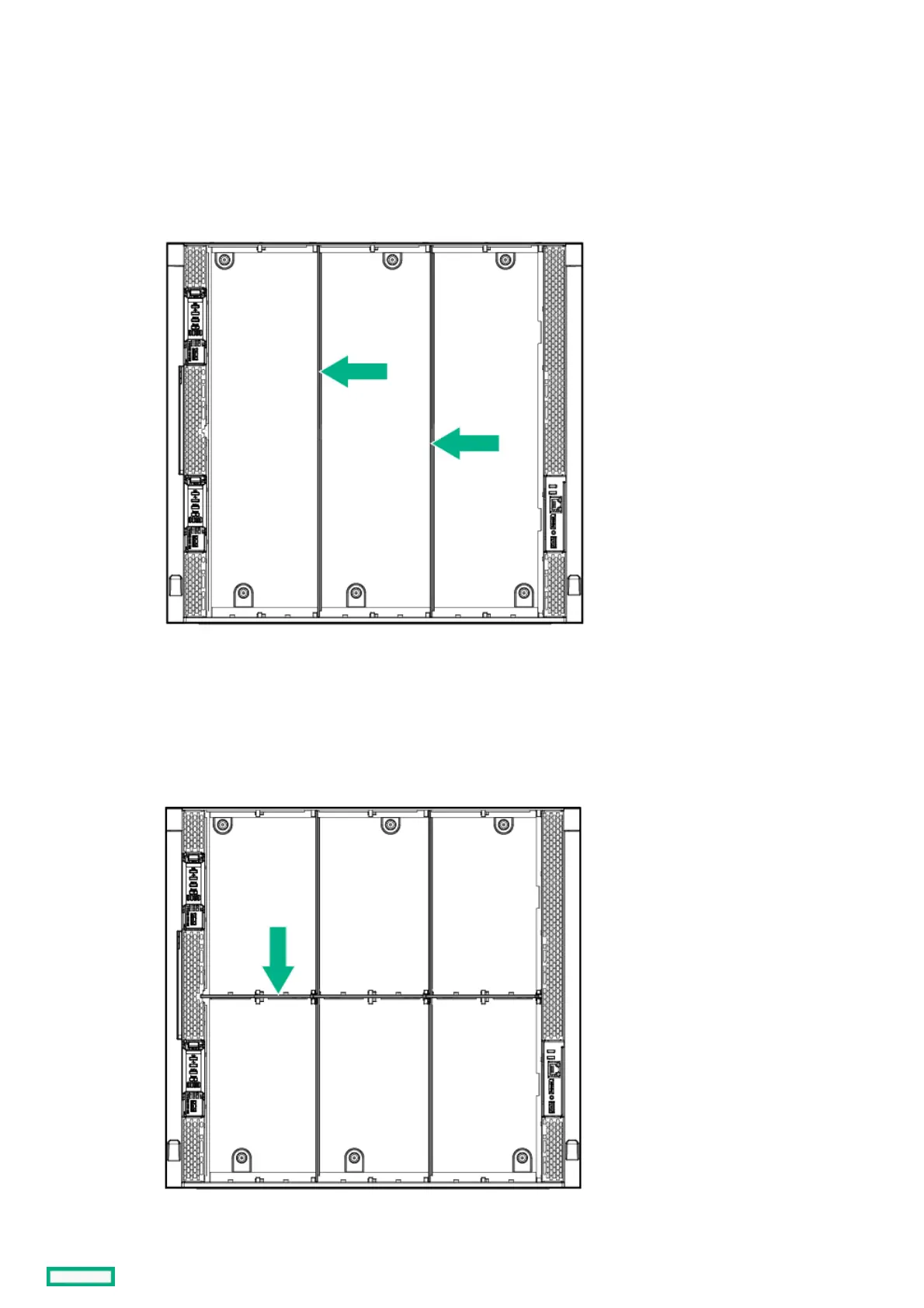

Figure 3: Vertical partitionsFigure 3: Vertical partitions
Horizontal Horizontal frameframe partitions partitions
The horizontal frame partitions are removable shelves that divide a full-height device bay into a half-height device bay.
Up to 12 half-height device modules can be installed in a frame.
Figure 4: Horizontal partitionsFigure 4: Horizontal partitions
An optional horizontal half shelf can be installed between bay 1 and bay 7 to enable those bays to be used by half-height device modules
when a full-height module is installed in bay 2.
