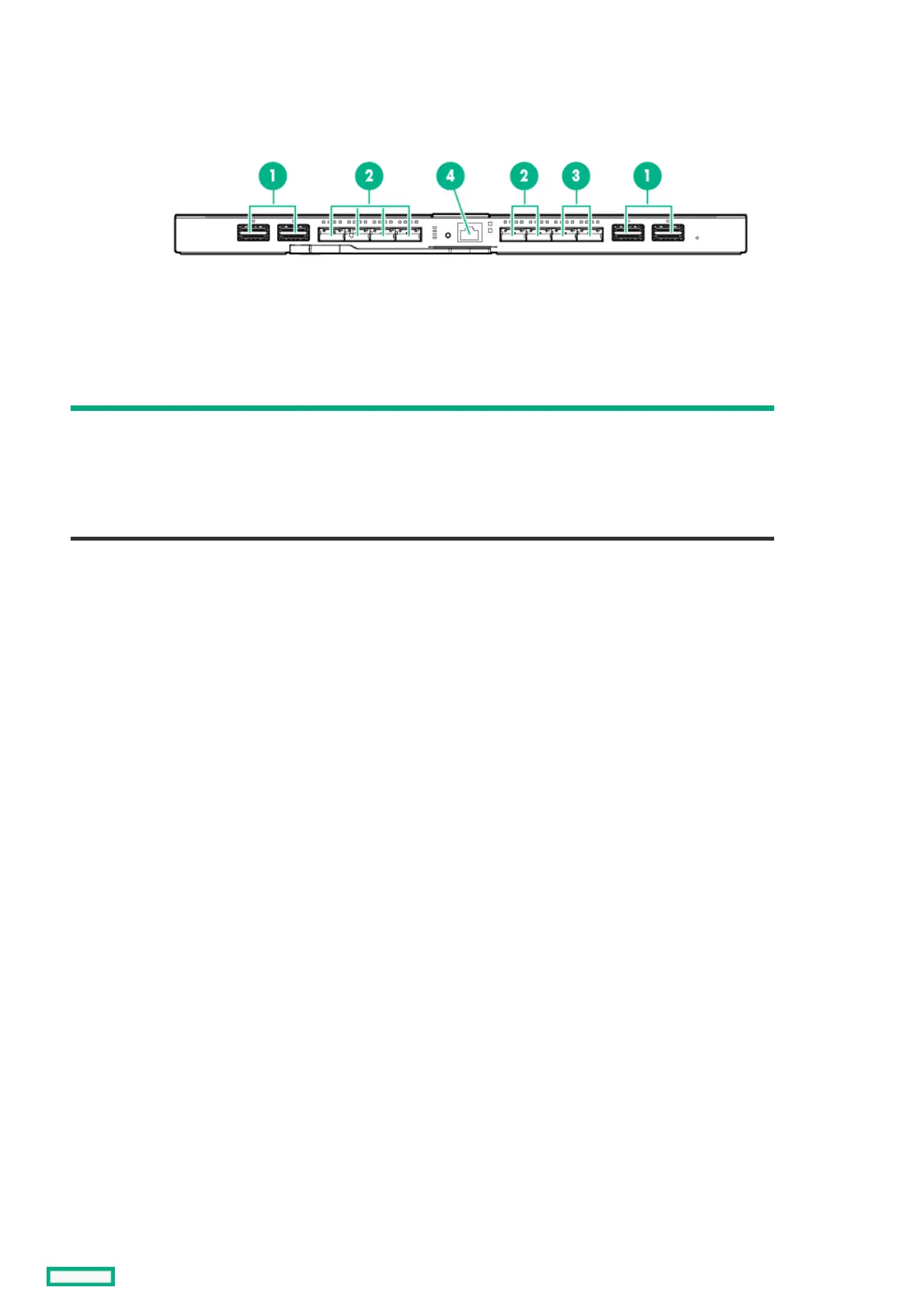

HPE Synergy 40Gb F8 Switch Module componentsHPE Synergy 40Gb F8 Switch Module components

ItemItem ComponentComponent DescriptionDescription

1 Interconnect link ports L1–

For linking satellite modules

2 QSFP+ uplink ports Q1– Q6 40Gb Ethernet or 8Gb Fibre Channel

3 QSFP+ uplink ports Q7– Q8 40Gb Ethernet

4 Serial port For management
