HP HPE Synergy 12000 Frame User Manual

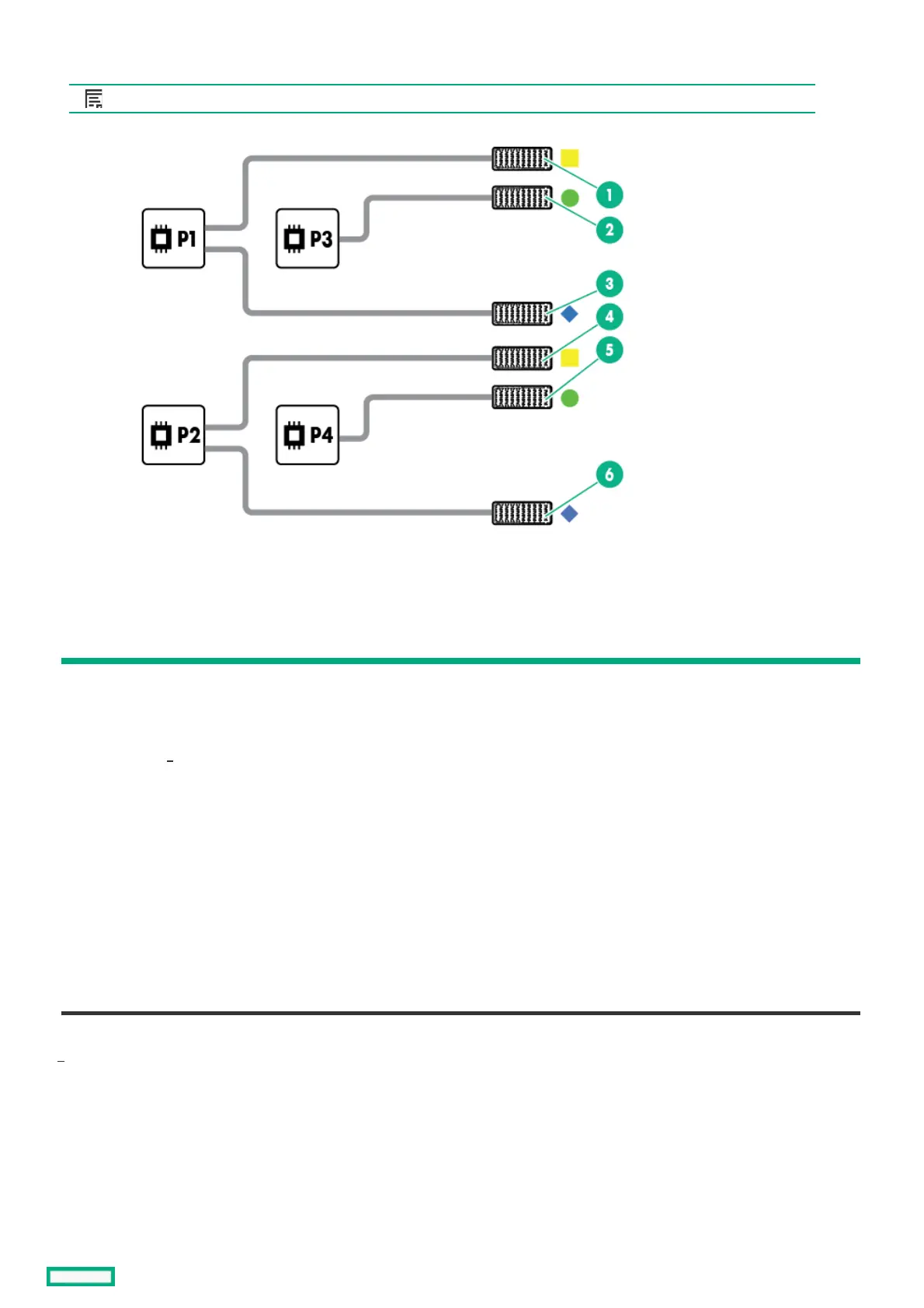

Full-height Full-height compute modulecompute module mezzanine connector definitions mezzanine connector definitions
NOTE: NOTE: The compute module hood label includes the exact mezzanine card locations.
The symbols in the image correspond with symbols on the rear of the frame.
ItemItem Mezz slotMezz slot
connectorconnector
identificationidentification
SupportedSupported
card typescard types
FabricFabric Supported ICM baysSupported ICM bays
1 Mezzanine
slot 1 (M1)
Type C
and Type
D
1 ICM 1 and 4
2 Mezzanine
slot 2 (M2)
Type C
and Type
D
2 ICM 2 and 5
3 Mezzanine
slot 3 (M3)
Type C
only
3 ICM 3 and 6
4 Mezzanine
slot 4 (M4)
Type C
and Type
D
1 ICM 1 and 4
5 Mezzanine
slot 5 (M5)
Type C
and Type
D
2 ICM 2 and 5
6 Mezzanine
slot 6 (M6)
Type C 3 ICM 3 and 6
When installing a mezzanine option in mezzanine slot 2, processor 3 must be installed. When installing a mezzanine option in
mezzanine slot 5, processor 4 must be installed.
1
1
1
Full-height compute module mezzanine connector definitions 109

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
