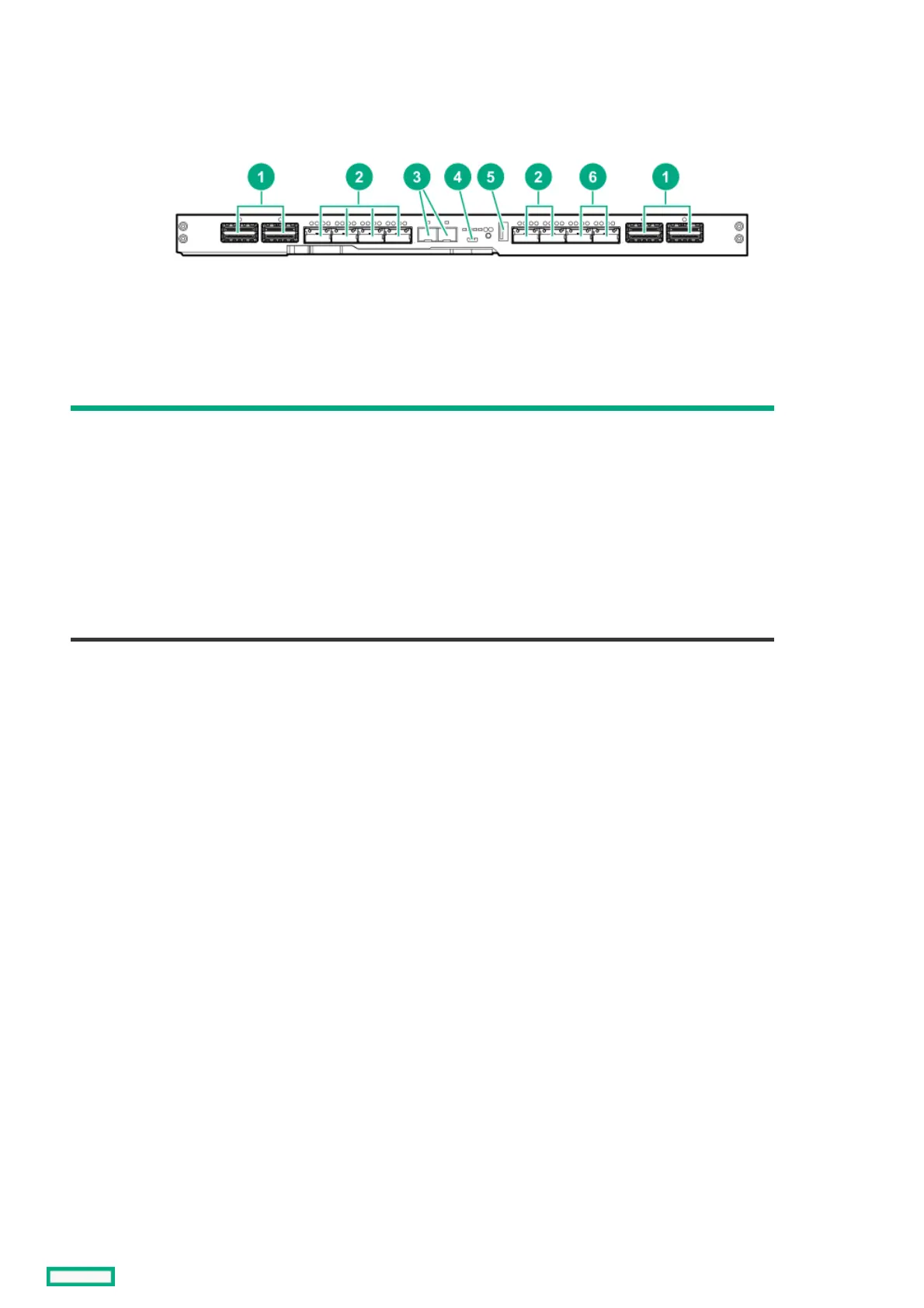

HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy componentsHPE Virtual Connect SE 100Gb F32 Module for HPE Synergy components

ItemItem ComponentComponent DescriptionDescription

1 Interconnect link ports L1–

For linking Interconnect Link modules

2 QSFP28 uplink ports Q1–

10/25/40/100Gb Ethernet

or 8/16/32Gb Fibre Channel

3 SFP+ uplink ports X1-X2 For Image Streamer

4 Micro-USB For Serial Port (115200,8,1)

5 USB USB 3.0 port (unused)

6 QSFP28 uplink ports Q7–

For Ethernet stacking links

HPE Virtual Connect SE 100Gb F32 Module for HPE Synergy components 59
