Creating a full-height module bay blankCreating a full-height module bay blank
ProcedureProcedure
1. Obtain the coupler plate:
If you are using a module bay blank that came with the frame, the coupler plate can be found with the contents of the full-height
device shipping box.
If you are using a device bay blank that you purchased as an option, remove the coupler plate from inside the blank.

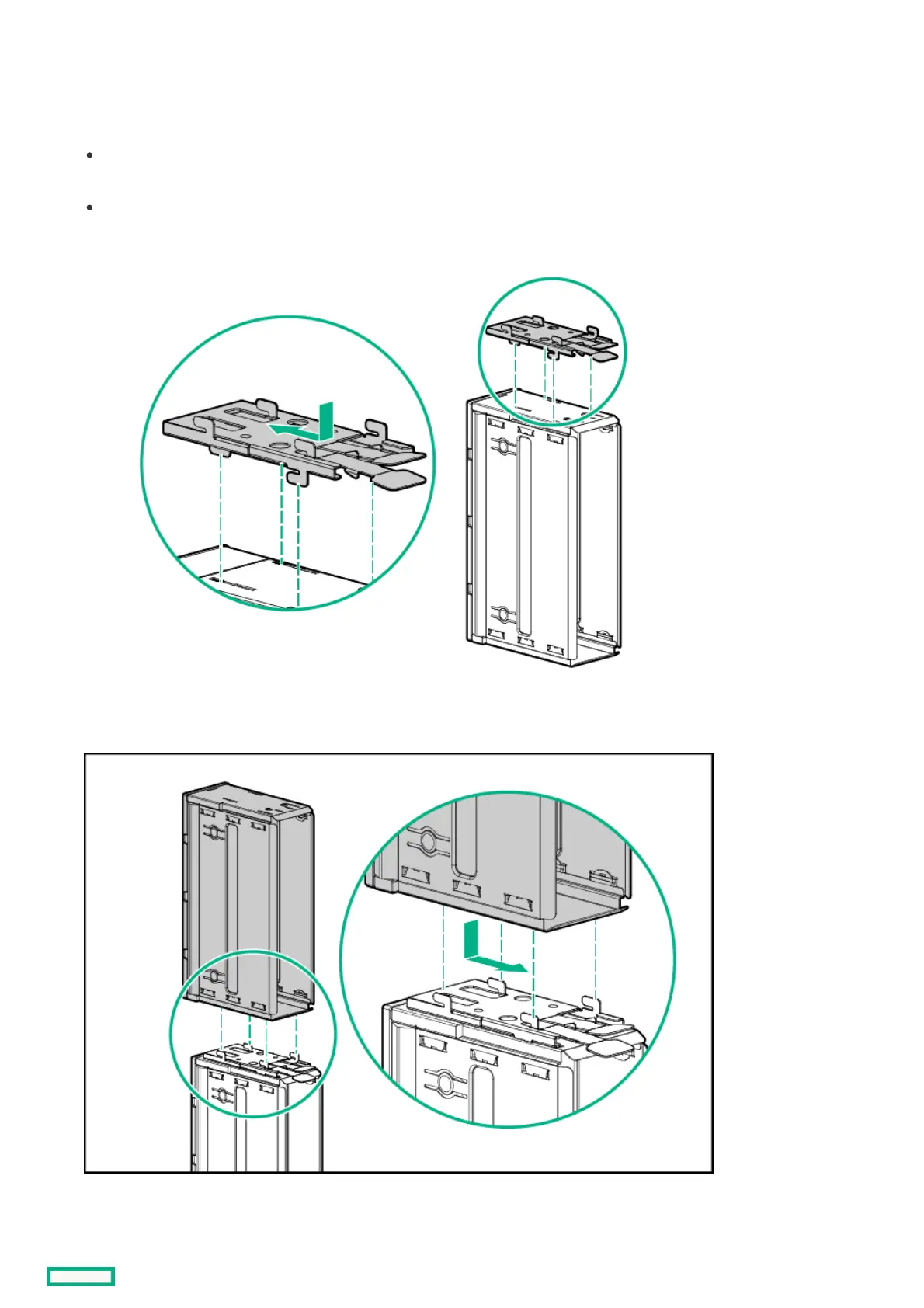

2. Fit the coupler plate into the slots on top of the blank, and then slide the coupler plate back until it snaps into place.
3. Fit the slots on the bottom of the second blank on to the coupler plate tabs, and then slide the second blank forward until it snaps in
place.
4. Install the full-height blank into the device bay.
Creating a full-height module bay blank 82
