HP HPE Synergy 12000 Frame User Manual

Connecting to the HPE Synergy Console using a keyboard, video monitor, and mouseConnecting to the HPE Synergy Console using a keyboard, video monitor, and mouse
NOTE:NOTE:
This procedure describes connecting a keyboard and mouse to a monitor with an integrated USB hub. Alternatively, you
can use a standalone USB hub to connect a keyboard and mouse.
NOTE:NOTE:
Cabling to an HPE Synergy 4-Port Frame Link Modules requires an HPE Synergy 4-Port Frame Link Module USB Adapter
PrerequisitesPrerequisites
A frame link module is installed in a frame link module bay.
ProcedureProcedure

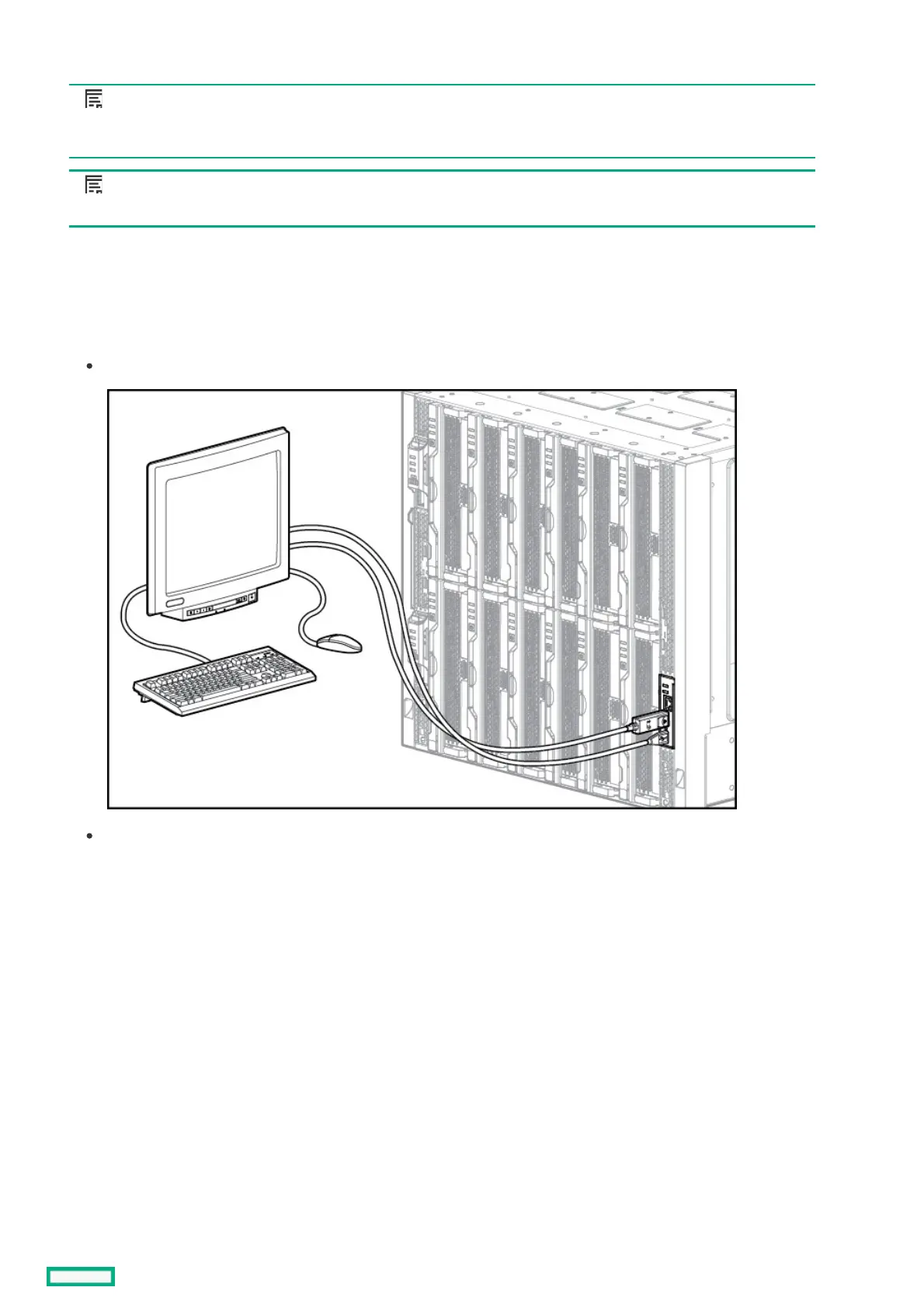

1. Connect a monitor cable to the monitor port and connect a USB cable to the USB port on either:
The front panel module on the front of the frame.
Either frame link module on the rear of the frame.
Connecting to the HPE Synergy Console using a keyboard, video monitor, and mouse 126

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
