Device bay numberingDevice bay numbering
All device bays in the frame are numbered in consecutive order from lowest to highest, from left to right from top to bottom, as observed
by a user looking directly at the frame.
Devices larger than half-height (multi-bay devices) are numbered according to the lowest device bay number that the multi-bay device
occupies.
For an even number of device modules, they must be installed next to each other between sets of vertical partitions if all device bays in
the frame are to be used.
For an odd number of single-wide full-height device modules, an even number must be installed next to each other between each vertical
partition, and the odd module must be installed in device bay 2 if all device bays in the frame are to be used.
The device bay numbering is available on the Information pull tabs.

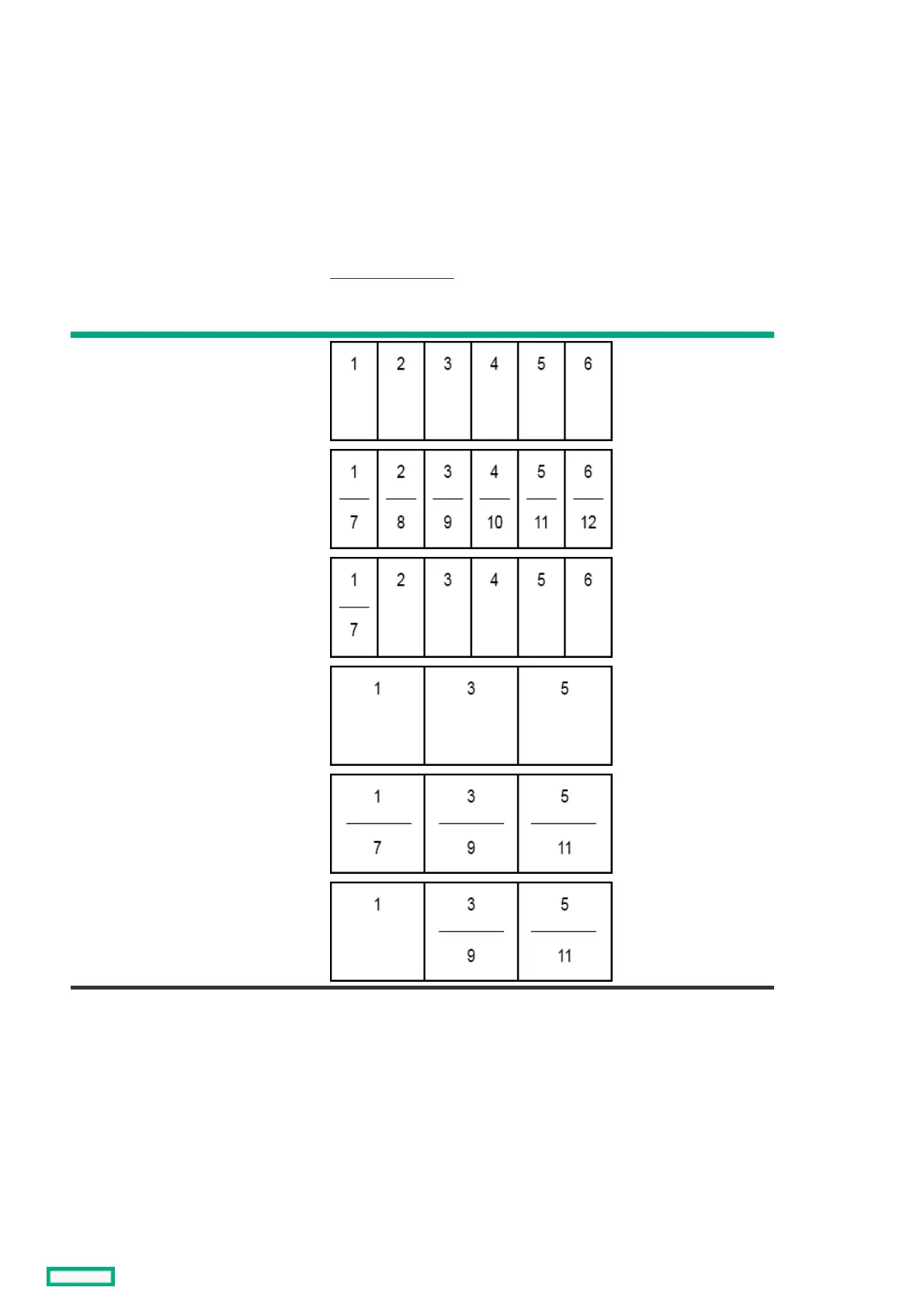

Device bay typeDevice bay type Device bay numberingDevice bay numbering
Single-wide, full-height
Single-wide, half-height
Single-wide, mixed-height
Double-wide, full-height
Double-wide, half-height
Double-wide, mixed-height
