Installing an Installing an appliance moduleappliance module
The appliance modules have specific population guidelines based on the appliance module and the system configuration. As a best
practice, if two appliance modules of the same type exist in any group of linked frames, install the appliance modules in separate frames.
After all components are installed and cabled, be sure to reimage the appliance module before bringing the appliance module into your
HPE Synergy configuration. Updating the firmware, ensures that the appliance module is compatible with the HPE Synergy Software
Release installed on HPE Synergy. For more information, see Update the firmware.
ProcedureProcedure

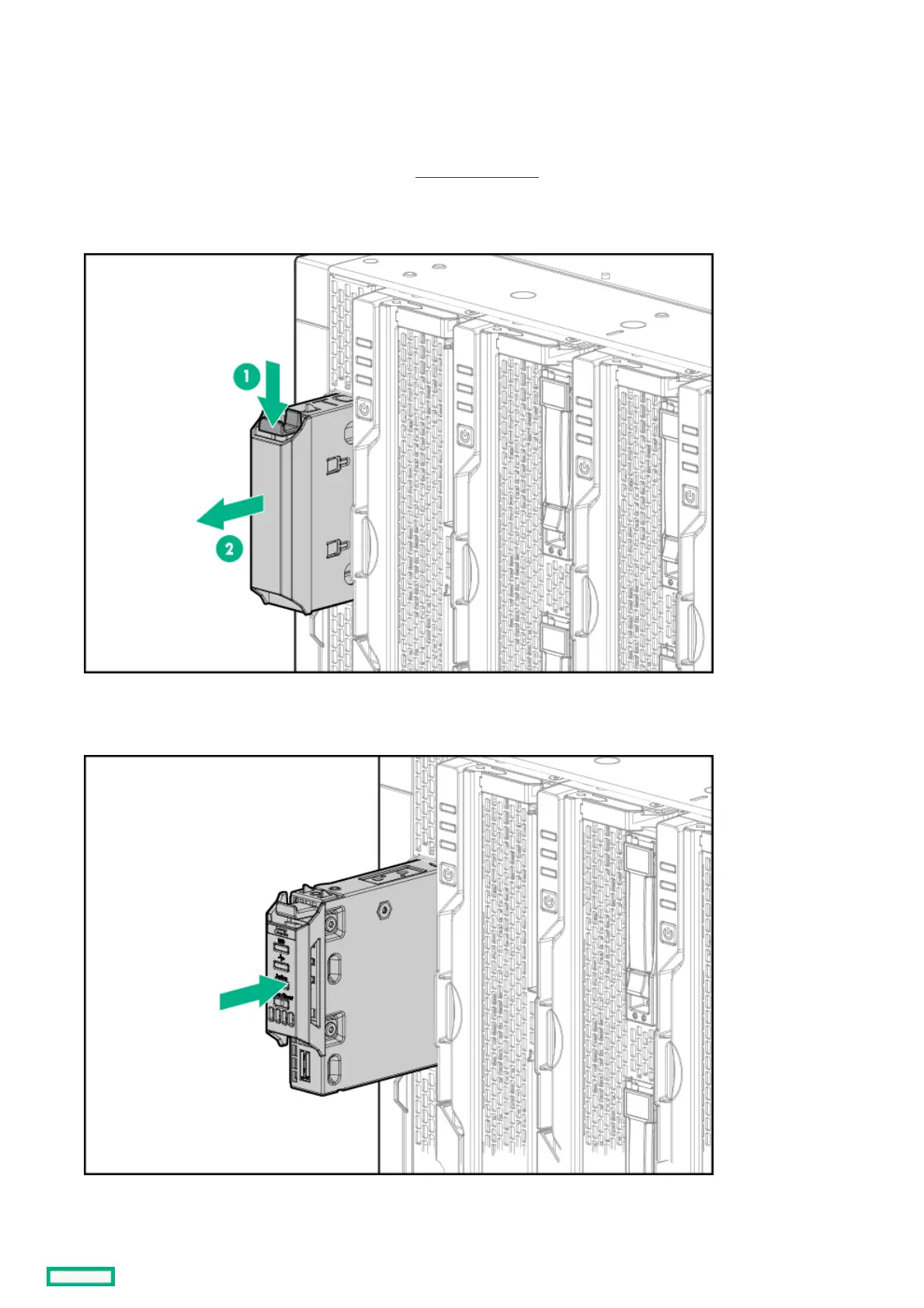

1. If installed, remove the appliance module blank from the appliance bay.
2. Install the first appliance module into appliance bay 1.
When the appliance module is fully seated, it locks into place.
Installing an appliance module 80

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
