Installing a Installing a frame link moduleframe link module
ProcedureProcedure
1. If installed, remove the frame link module blank from the frame link module bay in the rear of the frame.
CAUTION: CAUTION: Use caution when installing the frame link module into the frame to avoid damage to the connector.
Installing a frame link module with a damaged connector can result in damage to the midplane.
2. Open the frame link module latch.
3. Remove the frame link module end cap.

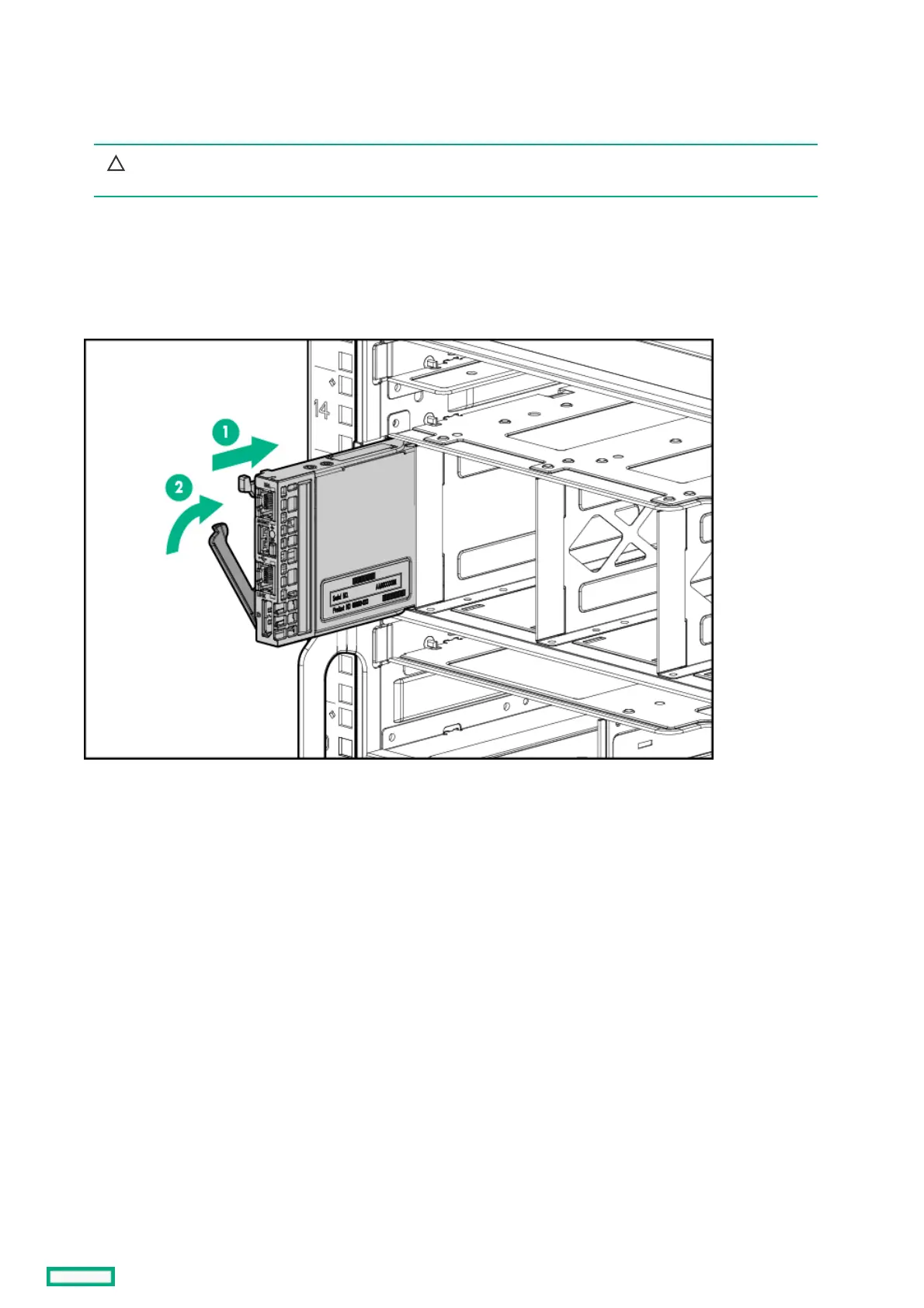

4. Install the frame link module into the frame.
5. Close the frame link module latch.
Installing a frame link module 94
