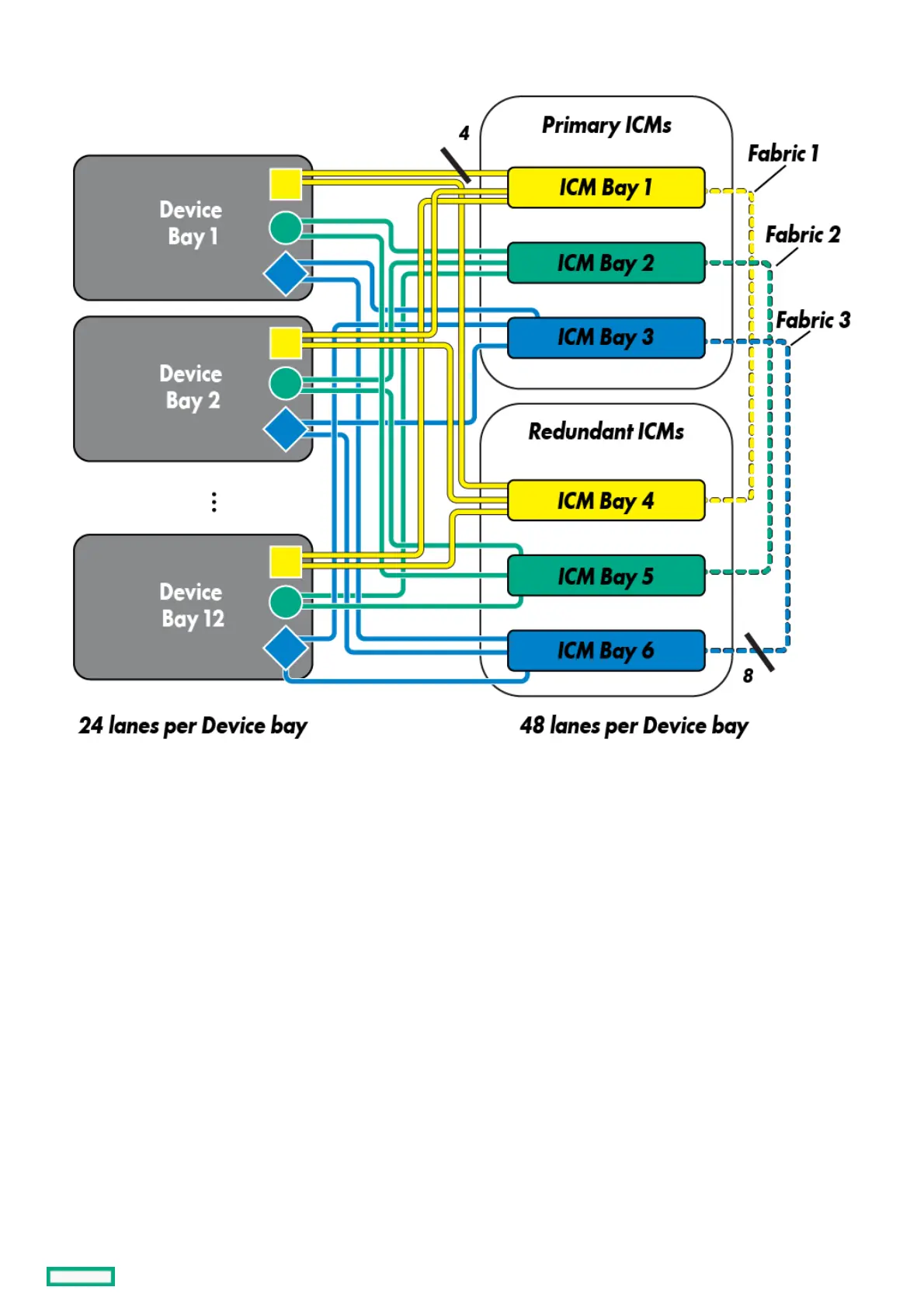

Mezzanine to frame signal routingMezzanine to frame signal routing
The HPE Synergy 12000 Frame midplane provides 4-lane high-speed signal routing from all 12 device bays to the 6 interconnect module
bays. A pair of interconnects installed in an interconnect bay set provides redundant connectivity for each connected mezzanine card.
When a device bay contains a compute module, then each of the installed mezzanine cards connects to the corresponding interconnect
bay sets.
Usage of these interconnections is dependent on the type of fabric chosen to be installed. For example, a 10Gb Ethernet mezzanine card
uses only a single lane of each four-lane group. The SAS fabric uses all four lanes.
Mezzanine to frame signal routing 106
