Installing fansInstalling fans
All ten fans must be populated at all times. There is no required installation order for installing the fans.
CAUTION: CAUTION: Use caution to avoid hitting the PCA card edge against the frame. Damage to the fan PCA could result in
malfunction of the fan or the frame.
ProcedureProcedure

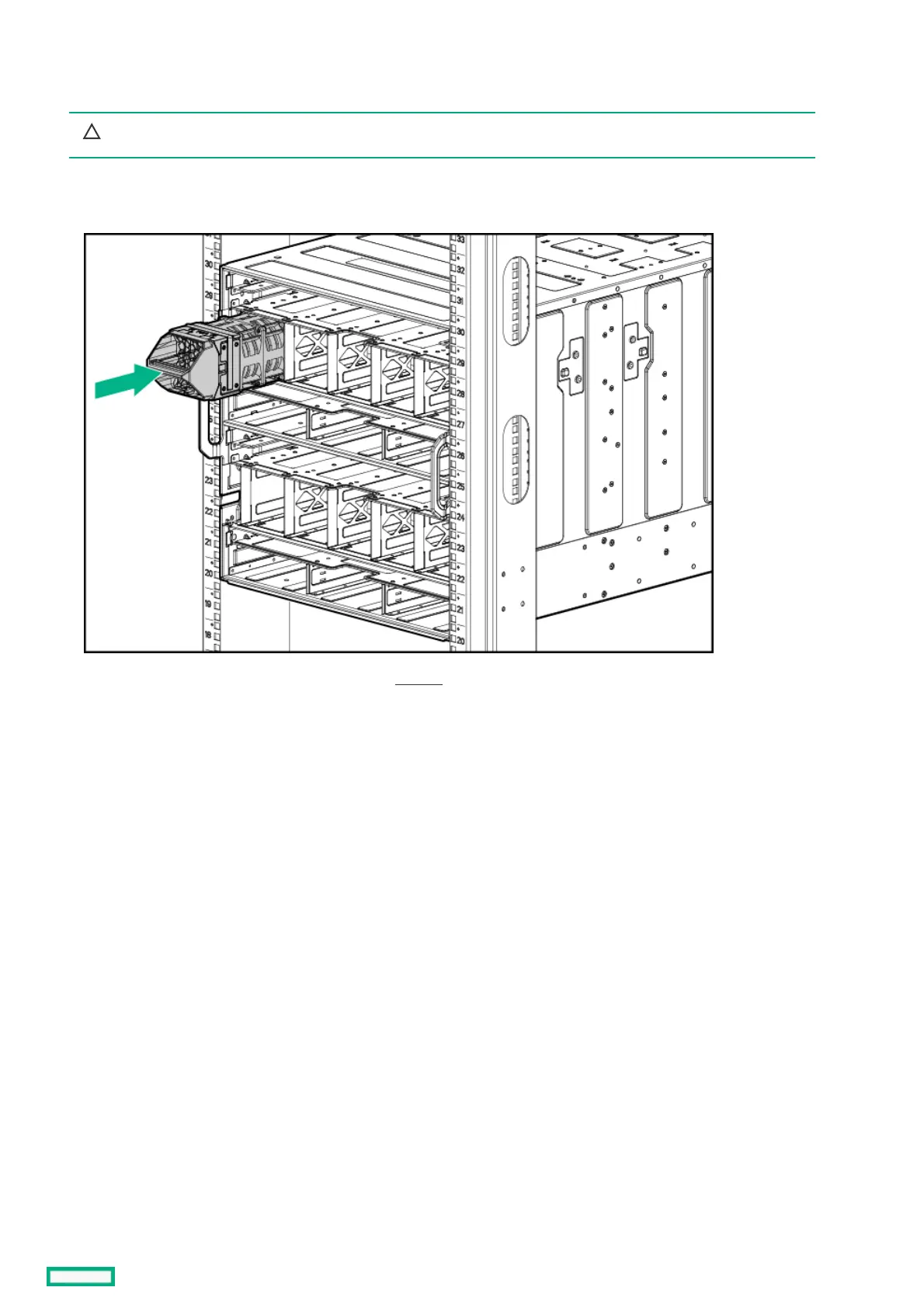

1. To install a fan, insert the fan into the frame until it locks into place.
2. After power is applied to the frame, verify that each fan LED is green.
Installing fans 99

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
