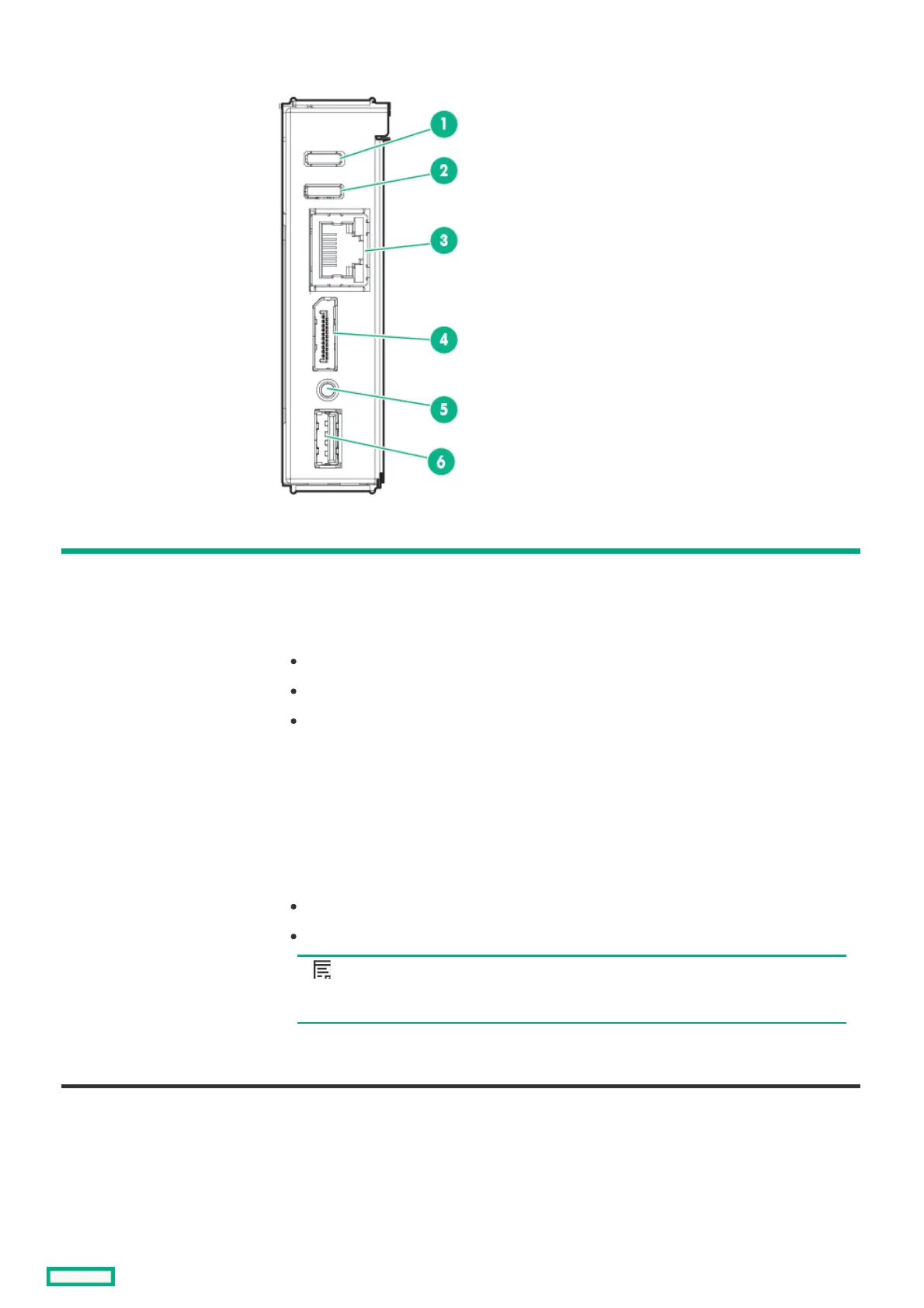

Front panel componentsFront panel components
ItemItem DescriptionDescription FunctionFunction
1 UID / LED button Toggles the frame UID on or off. When turned on, the UID LED on the active frame link module
(FLM) also turns on. This allows identification of the frame from either the front or rear and
identifies the active FLM.
2 Frame Health LED Indicates the highest severity health status of all components within the frame.
Solid green—Normal operation
Flashing amber—Warning
Flashing red—Critical error
To resolve critical errors and warnings, connect to HPE OneView or to the HPE Synergy Console.
3 Laptop port Provides single laptop access to the frame link module using an RJ-45 Ethernet 100BASE-TX
connection.
4 Monitor port Provides connectivity for a monitor or an active monitor port adapter to access the HPE Synergy
Console.
5 Reset button Provides two functions:
Resets the Active frame link module - momentary press.
Factory resets both frame link modules - press and hold until UID LED flashes blue.
NOTE:NOTE:
The reset button does not reset any other component in the frame.
6 USB Provides a connection for supported USB devices such as a keyboard or mouse for HPE Synergy
Console use. To connect multiple devices, a USB hub (not included) is required.
