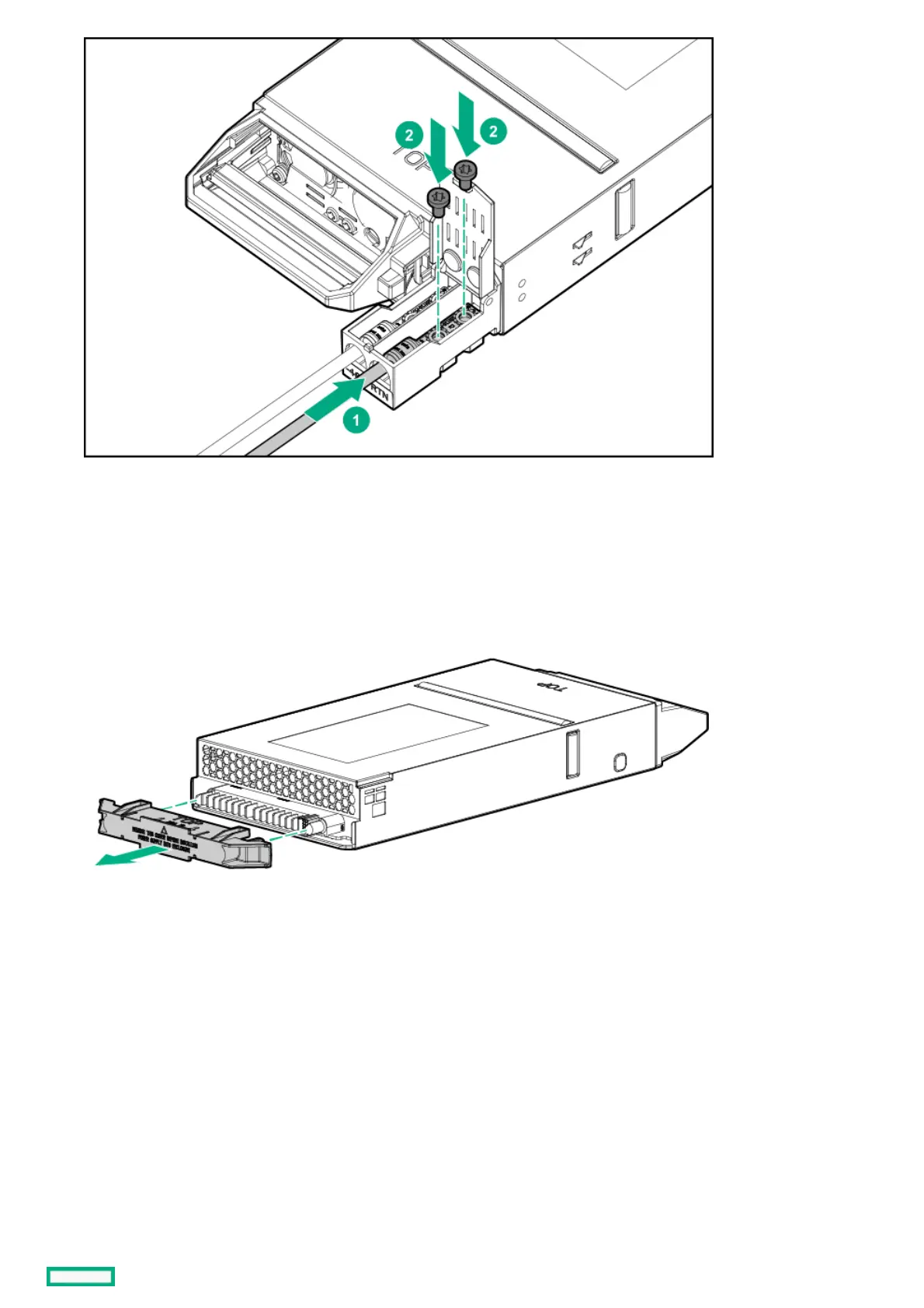

10. Using a torque-controlled T-25 screwdriver, tighten both screws to 15 lb-in of torque.
11. Close the input connector cover.
12. Remove the output connector cover from the new power supply.
13. Insert the power supply into the frame until it locks into place. The power supply is marked with TOP to ensure proper orientation
during installation.
Installing a DC power supply 114

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
