HP HPE Synergy 12000 Frame User Manual

HPEHPE Synergy Console Synergy Console icons icons

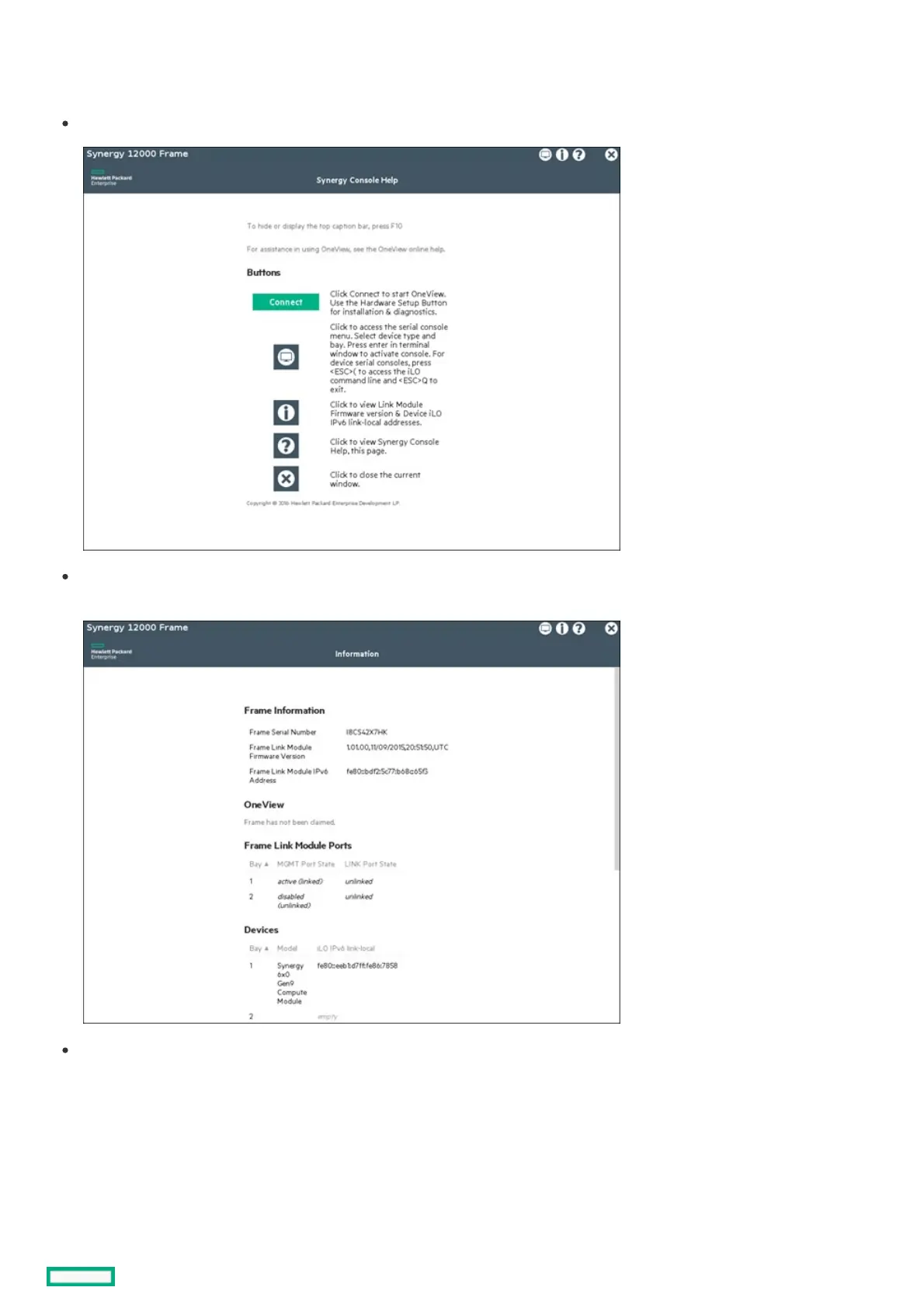

The icons in the top right help to navigate.
Question MarkQuestion Mark icon — Select this icon to access the basic HPE Synergy Console help screen.
i i icon — Select this icon to access the Information screen. The local frame information, including firmware version and discovered
hardware components within the frame are displayed.
Screen Screen icon — Select this icon to access the hardware components discovered by the HPE Synergy Console, including Appliances,
Interconnects, and Devices. Empty bays are represented by the grayed out "—" symbol, and components that are discovered but not
managed by a serial port are grayed out and disabled.
HPE Synergy Console icons 155

HP HPE Synergy 12000 Frame Specifications

General

Form Factor	Rack-mountable
Maximum Compute Modules	12
Management Module	HPE Synergy Composer
Cooling	Redundant fan modules
Power Supply	Redundant power supplies
Networking	HPE Synergy 12000 Frame Interconnect
Product Type	Blade Enclosure
Width	44.5 cm
Compliance	FCC, VCCI, BSMI, CCC, KCC, RoHS
Depth	36.25 in (92.08 cm)
