Printer views
●
Printer front view
●
Printer back view and interface ports
●
Control-panel view

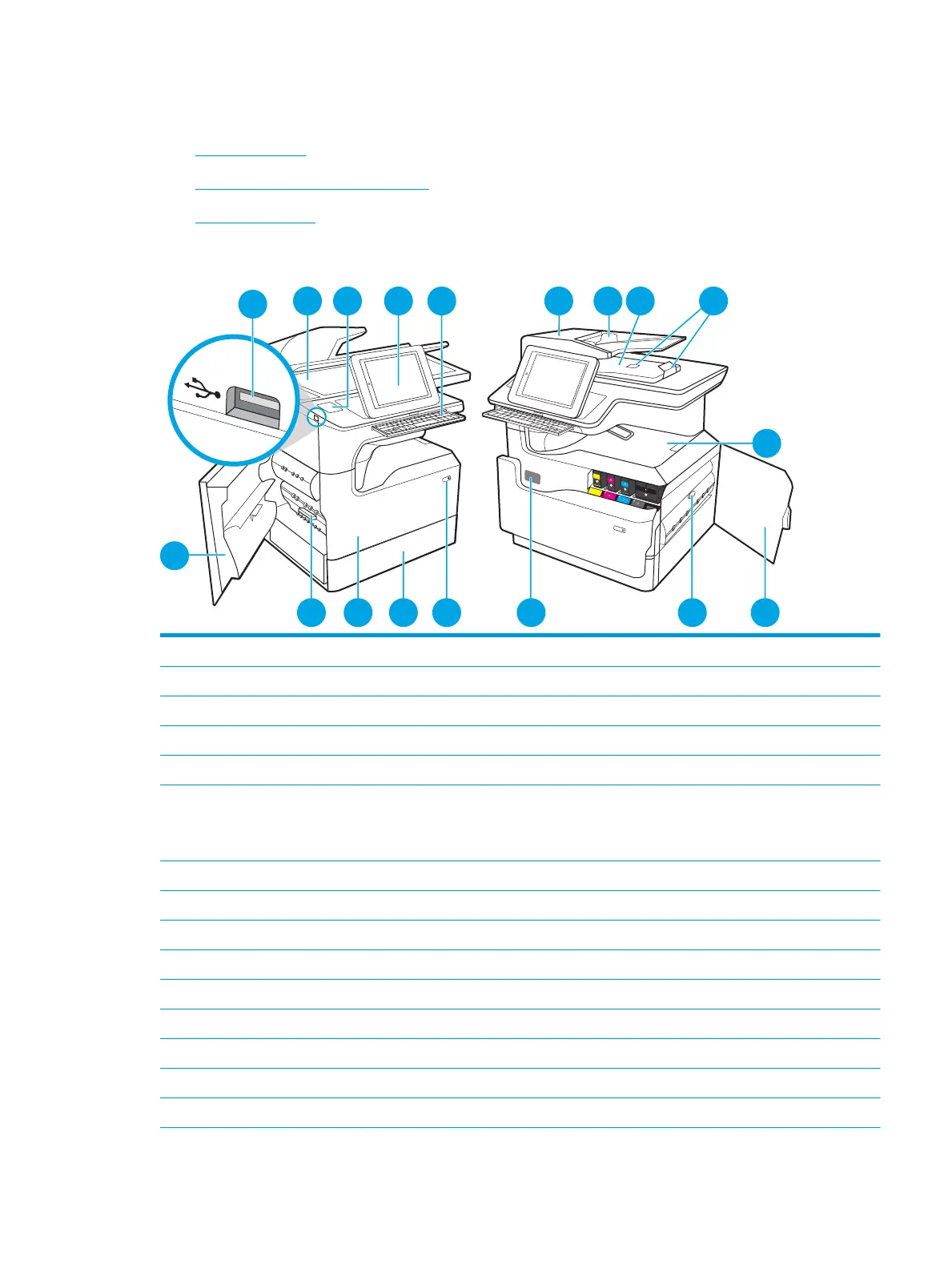

Printer front view
2
3 5 6 7 8 9 10
1
16 15
1314 12
17
18
4
11
1 Left door
2 Easy-access USB printing port
3 Scanner assembly
4 Hardware integration pocket (for connecting accessories and third-party devices)
5 Control panel with color touchscreen display (tilts up for easier viewing)
6 Keyboard (E77650z, E77650zs, E77660z, and E77660zs models only. Push the keyboard in until it clicks, and then pull the
keyboard out to use it.)
CAUTION: Close the keyboard when it is not in use.
7 Document-feeder cover (access for clearing jams)
8 Document-feeder input tray
9 Document-feeder output bin and output bin stop
10 Document-feeder output extensions
11 Output bin and output bin stop
12 Right door (access for clearing jams)
13 Duplexer
14 Serial number and product number label
15 On/O button
ENWW Printer views 3
