HPE FlexNetwork 5510 HI Series Layer 3 - Ip Routing Configuration Guide

13
Task Command
Display static route next hop
information.
display route-static nib
[ nib-id ] [
verbose
]
Display static routing table
information.
display route-static routing-table
[
vpn-instance
vpn-instance-name ] [ ip-address { mask-length | mask } ]
Static route configuration examples
Basic static route configuration example
Network requirements
As shown in Figure 2, configure static routes on the switches for interconnections between any two
hosts.

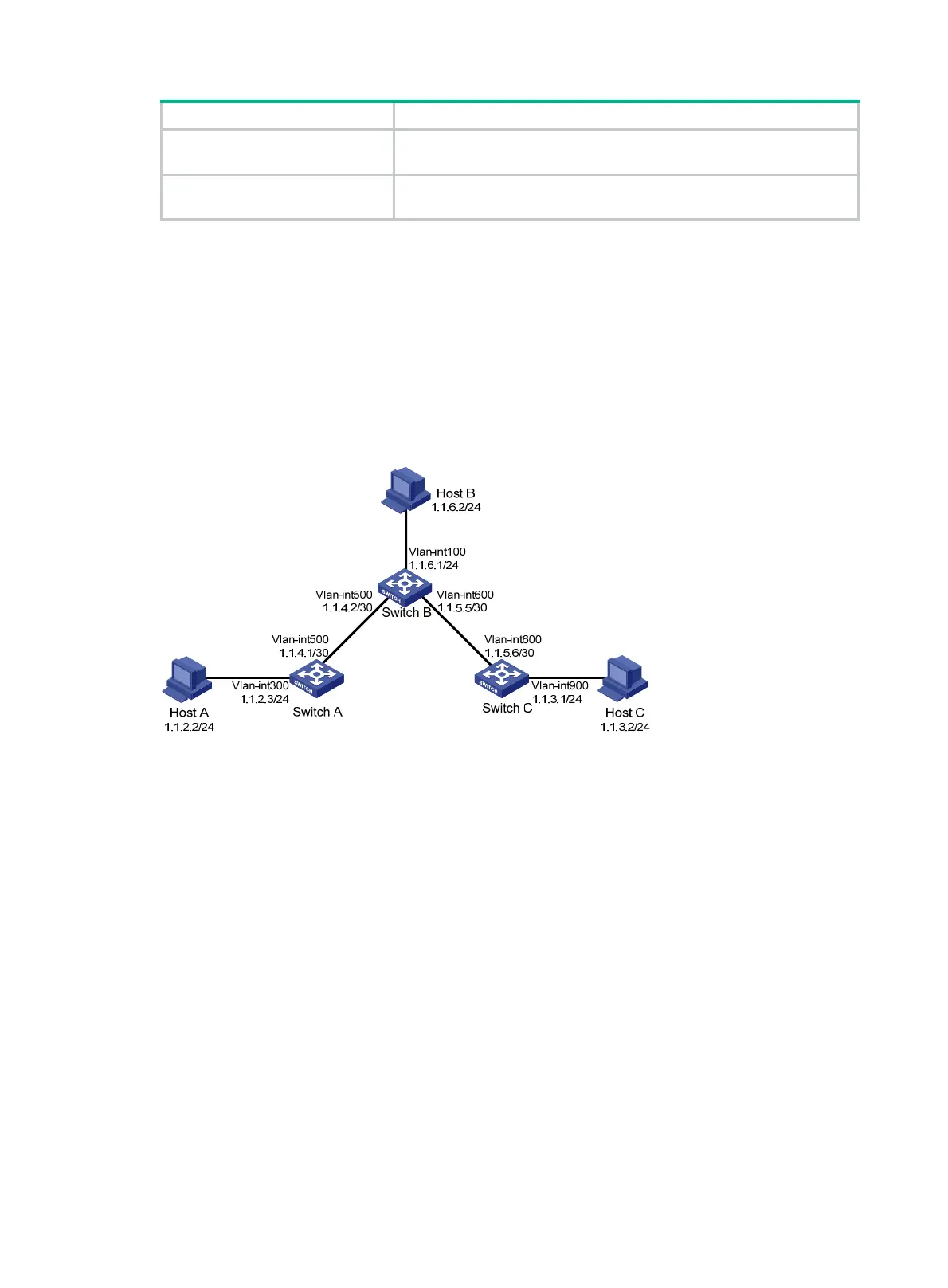

Figure 2 Network diagram
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure static routes:
# Configure a default route on Switch A.
<SwitchA> system-view
[SwitchA] ip route-static 0.0.0.0 0.0.0.0 1.1.4.2
# Configure two static routes on Switch B.
<SwitchB> system-view
[SwitchB] ip route-static 1.1.2.0 255.255.255.0 1.1.4.1
[SwitchB] ip route-static 1.1.3.0 255.255.255.0 1.1.5.6
# Configure a default route on Switch C.
<SwitchC> system-view
[SwitchC] ip route-static 0.0.0.0 0.0.0.0 1.1.5.5
3. Configure the default gateways of Host A, Host B, and Host C as 1.1.2.3, 1.1.6.1, and 1.1.3.1.
(Details not shown.)
Verifying the configuration
# Display static routes on Switch A.

HPE FlexNetwork 5510 HI Series Specifications

General

Model	HPE FlexNetwork 5510 HI Series
Category	Switch
Switch Type	Managed
Fans	Redundant fans
Layer	Layer 3
IPv6 Support	Yes
Warranty	Limited lifetime warranty
Power over Ethernet (PoE)	Available on some models (PoE+)
MAC Address Table Size	32, 000 entries
Routing Protocol	RIP, OSPF, BGP, IS-IS, Static Routing
Management	CLI, Web, SNMP
Operating Temperature	0°C to 45°C
Dimensions	440 x 400 x 44 mm
Input Voltage	100-240 VAC, 50/60 Hz
Memory and Processor	1 GB RAM, 1 GHz CPU
Operating Humidity	5% to 95% (non-condensing)
Security Features	ACL, 802.1X, RADIUS, TACACS+, SSH, SSL
