IPv6 PBR configuration examples
Packet type-based IPv6 local PBR configuration example
Network requirements
As shown in Figure 99, configure IPv6 PBR on Switch A to forward all TCP packets to the next hop
1::2. Switch A forwards other packets according to the routing table.

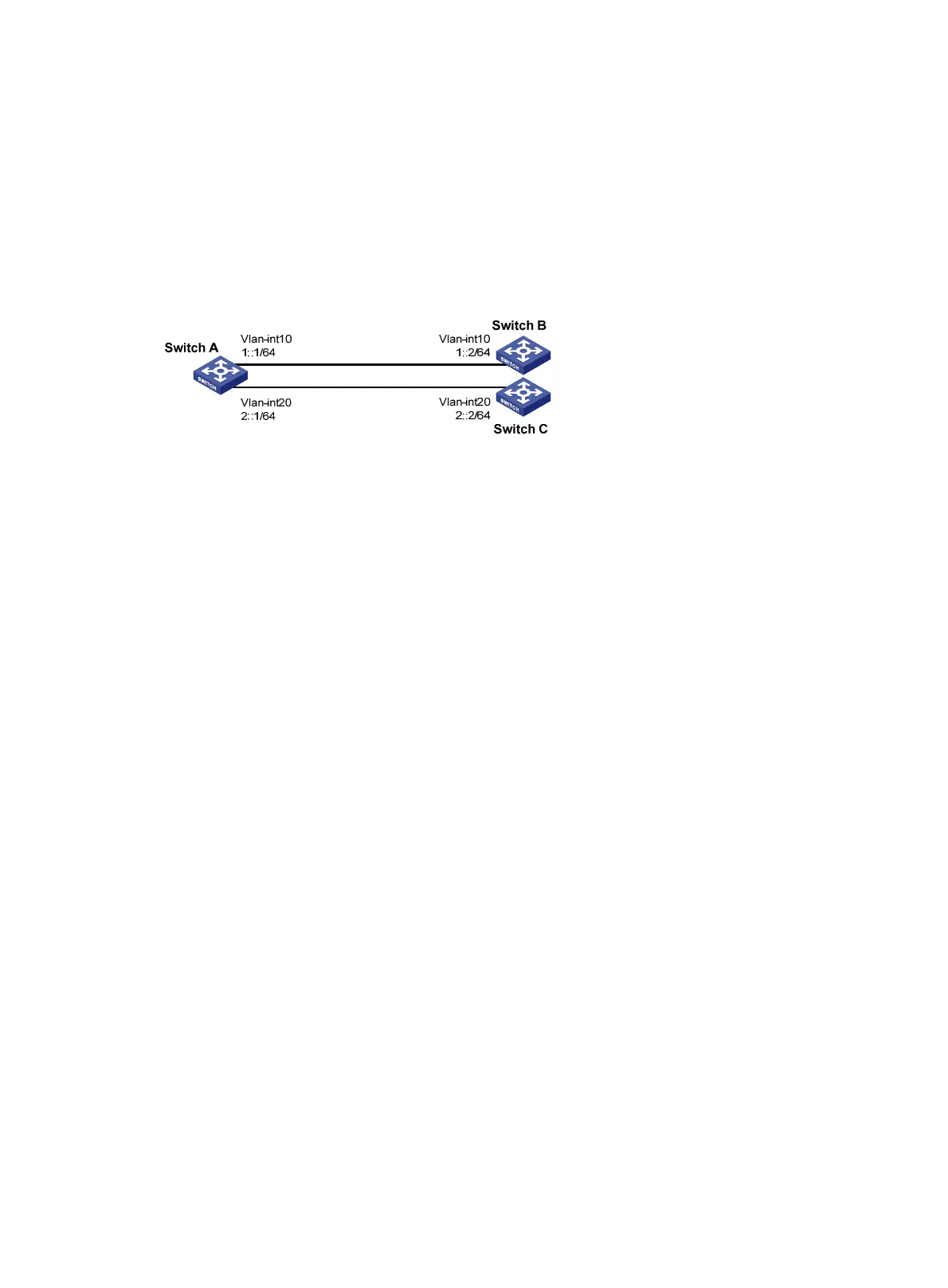

Figure 99 Network diagram
Configuration procedure
1. Configure Switch A:
# Create VLAN 10 and VLAN 20.
<SwitchA> system-view
[SwitchA] vlan 10
[SwitchA-vlan10] quit
[SwitchA] vlan 20
[SwitchA-vlan20] quit
# Configure the IPv6 addresses of VLAN-interface 10 and VLAN-interface 20.
[SwitchA] interface vlan-interface 10
[SwitchA-Vlan-interface10] ipv6 address 1::1 64
[SwitchA-Vlan-interface10] quit
[SwitchA] interface vlan-interface 20
[SwitchA-Vlan-interface20] ipv6 address 2::1 64
[SwitchA-Vlan-interface20] quit
# Configure ACL 3001 to match TCP packets.
[SwitchA] acl ipv6 number 3001
[SwitchA-acl6-adv-3001] rule permit tcp
[SwitchA-acl6-adv-3001] quit
# Configure Node 5 for policy aaa to forward TCP packets to next hop 1::2.
[SwitchA] ipv6 policy-based-route aaa permit node 5
[SwitchA-pbr6-aaa-5] if-match acl 3001
[SwitchA-pbr6-aaa-5] apply next-hop 1::2
[SwitchA-pbr6-aaa-5] quit
# Configure IPv6 local PBR by applying policy aaa to Switch A.
[SwitchA] ipv6 local policy-based-route aaa
2. Configure Switch B:
# Create VLAN 10.
<SwitchB> system-view
[SwitchB] vlan 10
[SwitchB-vlan10] quit
