HPE FlexNetwork 5510 HI Series Layer 3 - Ip Routing Configuration Guide

43
Local route
Destination/Mask Nexthop Cost Tag Flags Sec
1.1.1.0/24 0.0.0.0 0 0 RDOF -
10.1.1.0/24 0.0.0.0 0 0 RDOF -
10.2.1.0/24 0.0.0.0 0 0 RDOF -
RIP route redistribution configuration example
Network requirements
As shown in Figure 8, Switch B communicates with Switch A through RIP 100 and with Switch C
through RIP 200.
Configure RIP 200 to redistribute direct routes and routes from RIP 100 on Switch B so Switch C can
learn routes destined for 10.2.1.0/24 and 11.1.1.0/24. Switch A cannot learn routes destined for
12.3.1.0/24 and 16.4.1.0/24.

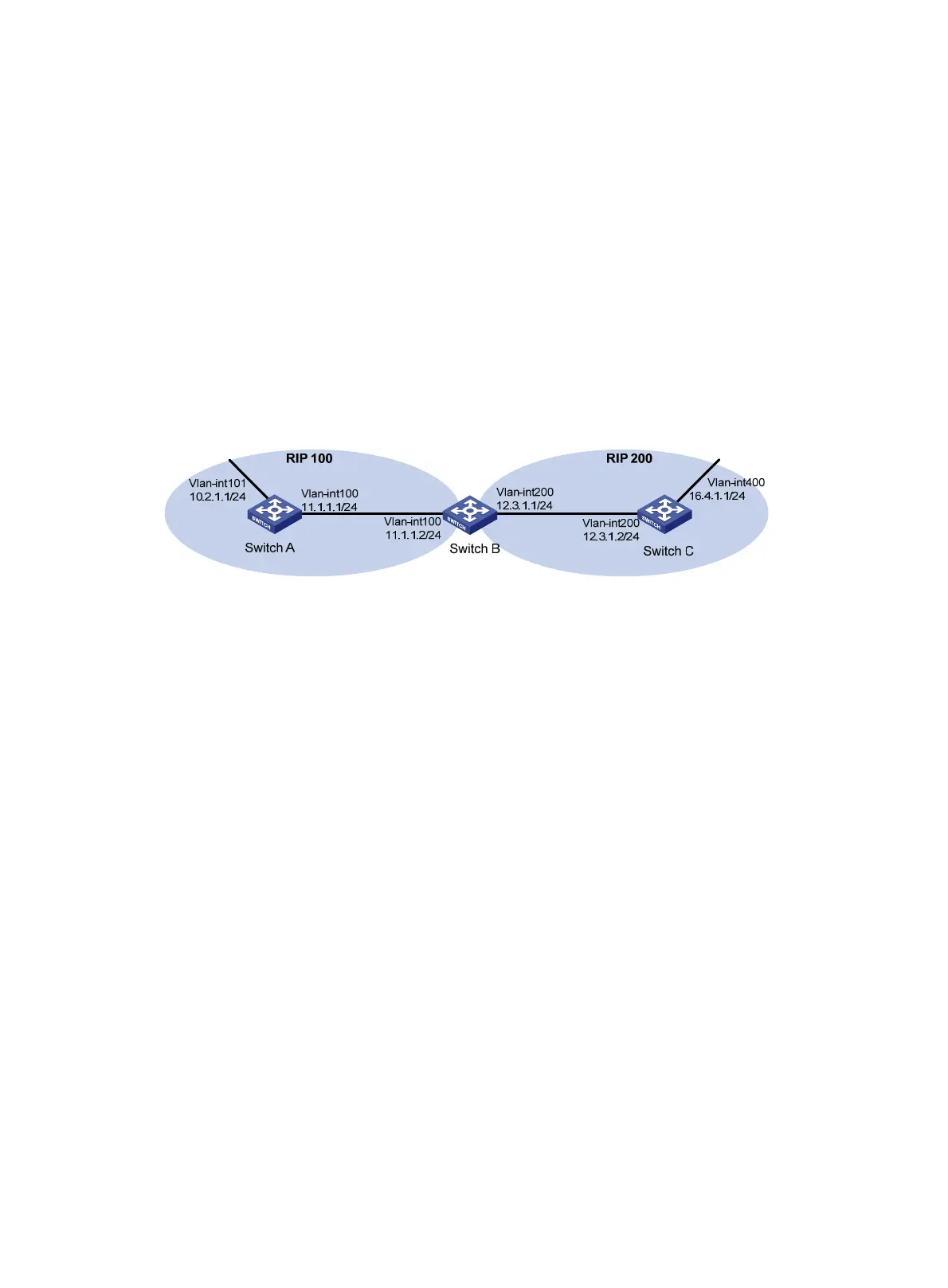

Figure 8 Network diagram
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure basic RIP:
# Enable RIP 100, and configure RIPv2 on Switch A.
<SwitchA> system-view
[SwitchA] rip 100
[SwitchA-rip-100] network 10.0.0.0
[SwitchA-rip-100] network 11.0.0.0
[SwitchA-rip-100] version 2
[SwitchA-rip-100] undo summary
[SwitchA-rip-100] quit
# Enable RIP 100 and RIP 200, and configure RIPv2 on Switch B.
<SwitchB> system-view
[SwitchB] rip 100
[SwitchB-rip-100] network 11.0.0.0
[SwitchB-rip-100] version 2
[SwitchB-rip-100] undo summary
[SwitchB-rip-100] quit
[SwitchB] rip 200
[SwitchB-rip-200] network 12.0.0.0
[SwitchB-rip-200] version 2
[SwitchB-rip-200] undo summary
[SwitchB-rip-200] quit
# Enable RIP 200, and configure RIPv2 on Switch C.
<SwitchC> system-view
