372
OSPFv3 Process 1 with Router ID 4.4.4.4
-------------------------------------------------------------------------
I - Intra area route, E1 - Type 1 external route, N1 - Type 1 NSSA route
IA - Inter area route, E2 - Type 2 external route, N2 - Type 2 NSSA route
* - Selected route
*Destination: ::/0
Type : IA Cost : 11
NextHop : FE80::F40D:0:93D0:1 Interface: Vlan400
AdvRouter : 4.4.4.4 Area : 0.0.0.2
Preference : 10
*Destination: 2001:2::/64
Type : I Cost : 1
Nexthop : :: Interface: Vlan400
AdvRouter : 4.4.4.4 Area : 0.0.0.2
Preference : 10
Total: 2
Intra area: 1 Inter area: 1 ASE: 0 NSSA: 0
The output shows that route entries are reduced. All indirect routes are removed, except the
default route.
OSPFv3 NSSA area configuration example
Network requirements
As shown in Figure 89:
• Configure OSPFv3 on all switches and split the AS into three areas.
• Configure Switch B and Switch C as ABRs to forward routing information between areas.
• Configure Area 1 as an NSSA area and configure Switch A as an ASBR to redistribute static
routes into the AS.

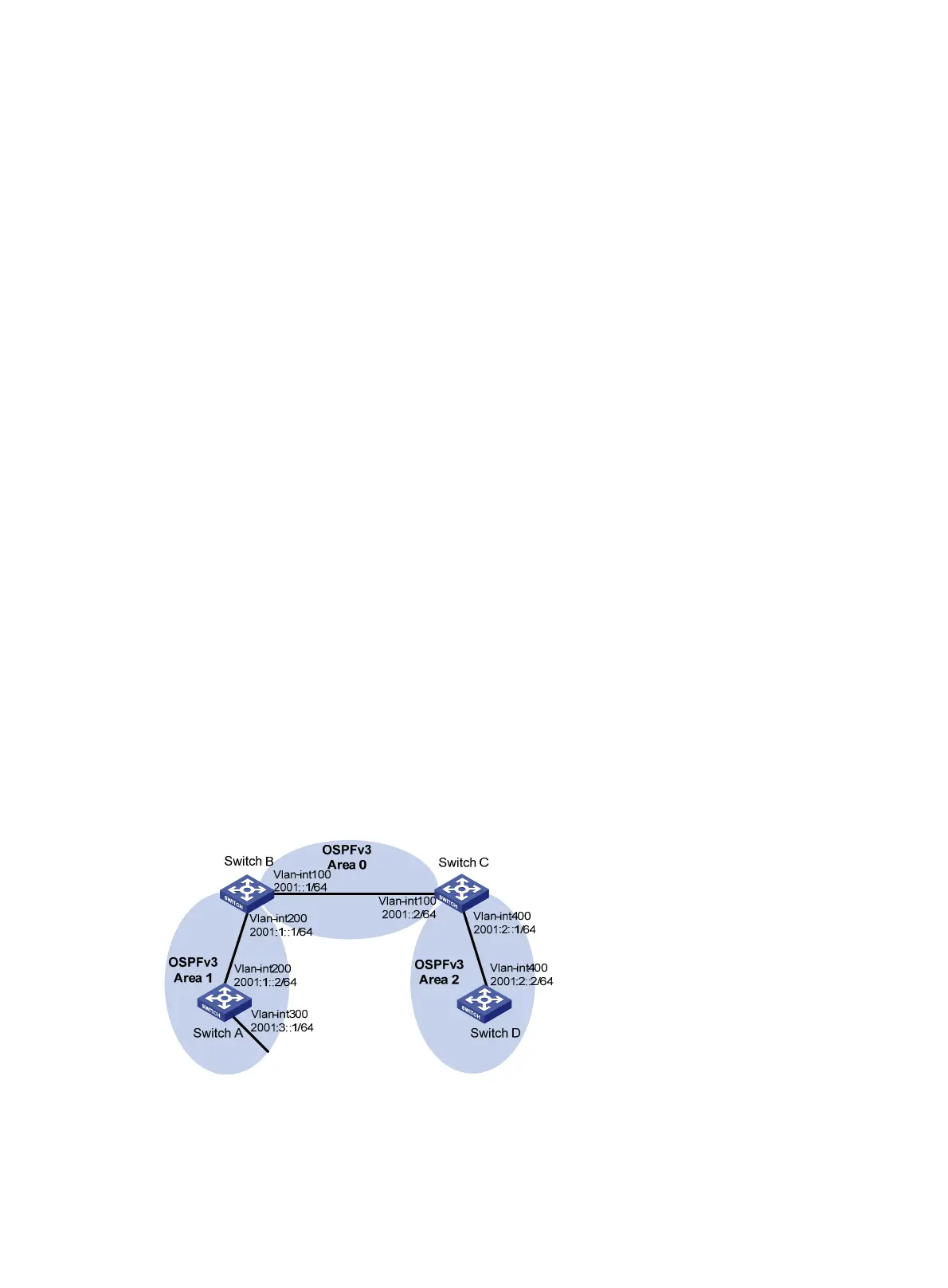

Figure 89 Network diagram
Configuration procedure
1. Configure IPv6 addresses for interfaces. (Details not shown.)
2. Configure basic OSPFv3 (see "OSPFv3 stub area configuration example").
