HPE FlexNetwork 5510 HI Series Layer 3 - Ip Routing Configuration Guide

40
Task Command
Display RIP current status and configuration
information.
display rip
[ process-id ]
Display active routes in RIP database.
display rip
process-id
database
[ ip-address
{ mask-length | mask } ]
Display RIP interface information.
display rip
process-id
interface
[ interface-type
interface-number ]
Display routing information about a specified RIP
process.
display rip
process-id
route
[ ip-address
{ mask-length | mask } [
verbose
] |
peer
ip-address |
statistics
]
Reset a RIP process.
reset rip
process-id
process
Clear the statistics for a RIP process.
reset rip
process-id
statistics
RIP configuration examples
Basic RIP configuration example
Network requirements
As shown in Figure 7, enable RIPv2 on all interfaces on Switch A and Switch B. Configure Switch B
to not advertise route 10.2.1.0/24 to Switch A, and to accept only route 2.1.1.0/24 from Switch A.

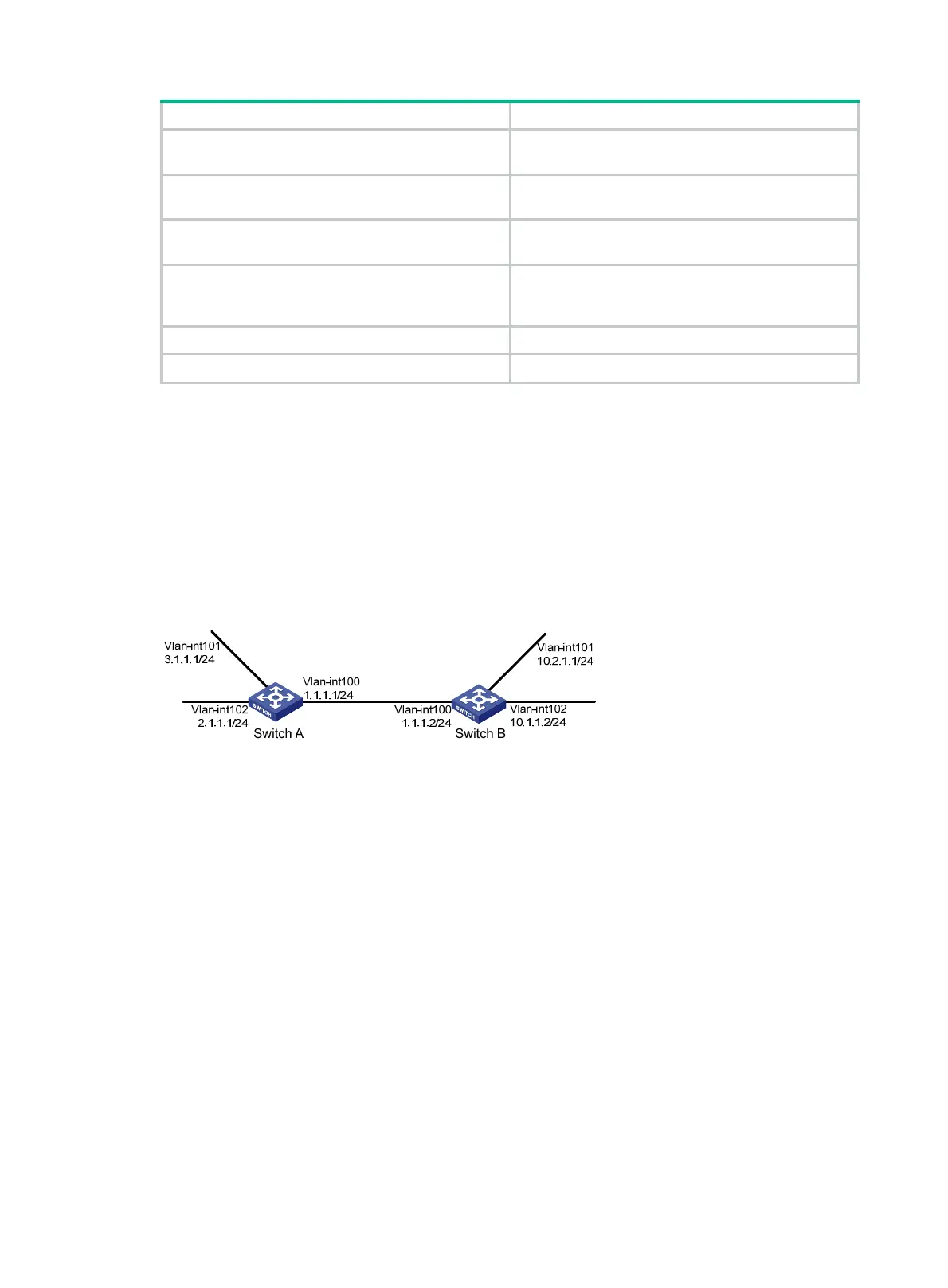

Figure 7 Network diagram
Configuration procedure
1. Configure IP addresses for interfaces. (Details not shown.)
2. Configure basic RIP:
# Enable RIP on the specified networks on Switch A.
<SwitchA> system-view
[SwitchA] rip
[SwitchA-rip-1] network 1.0.0.0
[SwitchA-rip-1] network 2.0.0.0
[SwitchA-rip-1] network 3.0.0.0
[SwitchA-rip-1] quit
# Enable RIP on the specified interfaces on Switch B.
<SwitchB> system-view
[SwitchB] rip
[SwitchB-rip-1] quit
[SwitchB] interface vlan-interface 100
[SwitchB-Vlan-interface100] rip 1 enable
[SwitchB-Vlan-interface100] quit
[SwitchB] interface vlan-interface 101
