7. Also place the insulating gasket (number 5 in Figure 114) inside the heating body (number
4 in Figure 114).

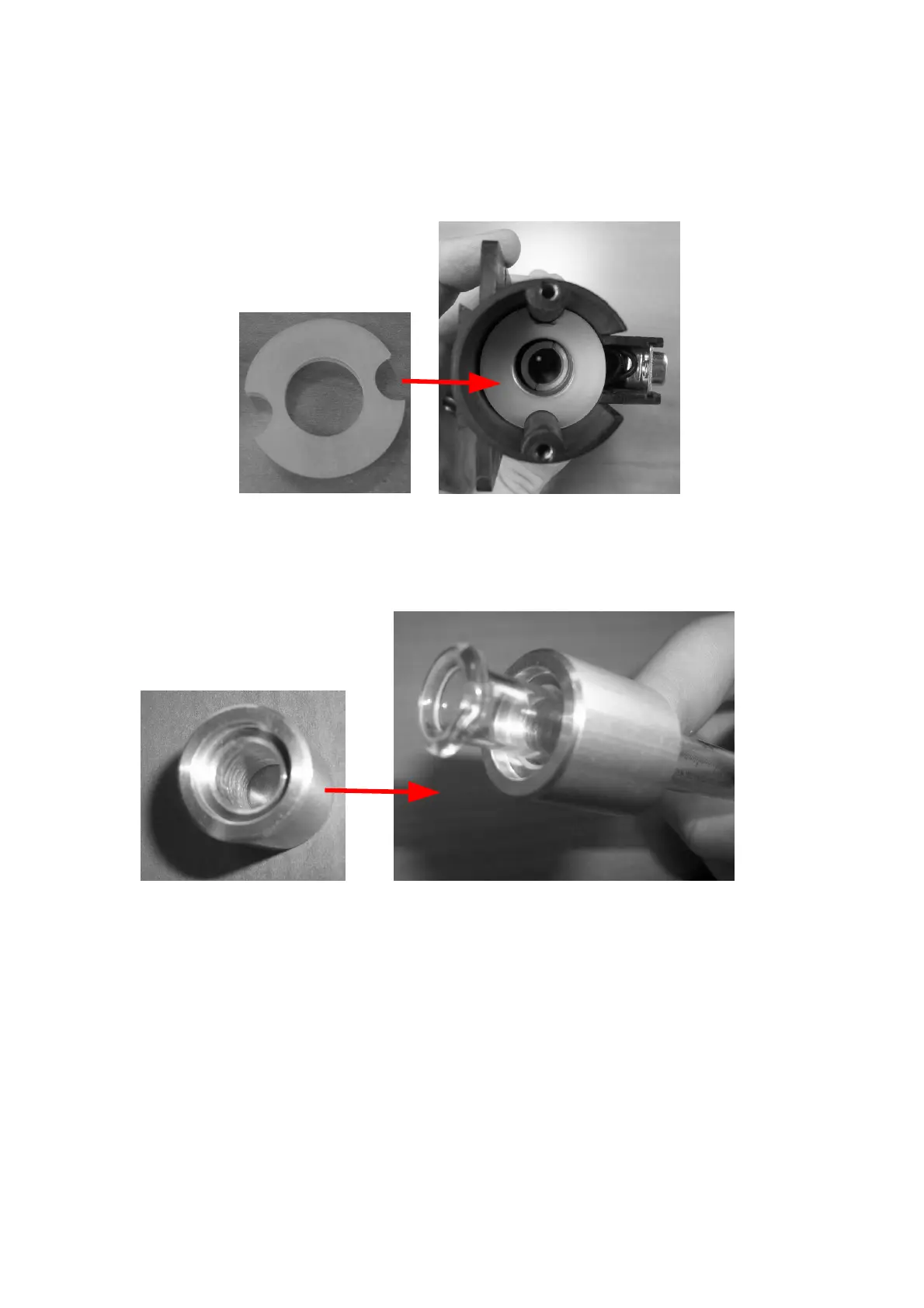

Figure 114: Insulating gasket positioning
8. Slide (from the needle side) the upper spacer (number 7 in Figure 115) inside the syringe
barrel (number 8 in Figure 115). Be careful to insert it in the correct orientation.
Figure 115: Upper spacer positioning
9. Also insert (sliding from the needle side) the syringe holder (number 6 in Figure 116). It
should offer a little resistance during insertion.
