HTA HT2000H - Page 141

HT2000H_en_n.doc Page 145 of 167

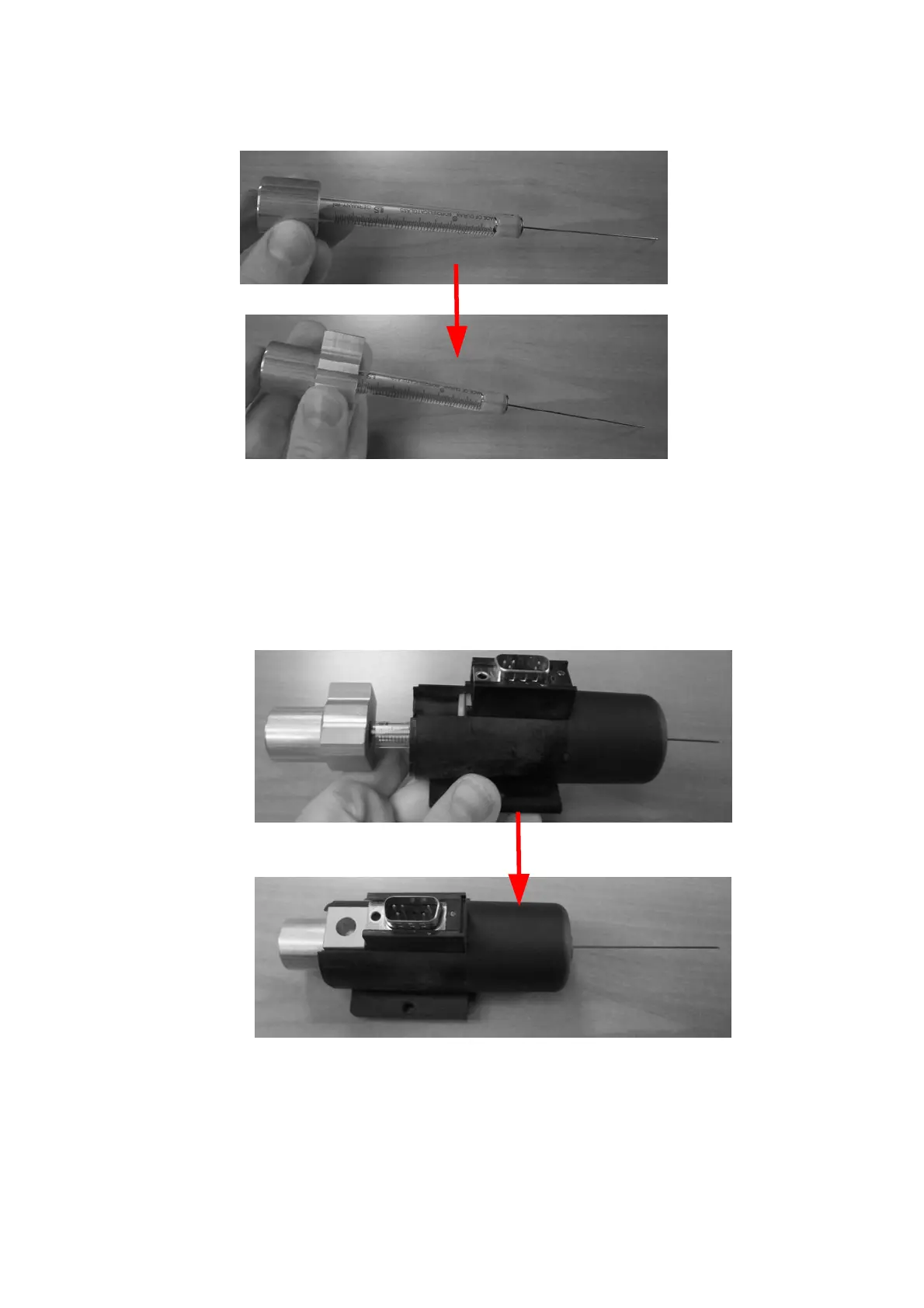

Figure 116: Syringe holder positioning
10. Insert the syringe barrel (number 8 in Figure 117), with the upper spacer (number 7 in
Figure 117) and the syringe holder (number 6 in Figure 117) mounted on it, in the heating
body. The needle has to be inserted through the hole in the bottom of the body.
Figure 117: Syringe barrel mounting inside the heating body
7
6
8
4
7
4
8
6
8
