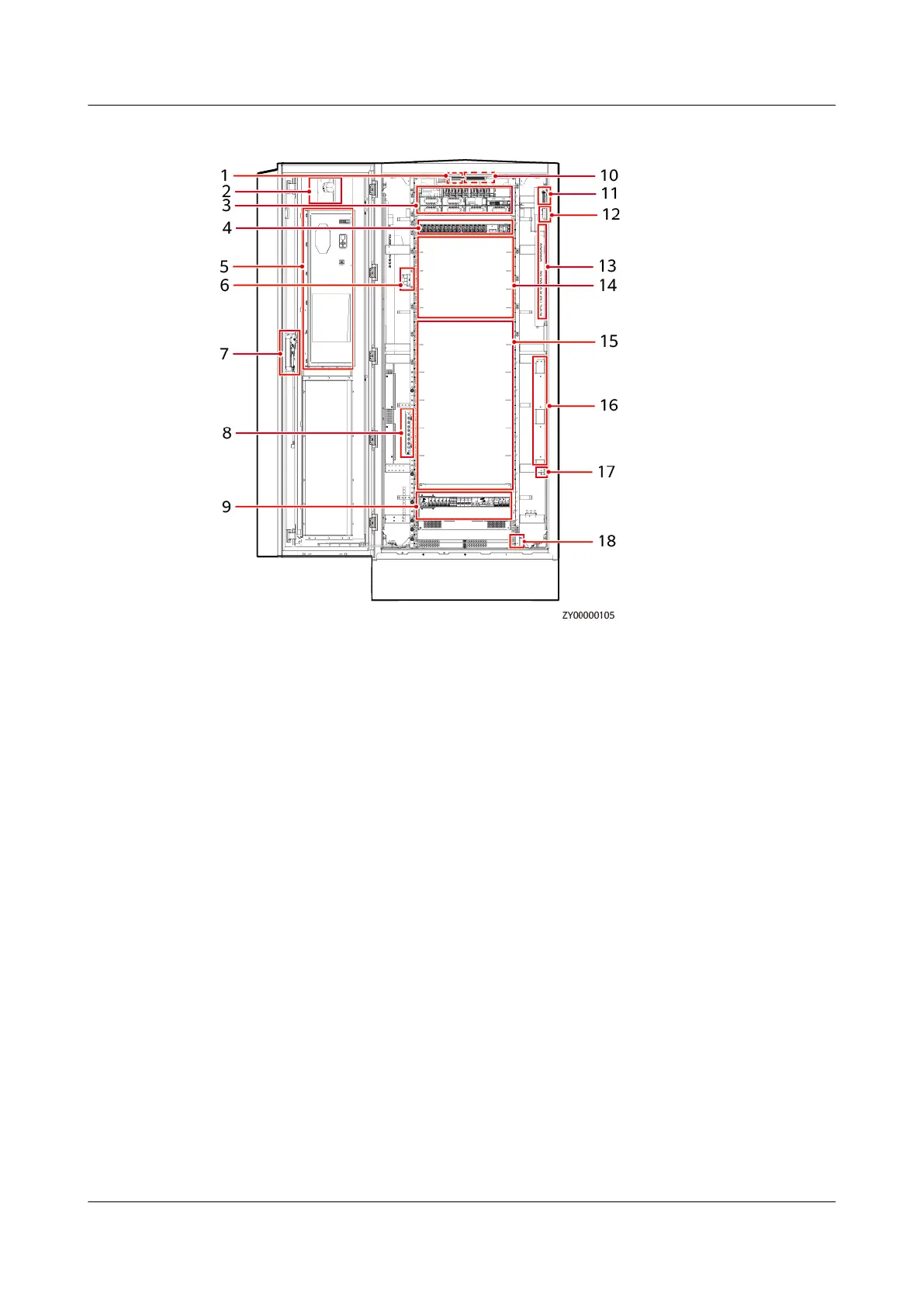

Figure 2-2 Internal structure (front door)
(1) Smoke sensor (2) Front door camera
(optional)
(3) ETP48400-C3B3/ETP48400-
C3B1
(4) DCDB48-200-16B (5) Space for the DC air
conditioner
(6) Digital temperature and
humidity sensor
(7) Electronic Lock (8) Ground bar (9) ACDB380-63-2B/ATS-63A2
(optional)
(10) Light (11) Smart ETH gateway
(optional)
(12) Door status sensor
(13) PDU2000-16-1PH-7
(optional)
(14) Space for customer
equipment
(15) Space for lithium batteries
(16) Lithium battery busbar (17) Vibration sensor (18) Water sensor
iSitePower Integrated Smart Site (ICC1000-A1-E1)
User Manual 2 Product Overview
