Hypertherm Powermax 125 Service Manual

110 Powermax125 Service Manual 808070
8 – Troubleshooting and System Tests

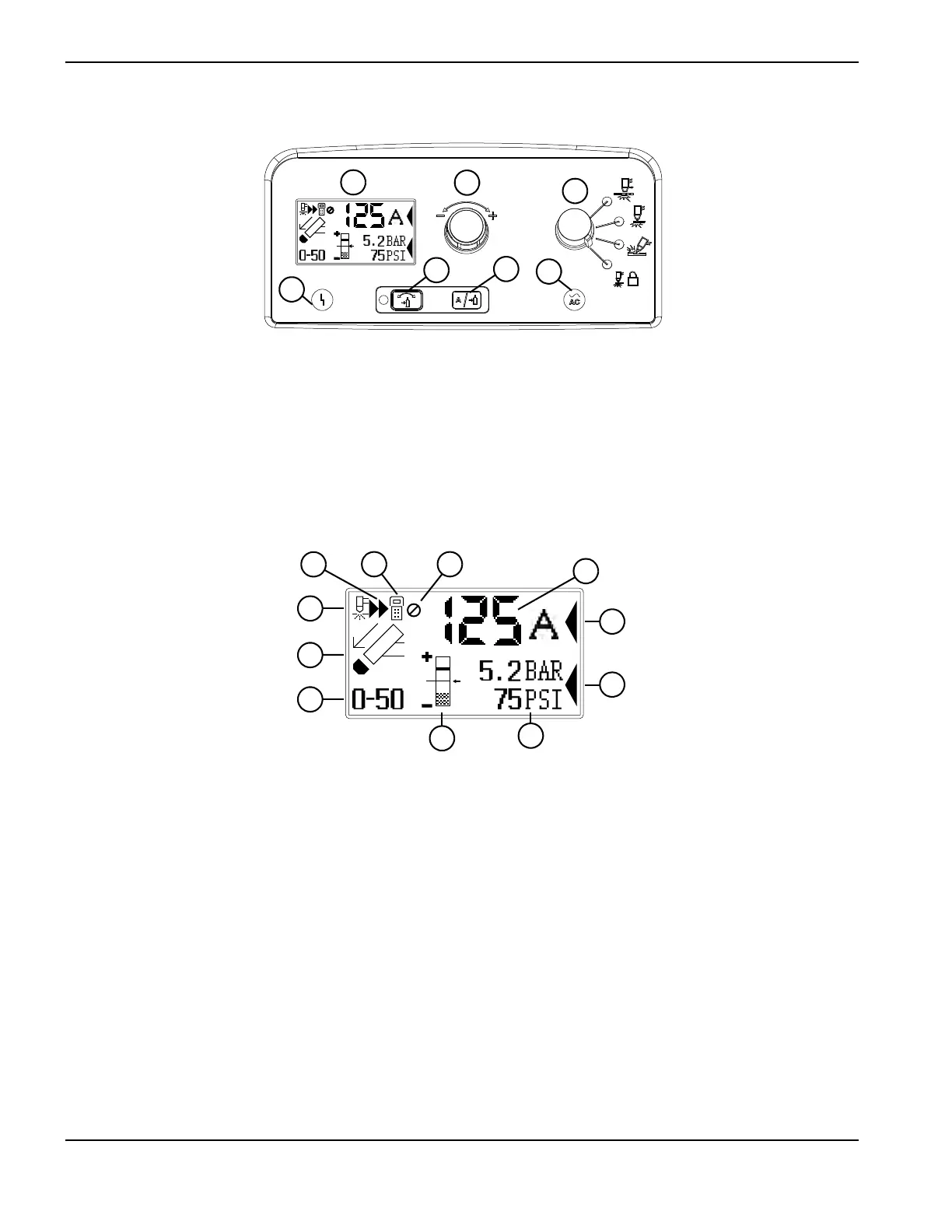

Front panel
Status screen
1
2
3
4
5
6
7
1 Status screen
2 Fault LED (yellow)
3 Automatic/manual pressure setting mode selector
4 Current/gas selector
5 Power ON LED (green)
6 Operating mode switch
7 Adjustment knob
1
2
3
4
5
6
7
8
9
1011
1 Torch is cutting
2 Torch start
3 Fault icon
4 Fault code
5 Visual pressure setting
6 Pressure setting
7 Pressure selection cursor
8 Current selection cursor
9 Current setting (amperage)
10 Electrode end of life detection manually disabled
11 Remote connected

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
