Hypertherm Powermax 125 Service Manual

174 Powermax125 Service Manual 808070
9 – Power Supply Component Replacement
Replacing the end panel bracket
Remove the end panel bracket
1. Complete the following procedures:
a. See Disconnect the power and gas supply on page 166.
b. See Remove the power supply cover on page 172.
c. See Remove the component barrier on page 173.
2. Remove the 2 mounting screws from the end panel bracket .
3. Lift the end panel bracket straight up from the power supply.

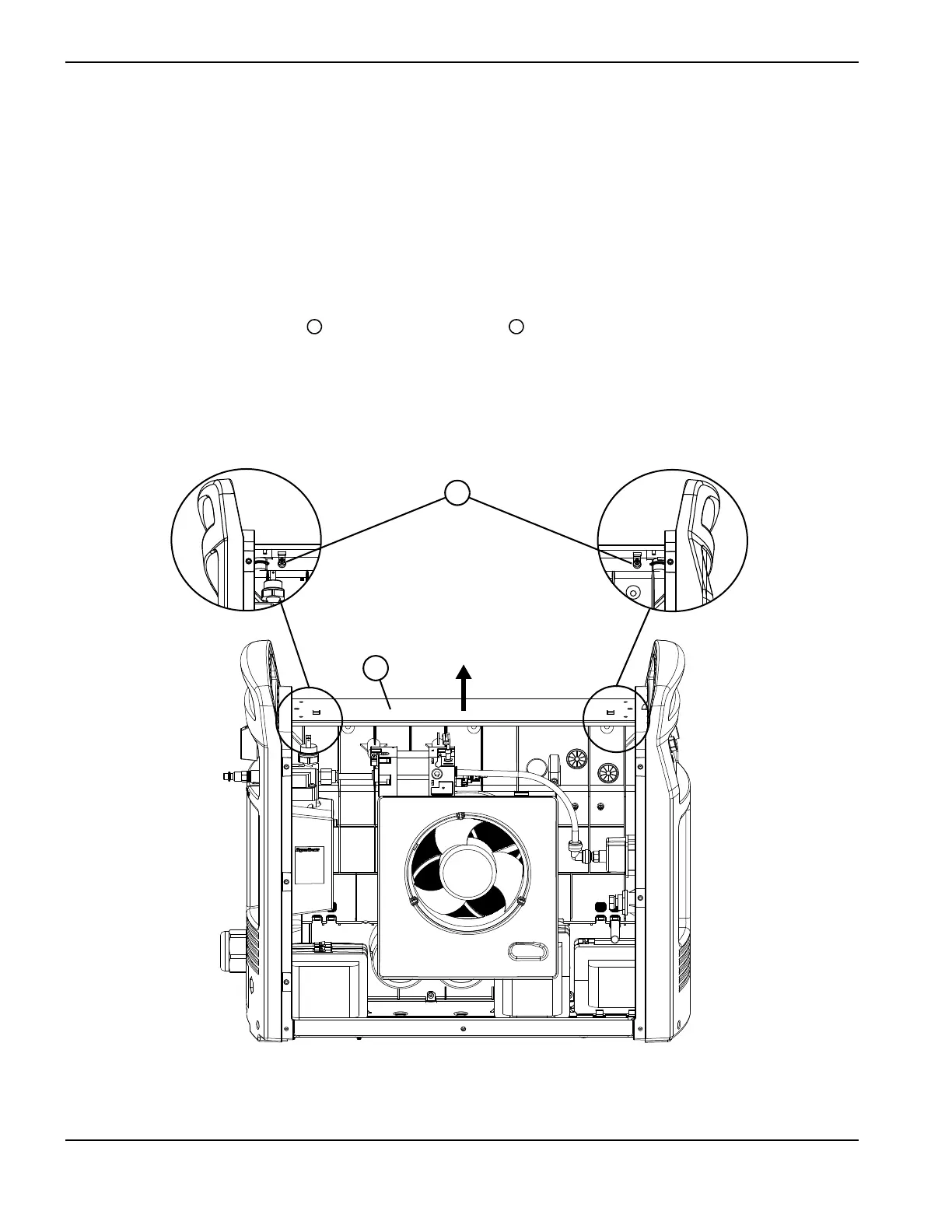

Figure 41
1
2
1
2

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
