Hypertherm Powermax 125 Service Manual

Powermax125 Service Manual 808070 59

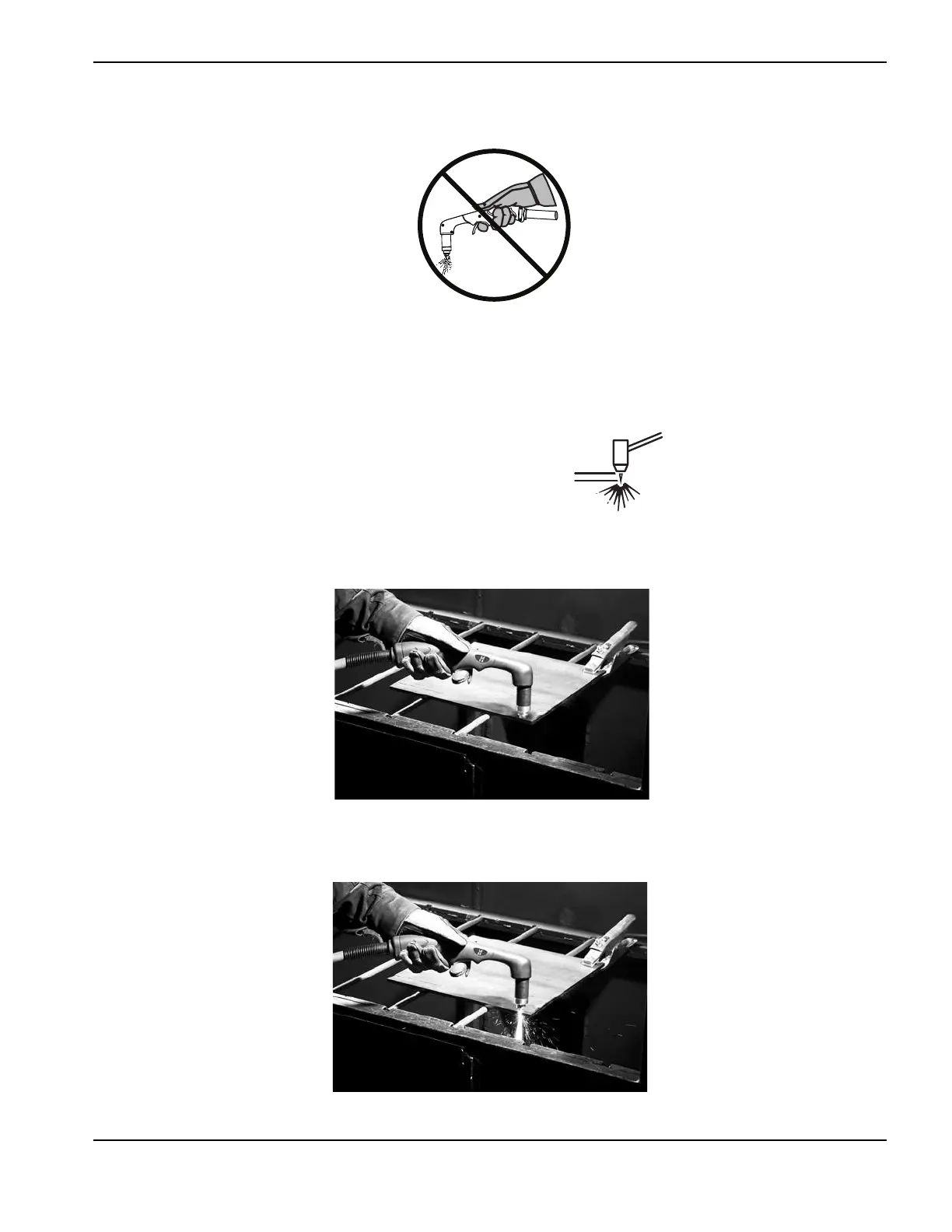

5 – Hand Cutting
 If you fire the torch unnecessarily, you will shorten the life of the nozzle and electrode.
 Pulling, or dragging, the torch along the cut is easier than pushing it.
 For straight-line cuts, use a straight edge as a guide. To cut circles, use a template or a radius cutter attachment (a
circle cutting guide).
Start a cut from the edge of the workpiece
1. With the ground clamp attached to the workpiece, hold the torch nozzle perpendicular (90°) to the edge of the
workpiece.
2. Press the torch’s trigger to start the arc. Pause at the edge until the arc has cut completely through the workpiece.

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
