Hypertherm Powermax 125 Service Manual

288 Powermax125 Service Manual 808070
10 – Torch Component Replacement
Replacing the torch body
Remove the torch body
1. Complete the following procedures:
a. See Disconnect the power, gas supply, and torch on page 266.
b. See Remove the mounting sleeve on page 285.
c. See Remove the cap sensor switch on page 287.

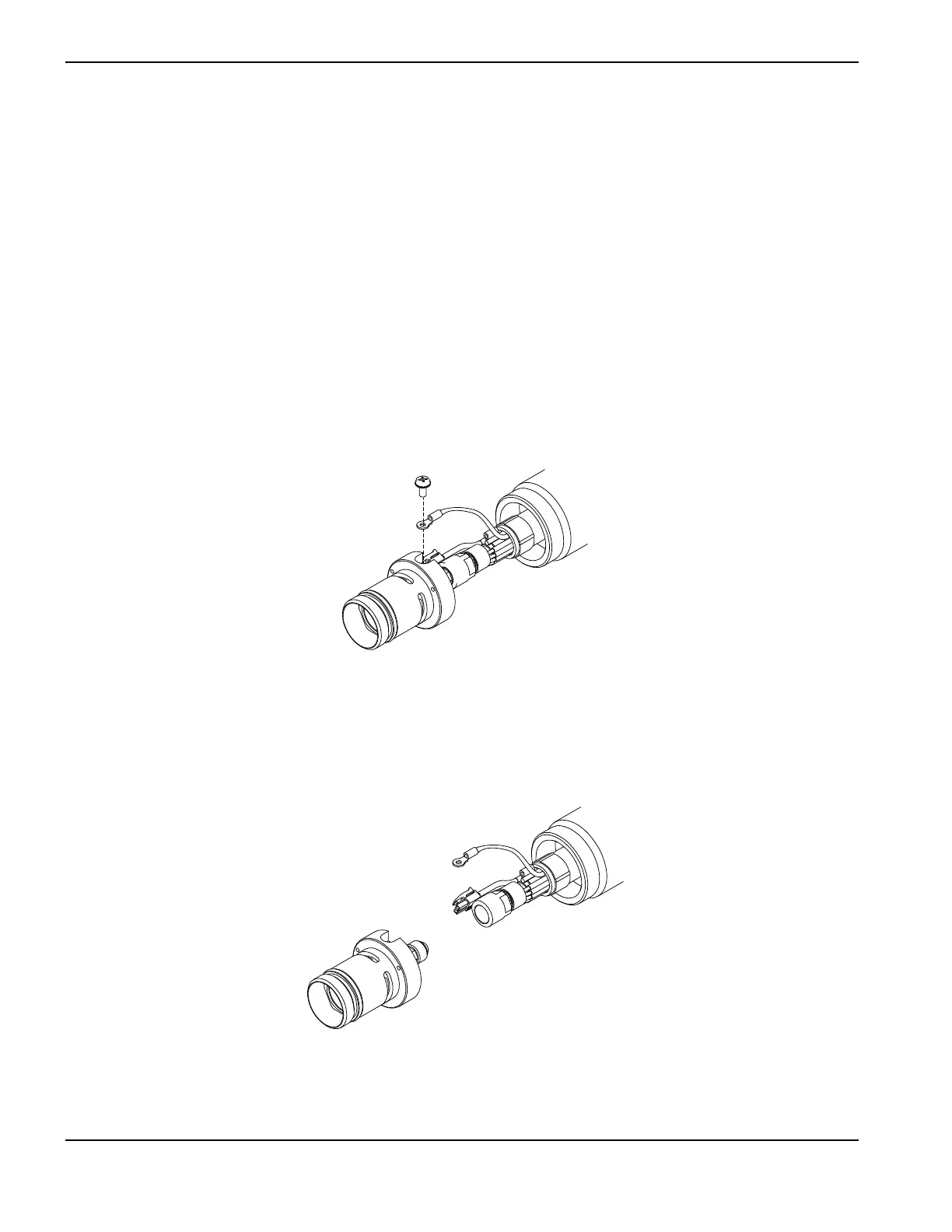

2. Remove the pilot terminal screw and wire. Set the screw aside.
Figure 146
3. Using a 3/8-inch and 1/2-inch wrench together (or 2 adjustable wrenches), loosen the nut that secures the gas
supply line to the torch to remove the torch body.
Figure 147
Kit Description
428147 Kit: Duramax Hyamp 180° machine torch main body replacement

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
