4 – Hand Torch Setup

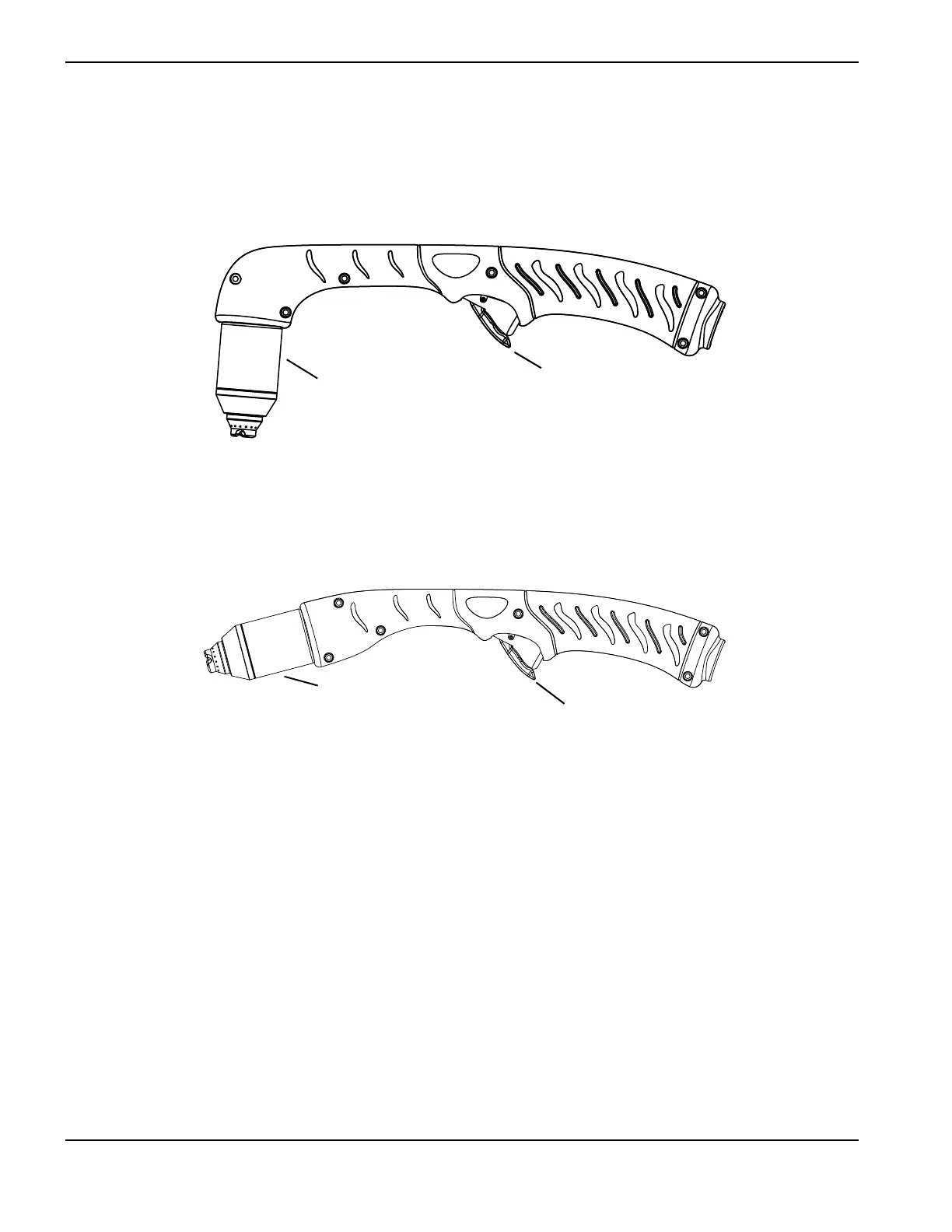

Hand torch components
The hand torches ship without consumables installed.
Duramax Hyamp 85° hand torch
Duramax Hyamp 15° hand torch
Choose the hand torch consumables
Hypertherm includes a starter consumable kit and a box of spare electrodes and nozzles with your system. Both styles of
hand torches shown above use the same consumables.
Hand torches use shielded consumables. Therefore, you can drag the torch tip along the metal.
Consumables for hand cutting are shown below. Notice that the retaining cap and electrode are the same for cutting,
gouging, and FineCut
®
applications. Only the shield, nozzle, and swirl ring are different.
For the best cut quality on thin materials (approximately 4 mm/10 GA or less), you may prefer to use FineCut
consumables, or use a 45 A nozzle and reduce the amperage to that setting.
Consumables
Safety trigger
Consumables
Safety trigger
