Hypertherm Powermax 125 Service Manual

68 Powermax125 Service Manual 808070
6 – Machine Torch Setup

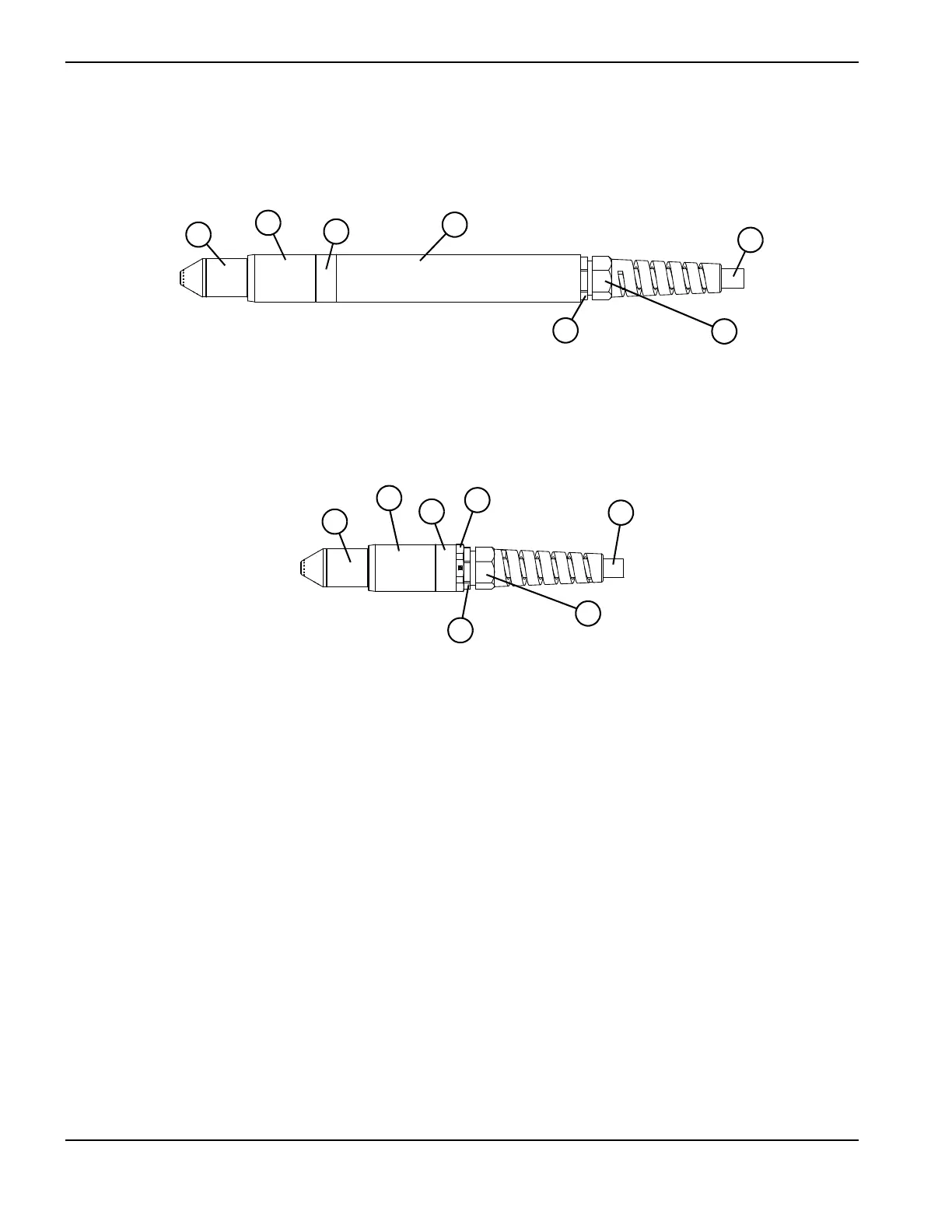

Machine torch components
Duramax Hyamp 180° machine torch
See the following callout table.
Duramax Hyamp 180° mini machine torch
Before using either style of machine torch, you must:
 Mount the torch on your cutting table or other equipment.
 Choose and install the consumables.
 Align the torch square to the plate.
 Attach the torch lead to the power supply.
 Set up the power supply for remote starting with either the remote-start pendant or a machine interface cable.
1
2
3
4
6
8
7
1
4
5
8
3
7
2
1 Consumables
2 Strain relief
3 Strain relief nut
4 Torch lead
5 Adapter (not used in the full-length machine torch)
6 Positioning sleeve (not used in the mini machine
torch)
7 Coupler
8 Mounting sleeve

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
