Hypertherm Powermax 125 Service Manual

312 Powermax125 Service Manual 808070
11 – Parts

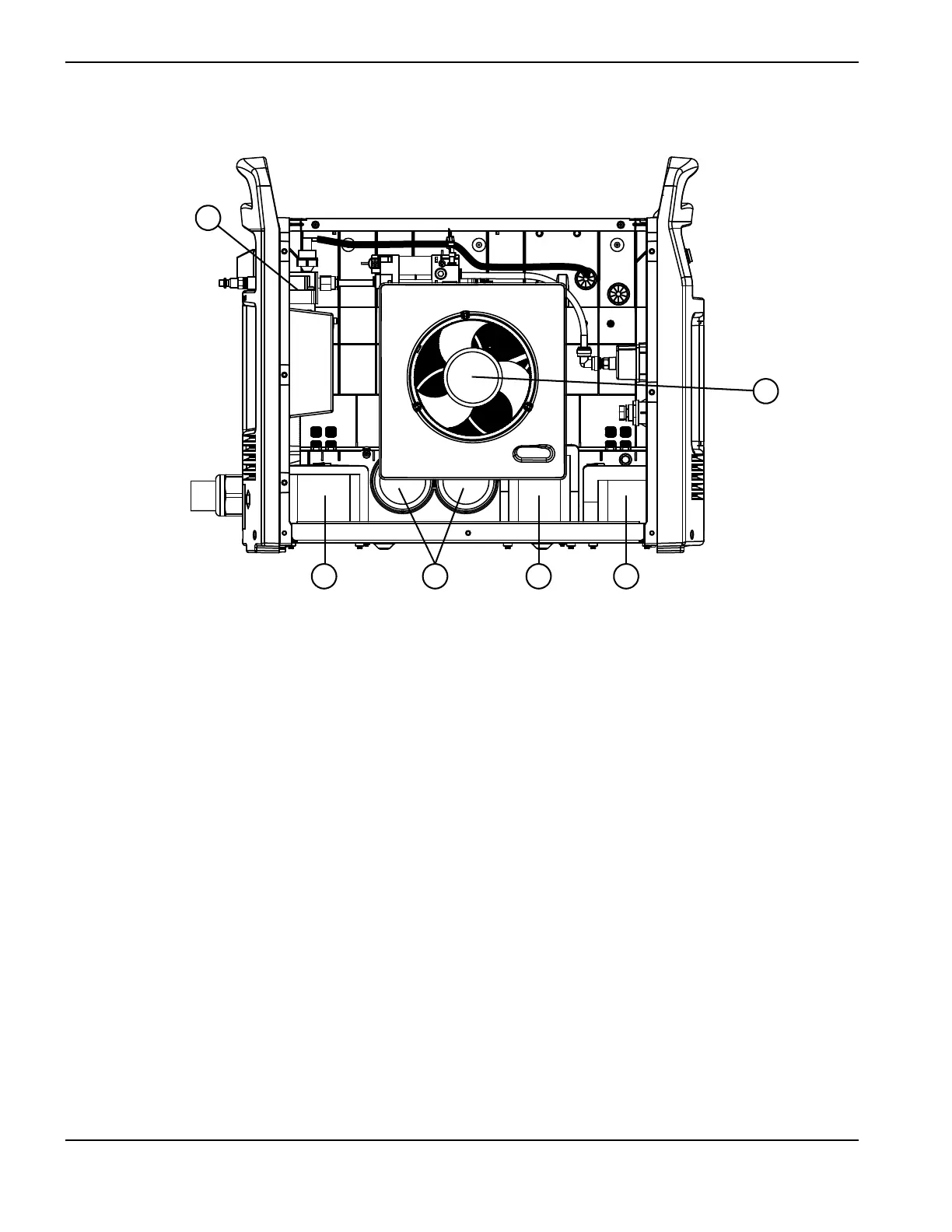

Power supply, fan side
Part Number Description
1 228685 Kit: Powermax65/85/105/125 gas filter assembly
2 228881 Kit: Powermax105/125 fan assembly
3 428125 Kit: Powermax125 output inductor
4 428130 Kit: Powermax125 transformer 600 V CSA
4 428128 Kit: Powermax125 transformer 400 V CE/380 V CCC
5 228888 Kit: Powermax105 bulk capacitor CSA, 230 – 400 V CE;
Powermax125 bulk capacitor 600 V CSA
5 428136 Kit: Powermax125 bulk capacitor 480 V CSA
5 428135 Kit: Powermax125 bulk capacitor 400 V CE/380 V CCC
6 428127 Kit: Powermax125 PFC inductor 480 V/600 V CSA
6 428126 Kit: Powermax125 PFC inductor 400 V CE/380 V CCC
1
3
2
456

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
