Hypertherm Powermax 125 Service Manual

Powermax125 Service Manual 808070 311
11 – Parts
400 V CE/380 V CCC

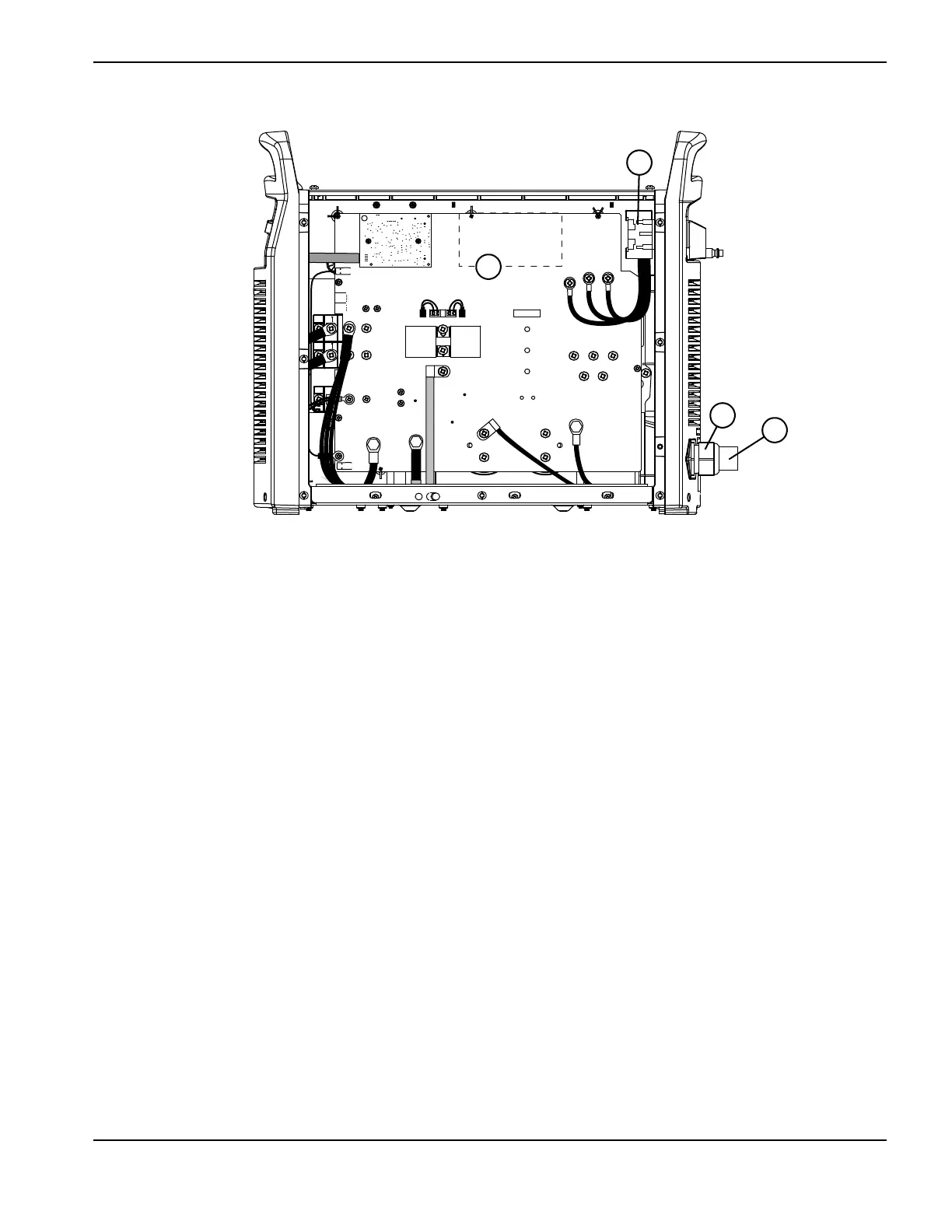

Part Number Description
1 428122 Kit: Powermax125 power board 400 V CE/380 V CCC (141207)
2 228880 Kit: Powermax105/125 power switch 400 V CE/380 V CCC/480 V, 600 V CSA
3 228913 Kit: Powermax105 power cord strain relief 230 – 400 V CE;
Powermax125 power cord strain relief 400 V CE
4 228886 Kit: Powermax105 power cord with strain relief 230 – 400 V CE;
Powermax125 power cord with strain relief 400 V CE
J22 J21 J20 J19
J27
WORK
LEAD
J26
J25
+
_
+
_
RED
J18
ORG
J17
J32
J11
J28
TP7
TP9
TP8
W
R
B
1
2
3
4

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
