54 Powermax125 Service Manual 808070
4 – Hand Torch Setup

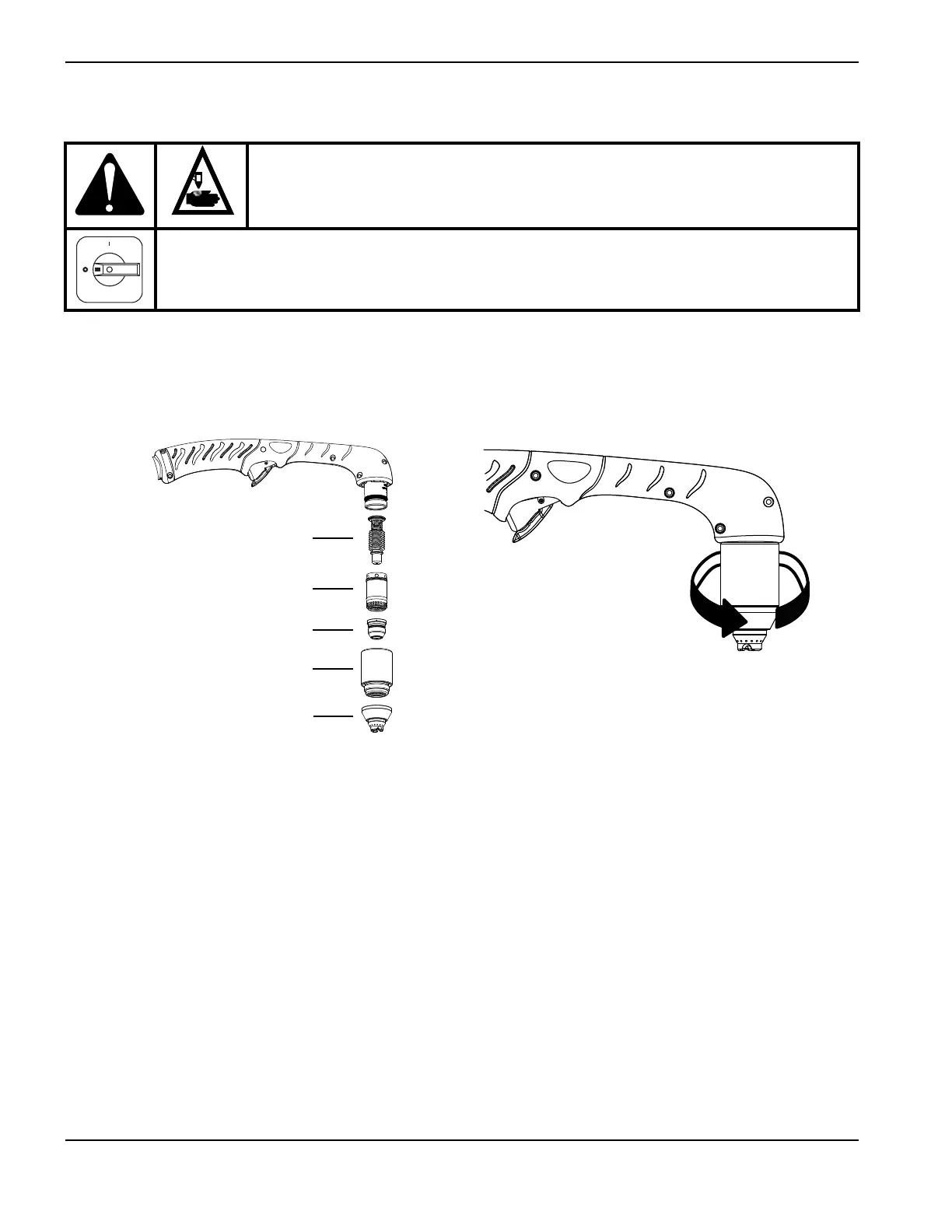

Install the hand torch consumables
To operate the hand torch, a complete set of consumable parts must be installed: shield, retaining cap, nozzle, electrode,
and swirl ring. Torches ship without consumables installed. Pull off the vinyl cap before installing your consumables.
With the power switch in the OFF (O) position, install the Powermax125 torch consumables as shown.
WARNING!
INSTANT-ON TORCHES
PLASMA ARC CAN CAUSE INJURY AND BURNS
The plasma arc comes on immediately when the torch trigger is activated. Make sure the
power is OFF before changing consumables.
Shield
Retaining cap
Nozzle
Electrode
Swirl ring

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
