Hypertherm Powermax 125 Service Manual

60 Powermax125 Service Manual 808070
5 – Hand Cutting

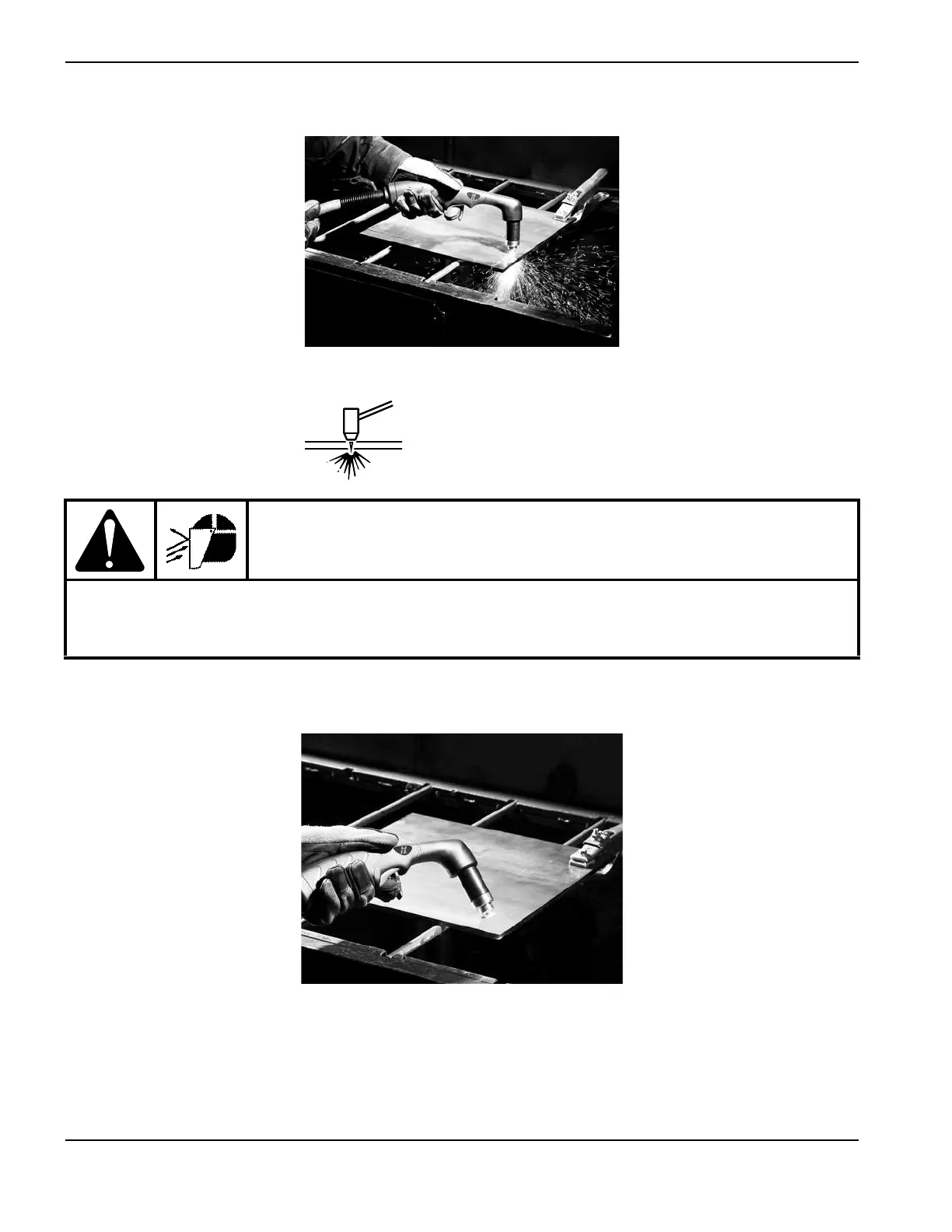

3. Drag the torch tip lightly across the workpiece to proceed with the cut. Maintain a steady, even pace.
Pierce a workpiece
1. With the ground clamp attached to the workpiece, hold the torch at an approximate 30° angle to the workpiece with
the torch tip within 1.5 mm (1/16 inch) of the workpiece before firing the torch.
WARNING!
SPARKS AND HOT METAL CAN INJURE EYES AND BURN SKIN
When firing the torch at an angle, sparks and hot metal will spray out from the nozzle. Point the torch
away from yourself and others. Always wear proper protective equipment including gloves and eye
protection.

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
