46 Powermax125 Service Manual 808070
3 – Basic System Operations

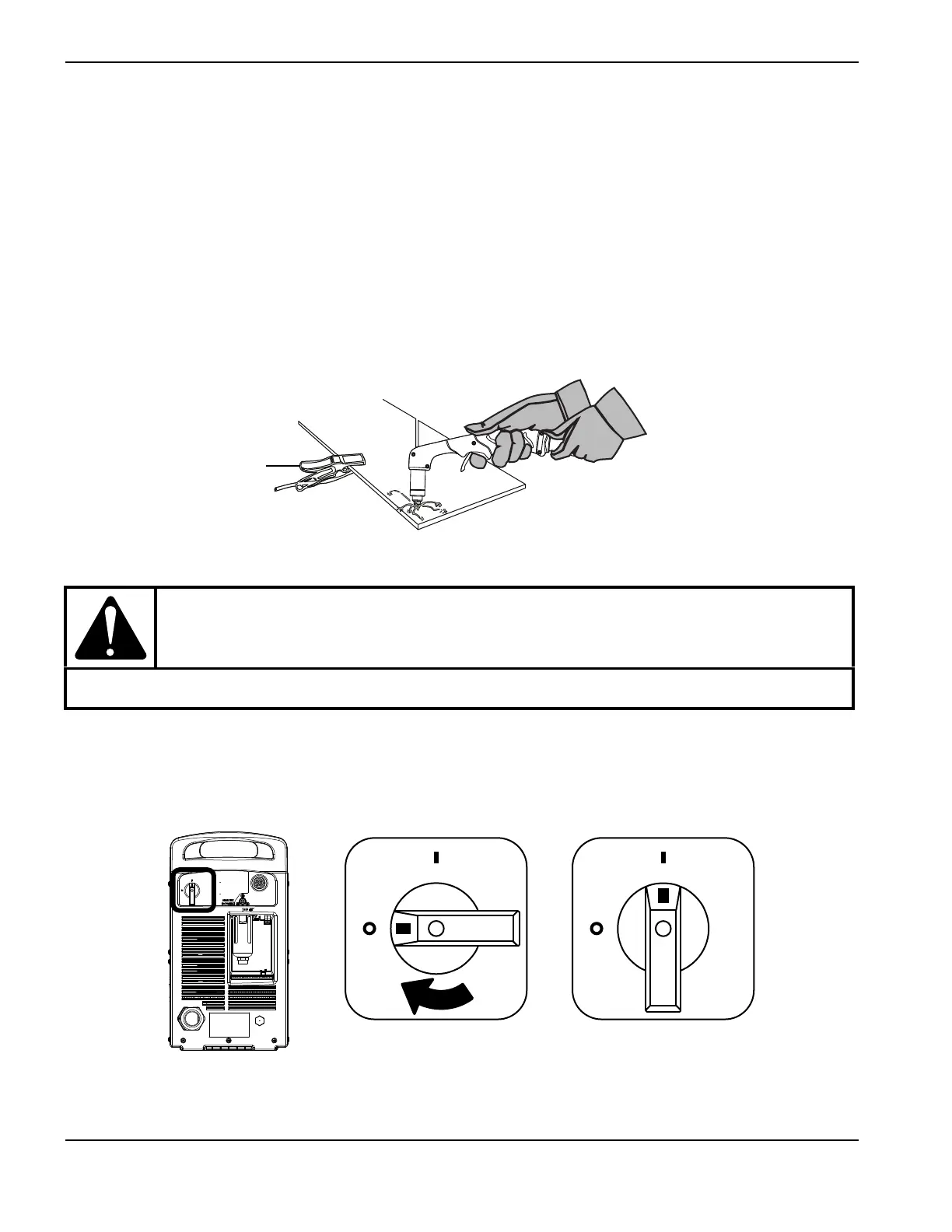

Attach the ground clamp to the workpiece
The ground clamp must be connected to the workpiece while you are cutting. If you are using the Powermax with a
cutting table, you can connect the work lead directly to the table instead of attaching the ground clamp to the workpiece.
See your table manufacturer’s instructions.

Make sure that the ground clamp and the workpiece make good metal-to-metal contact.
Remove rust, dirt, paint, coatings, and other debris to ensure the work lead makes proper
contact with the workpiece.

For the best cut quality, attach the ground clamp as close as possible to the area being
cut.
Turn on the system
Set the ON/OFF switch to the ON (I) position.
CAUTION!
Do not attach the ground clamp to the portion of the workpiece to be cut away.
Ground clamp
OFF
ON

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
