Hypertherm Powermax 125 Service Manual

Powermax125 Service Manual 808070 267
10 – Torch Component Replacement
Hand torches
For this system there are 2 hand torches that can be used. (See Figure 119 – 85° hand torch and
Figure 120 – 15° hand torch.)

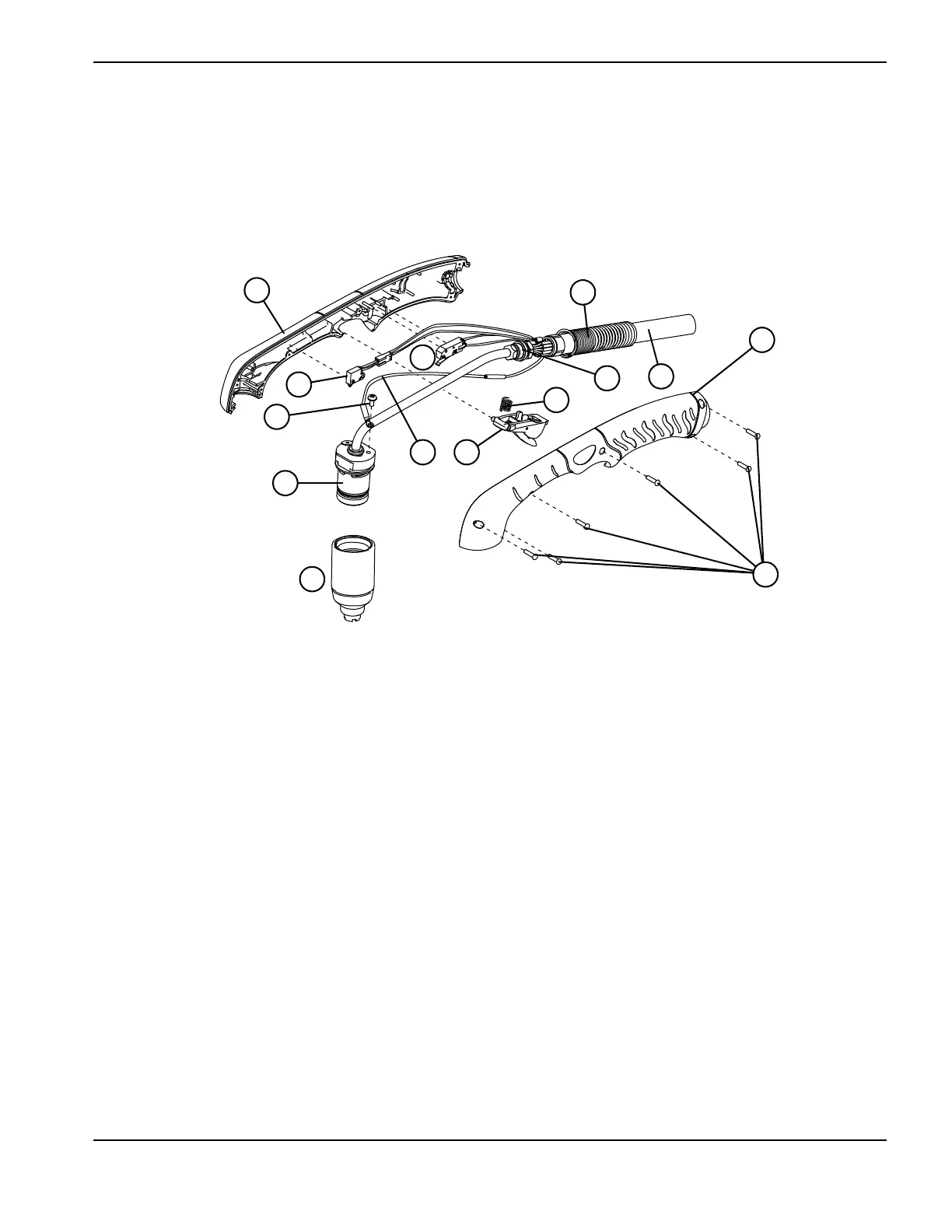

Figure 119 – 85° hand torch
2
4
5
6
8
3
1
7
9
10
11
12
13
14
1 Right side of the handle
2 Cap-sensor switch
3 Start switch
4 Pilot terminal screw
5 Torch body
6 Consumables
7 Pilot arc wire
8 Trigger
9 Spring
10 Screws (6)
11 Left side of the handle
12 Torch lead
13 Gas hose fitting’s flange
14 Strain relief

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
