Hypertherm Powermax 125 Service Manual

268 Powermax125 Service Manual 808070
10 – Torch Component Replacement

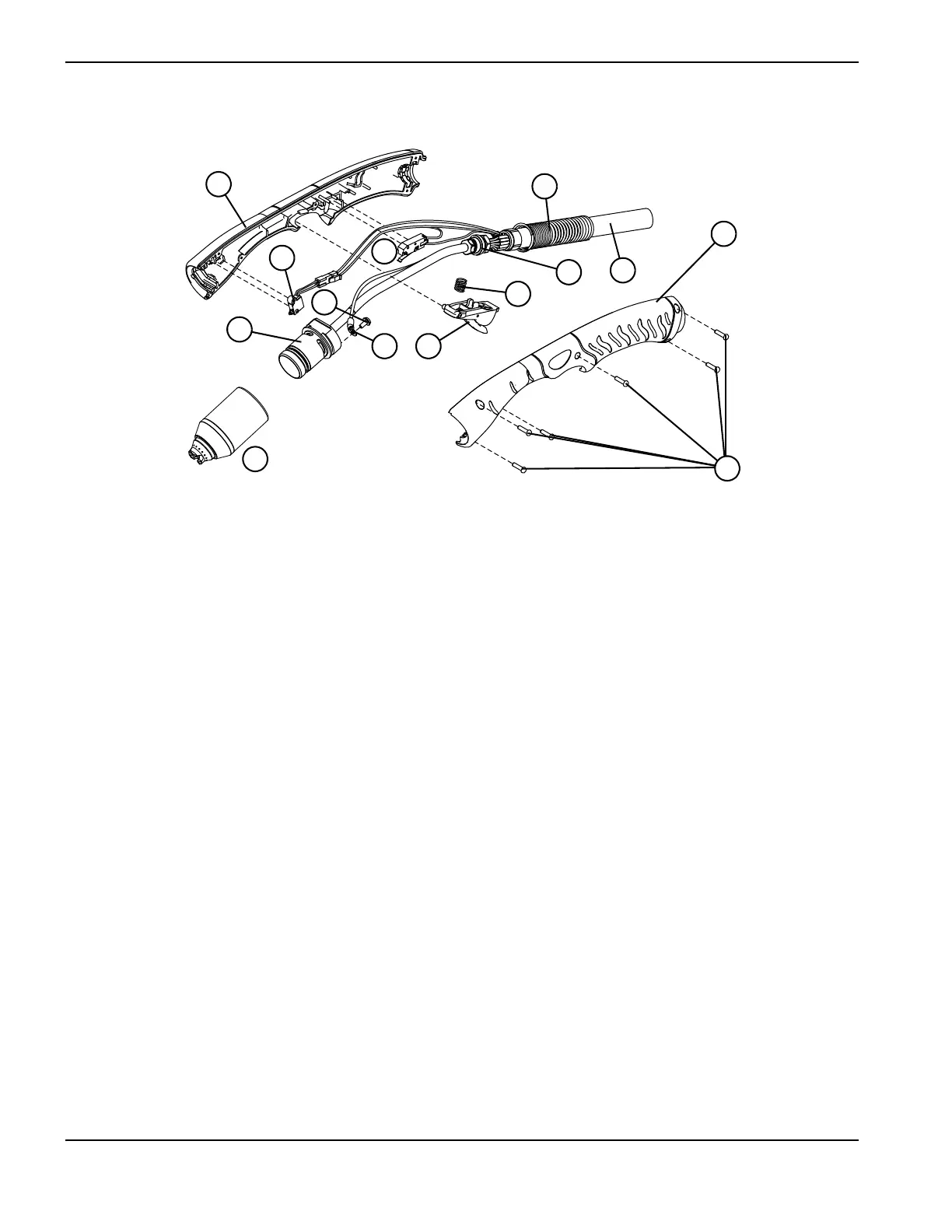

Figure 120 – 15° hand torch
2
4
5
6
8
3
1
7
9
10
11
12
13
14
1 Right side of the handle
2 Cap-sensor switch
3 Start switch
4 Pilot terminal screw
5 Torch body
6 Consumables
7 Pilot arc wire
8 Trigger
9 Spring
10 Screws (6)
11 Left side of the handle
12 Torch lead
13 Gas hose fitting’s flange
14 Strain relief
