Hypertherm Powermax 125 Service Manual

Powermax125 Service Manual 808070 299
11 – Parts

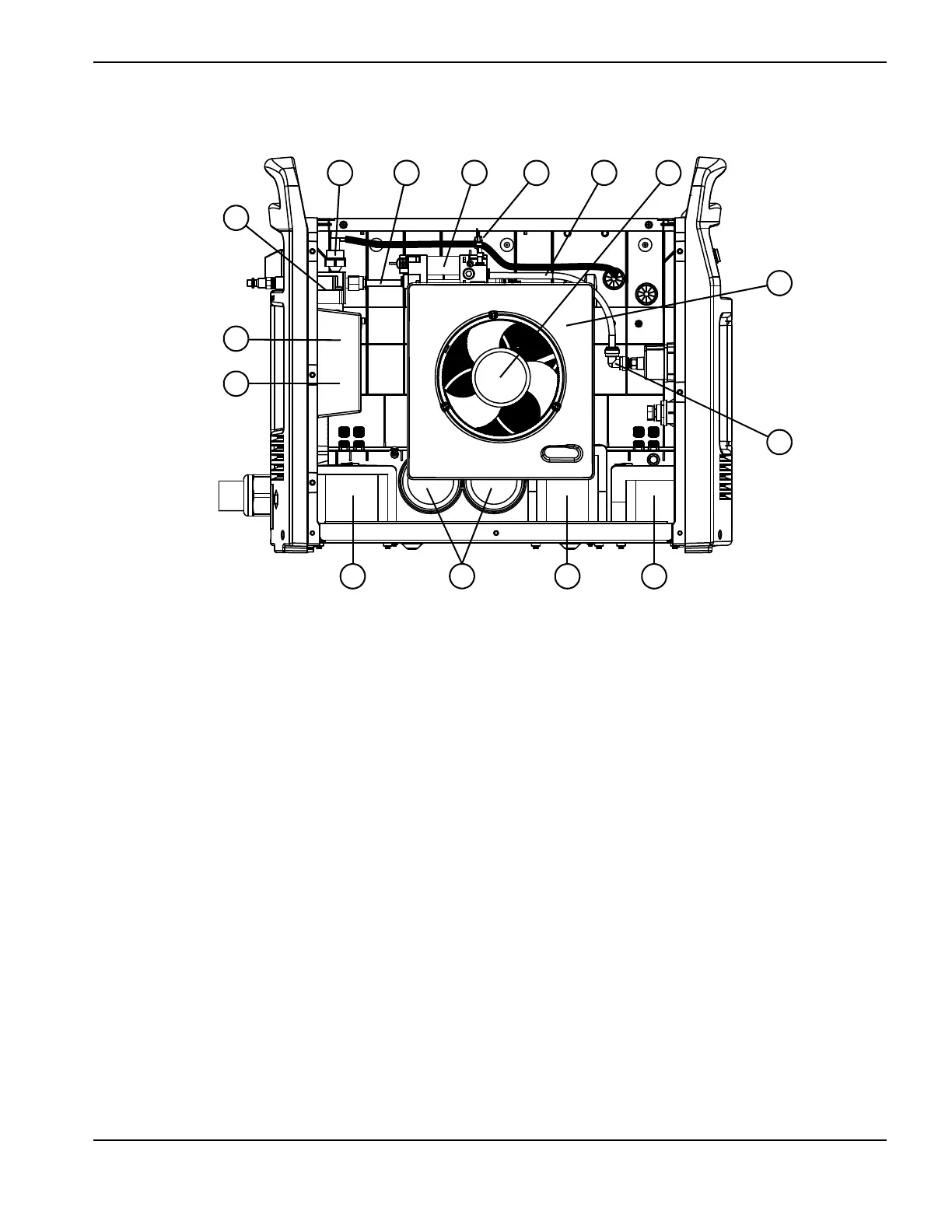

Interior, fan side
Part Number Description
1 228685 Kit: Powermax65/85/105/125 gas filter assembly
2 428015 Kit: AF30 gas filter bowl/guard
3 228695 Kit: Powermax65/85/105/125 gas filter element (inside filter bowl)
4 228910 Kit: Powermax105/125 fan shroud
5 228881 Kit: Powermax105/125 fan assembly
6 228689 Kit: Powermax65/85/105/125 pressure transducer
7 228882 Kit: Powermax105/125 regulator/solenoid valve
8 228688 Kit: Powermax65/85/105/125 pressure switch
9 428129 Kit: Powermax125 transformer 480 V CSA
9 428130 Kit: Powermax125 transformer 600 V CSA
9 428128 Kit: Powermax125 transformer 400 V CE/380 V CCC
10 228888 Kit: Powermax105 bulk capacitor CSA, 230 – 400 V CE;
Powermax125 bulk capacitor 600 V CSA
10 428136 Kit: Powermax125 bulk capacitor 480 V CSA
10 428135 Kit: Powermax125 bulk capacitor 400 V CE/380 V CCC
1
3
2
4
56
7
8
9
10
11 11
12
13 14

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
