Hypertherm Powermax 125 Service Manual

310 Powermax125 Service Manual 808070
11 – Parts
Safety-critical parts
Genuine Hypertherm parts are factory-recommended parts for your Hypertherm system. Any damage caused by the use
of parts that are not from Hypertherm may not be covered by the Hypertherm warranty. In addition, the following parts are
safety-critical parts that must be replaced only with genuine Hypertherm parts to maintain the warranty and system
certifications, including CE, CSA, and CCC certification.

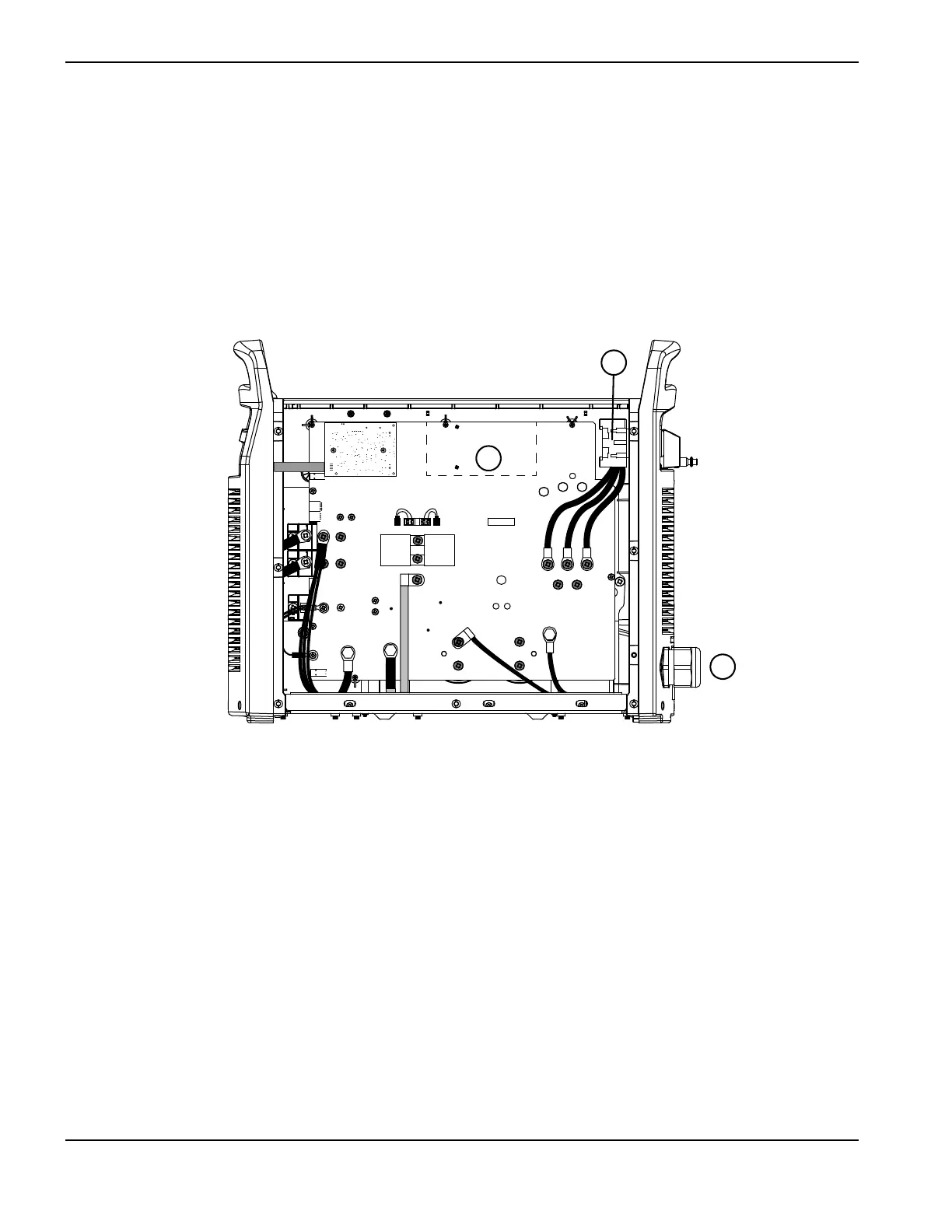

Power supply, power board side
480 V, 600 V CSA
Part Number Description
1 428123 Kit: Powermax125 power board 480 V CSA (141204)
1 428124 Kit: Powermax125 power board 600 V CSA (141290)
2 228880 Kit: Powermax105/125 power switch 400 V CE/380 V CCC/480 V, 600 V CSA
3 428121 Kit: Powermax125 power cord with strain relief 480 V and 600 V CSA
J22 J21 J20 J19
J27
WORK
LEAD
J26
J25
+
_
+
_
RED
J18
ORG
J17
RED
J32
J11
B
R
J28
C152 C151
TP7
TP9
TP8
W
R
B
1
2
3
