Hypertherm Powermax 125 Service Manual

28 Powermax125 Service Manual 808070
1 – Specifications

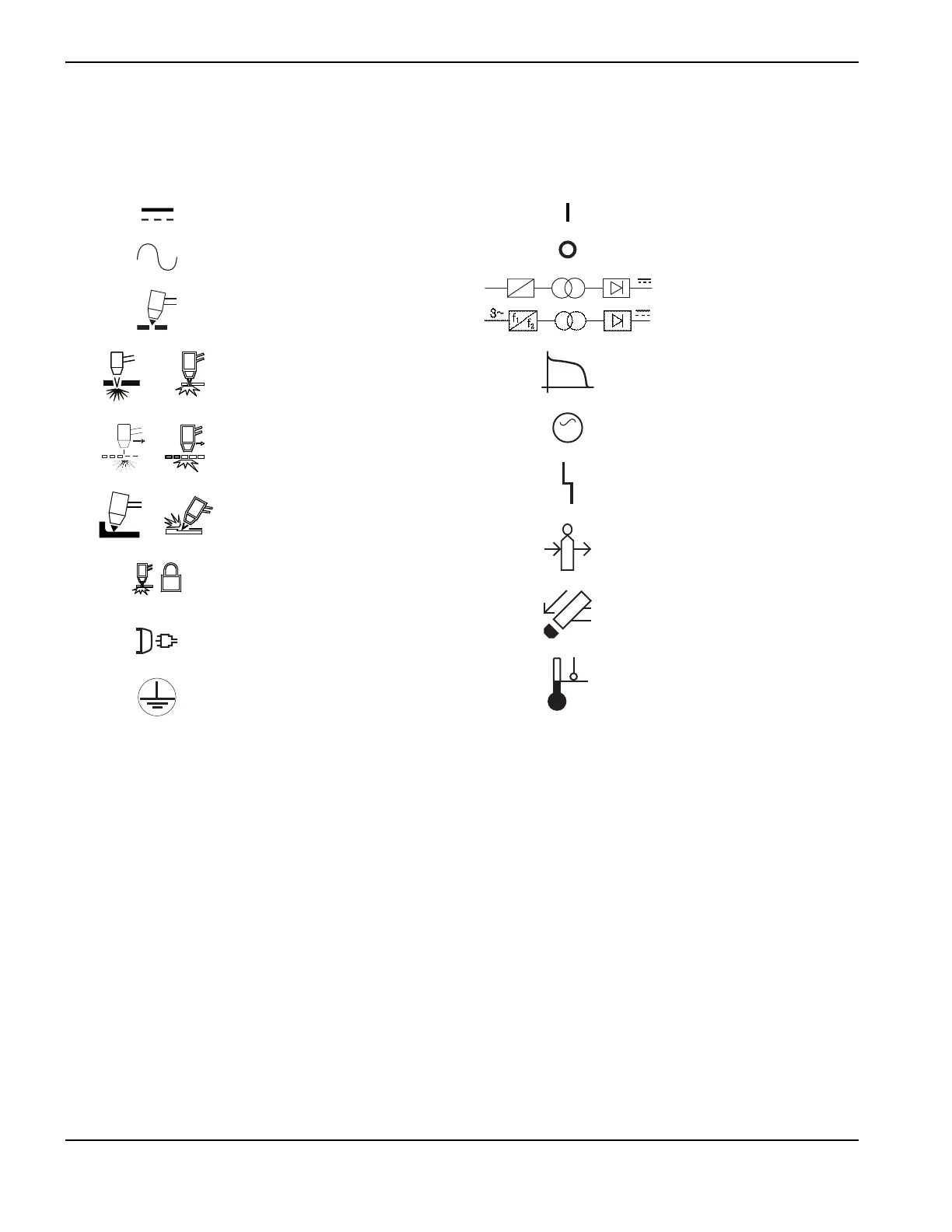

IEC symbols
The following symbols may appear on the power supply data plate, control labels, switches, LEDs, and LCD screen.
Direct current (DC)
Alternating current (AC)
Plasma torch cutting
Plate metal cutting
Expanded metal cutting
Gouging
Torch lock
AC input power connection
The terminal for the external
protective (earth) conductor
Power is ON
Power is OFF
An inverter-based power
source, either 1-phase or
3-phase
Volt/amperage curve,
“drooping” characteristic
Power is ON (LED)
System fault (LED)
Inlet gas pressure fault (LCD)
Missing or loose
consumables (LCD)
Power supply is out of
temperature range (LCD)
f
1
f
2
1~
AC
AC

Hypertherm Powermax 125 Specifications

General

Output Current	30-125 A
Input Power	15.2 kW
Open Circuit Voltage	300 VDC
Gas Supply	Clean, dry, oil-free air or nitrogen
Input Power Cable Length	10 ft (3 m)
Rated Output Current	125 A
Gas Type	Air or nitrogen
Cutting Capacity	1-1/4 inch (32 mm)
Pierce Capacity	1 inch (25 mm)
Input Voltage	200-600 V, 3-PH
Duty Cycle	100% @ 125 A
Certifications	CSA
Maximum Clean Cut Thickness	1-1/4 inch (32 mm)
Cooling Method	Fan-cooled
Torch Options	Hand
