Hypertherm Powermax 125 Service Manual

298 Powermax125 Service Manual 808070

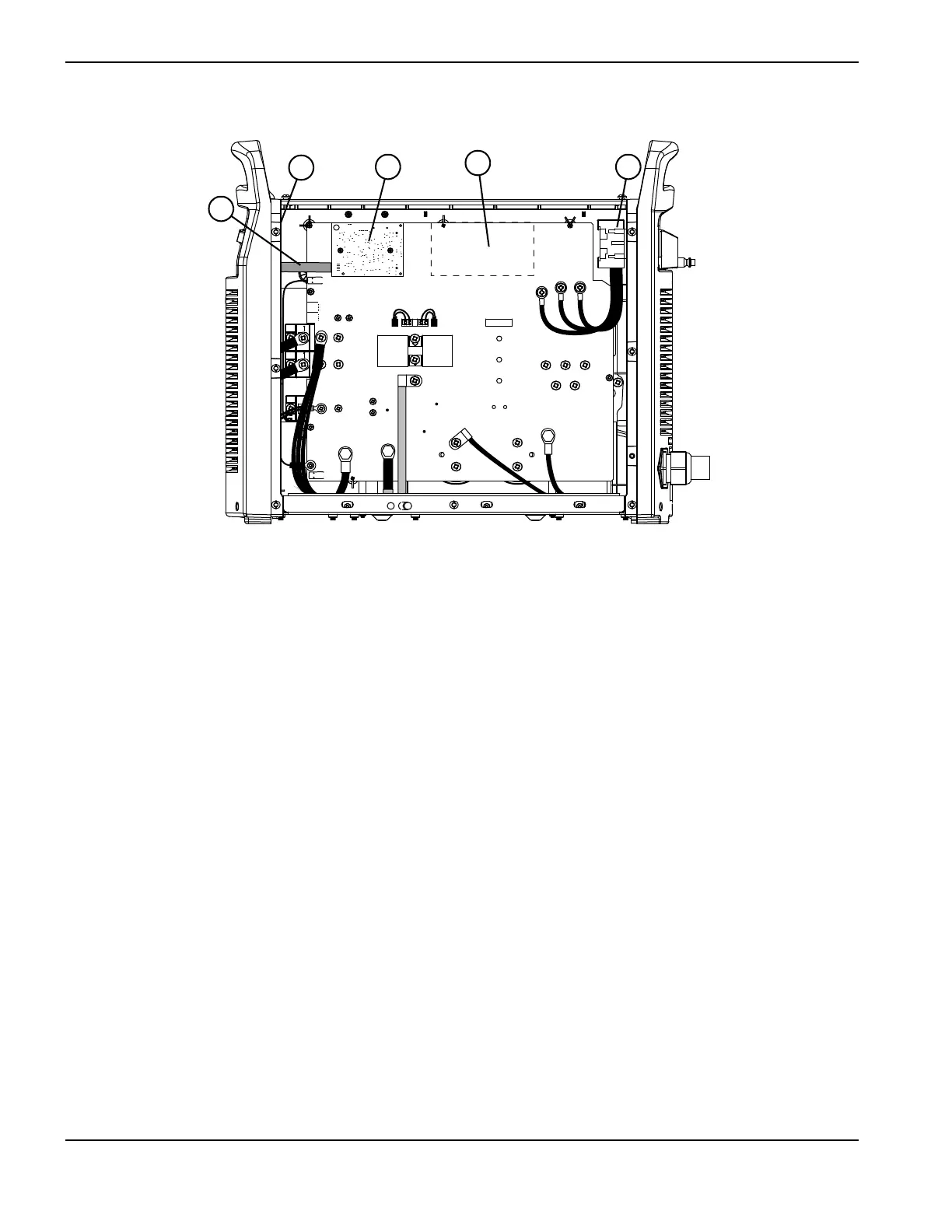

11 – Parts
400 V CE/380 V CCC
Part Number Description
1 428068 Kit: Powermax65/85/105/125 ribbon cable
2 228657 Kit: Powermax65/105/125 control board (141100)
3 428119 Kit: Powermax125 DSP board (141316)
4 428122 Kit: Powermax125 power board 400 V CE/380 V CCC (141207)
5 228880 Kit: Powermax105/125 power switch 400 V CE/380 V CCC/480 V, 600 V CSA
428114 Kit: Powermax125 component barrier
J22 J21 J20 J19
J27
WORK
LEAD
J26
J25
+
_
+
_
RED
J18
ORG
J17
J32
J11
J28
TP7
TP9
TP8
W
R
B
1
2
3
4
5
